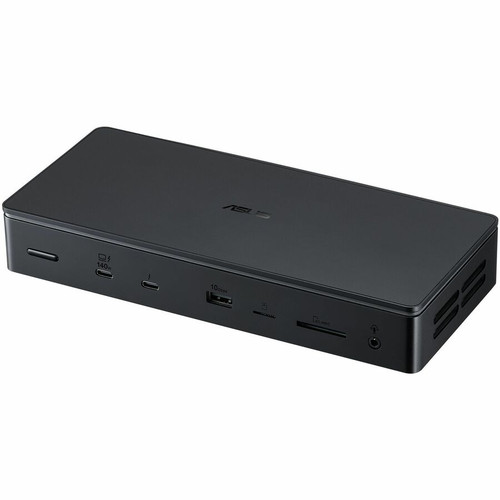

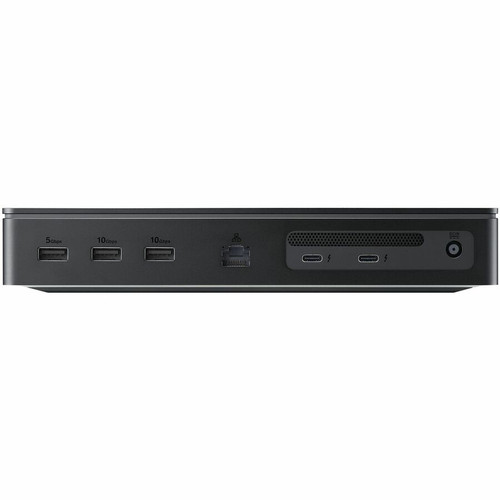

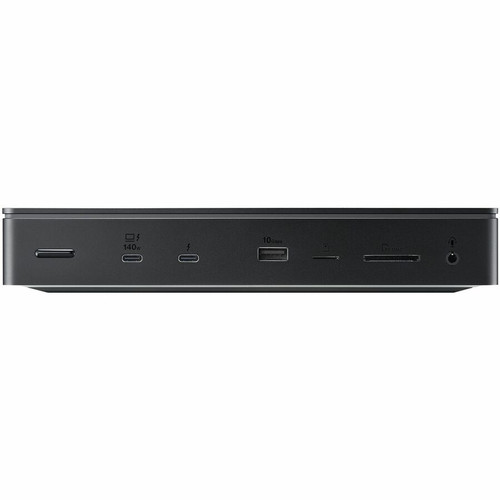

Asus Master Thunderbolt 5 Dock DC510 - for Notebook, Solid State Drive, Camera, Display Screen, Monitor, Keyboard, Mouse, Mobile - - - (90XB09NN-BDS000)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Master Thunderbolt 5 Dock DC510
- 180W Adapter
- Power Cord
- User Manual
- Warranty Card
Connectivity Technology: Wired
Charging Capability: Yes
Number of Displays Supported: 3
Supported Resolutions: 3840 x 2160,7680 x 4320
Screen Mode Supported: 4K @ 144Hz,4K,8K,8K @ 60Hz
Memory Card Reader: Yes
Memory Card Supported: SD,microSD
Device Supported: Notebook,Solid State Drive,Camera,Display Screen,Monitor,Keyboard,Mouse,Mobile Device
Ethernet Technology: 2.5 Gigabit Ethernet
Host Interface: Thunderbolt 5
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 1
Number of USB 3.2 Gen 2 Type-A Ports: 3
Number of USB Type-A Ports: 4
USB Type-A: Yes
Number of RJ-45 Ports: 1
Network (RJ-45): Yes
Headphone/Microphone Combo Port: Yes
Thunderbolt: Yes
Thunderbolt Ports Quantity: 3
USB Power Delivery: 140W
Operating System Supported: Windows 10,macOS
Maximum Power Supply Wattage: 180 W
Product Color: Black
Height: 8.66" (220 mm)
Width: 3.81" (96.70 mm)
Depth: 1.50" (38.10 mm)
Weight (Approximate): 1.69 lb (765 g)
Package Contents:
Kensington Security Slot: Yes
Compatibility:
ASUS ExpertBook series Notebook
[custom-specifications]
| Specifications | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | 90XB09NN-BDS000 |
| Manufacturer Website Address | http://www.asus.com |
| Brand Name | Asus |
| Product Model | DC510 |
| Product Name | Master Thunderbolt 5 Dock DC510 |
| Product Type | Docking Station |
| Technical Information | |
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Number of Displays Supported | 3 |
| Supported Resolutions | 3840 x 2160,7680 x 4320 |
| Screen Mode Supported | 4K @ 144Hz,4K,8K,8K @ 60Hz |
| Memory Card Reader | Yes |
| Memory Card Supported | SD,microSD |
| Device Supported | Notebook,Solid State Drive,Camera,Display Screen,Monitor,Keyboard,Mouse,Mobile Device |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Interfaces/Ports | |
| Host Interface | Thunderbolt 5 |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 1 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| Number of USB Type-A Ports | 4 |
| USB Type-A | Yes |
| Number of RJ-45 Ports | 1 |
| Network (RJ-45) | Yes |
| Headphone/Microphone Combo Port | Yes |
| Thunderbolt | Yes |
| Thunderbolt Ports Quantity | 3 |
| USB Power Delivery | 140W |
| Software | |
| Operating System Supported | Windows 10,macOS |
| Power Description | |
| Maximum Power Supply Wattage | 180 W |
| Physical Characteristics | |
| Product Color | Black |
| Height | 8.66" (220 mm) |
| Width | 3.81" (96.70 mm) |
| Depth | 1.50" (38.10 mm) |
| Weight (Approximate) | 1.69 lb (765 g) |
| Miscellaneous | |
| Package Contents |
|
| Kensington Security Slot | Yes |
| Compatibility | ASUS ExpertBook series Notebook |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
