Asus MB169CK-P ZenScreen 15. 6" IPS Full HD Portable LED Monitor - 1920 x 1080 - 60Hz - 250cd/m² - USB-C - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ZenScreen MB169CK-P features an IPS panel with a 5 ms GTG response time, a 60 Hz refresh rate, and a brightness of 250 cd/m². The 800:1 native contrast ratio and 262k color support produce clear, sharp images suitable for document editing, presentations, and media consumption. Anti-glare coating reduces reflections, and the LED backlight ensures energy-efficient performance with a maximum power draw of just 7.64 W.
Connectivity includes one Mini HDMI input and two USB Type-C ports, supporting video and power delivery over a single cable when used with compatible devices. The monitor also includes HDCP support for protected content playback. Features such as ASUS SPLENDID Technology, Trace Free Technology, GamePlus, QuickFit, and Low Blue Light filters enhance usability across various workflows.
This section brings together practical product details such as Number of Screens, Screen Size Class, Viewable Screen Size, Maximum Resolution, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
The monitor supports landscape and portrait orientation via the kickstand. The tripod socket allows mounting on standard camera tripods for flexible positioning.
Key Product Advantages
This portable monitor offers several advantages for mobile professionals and multi-screen setups. Its lightweight, slim design makes it ideal for travel, while the USB-C connectivity reduces cable clutter by delivering both video and power through a single connection. The IPS panel ensures color accuracy from wide angles, and the anti-glare surface minimizes eye strain during extended use.
The 360° kickstand provides stable support in both landscape and portrait modes, enabling flexible workspace configurations.
ASUS Eye Care technology, including Flicker-Free and Low Blue Light filters, helps reduce eye fatigue during long sessions.
Energy Star and EPEAT Gold certifications confirm environmentally responsible design and low power consumption.
Deployment / Use Cases

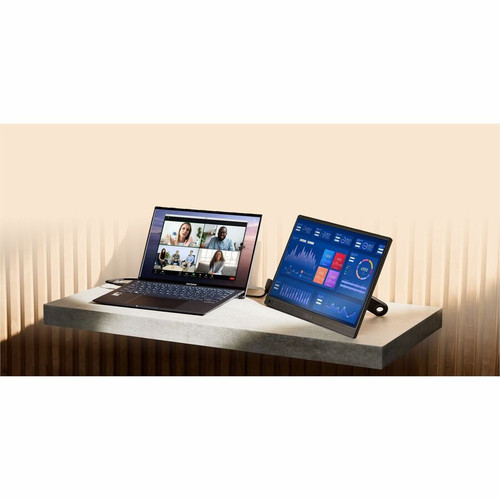

The Asus ZenScreen MB169CK-P is well-suited for mobile professionals who need an extra display for productivity on the go. It connects easily to laptops with USB-C or HDMI output, providing an instant dual-monitor setup without requiring an external power source (power delivered via USB-C).
Common use cases include extending the desktop for financial analysis, coding, or document comparison; serving as a portable presentation screen for client meetings; or as a secondary display for photographers and videographers reviewing media on location. The tripod mount also allows use in kiosks or digital signage applications where a lightweight display is required.
This section brings together practical product details such as Number of Screens, Screen Size Class, Viewable Screen Size, Maximum Resolution, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 8.90" (226 mm), 14.17" (360 mm), 0.47" (12 mm), 1.72 lb (780 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
Physical fit matters beyond raw measurements because it affects placement, airflow, cable routing, handling, and day-to-day service access. Buyers often review this section to reduce installation surprises and confirm whether the product will sit cleanly in the intended desk, shelf, rack, cabinet, or shared workspace.
- Width
- 14.17" (360 mm)
- Depth
- 0.47" (12 mm)
- Height
- 8.90" (226 mm)
- Weight
- 1.72 lb (780 g)
What's in the Box
The package includes the ZenScreen MB169CK-P monitor, a Mini HDMI to HDMI cable, a USB-C cable, a quick start guide, a warranty card, and a protective ZenScreen sleeve.
Highlights
- 15.6" IPS Full HD (1920 x 1080) portable LED monitor
- Ultra-slim design: 0.47" thin and 1.72 lb for easy portability
- USB-C and Mini HDMI inputs for flexible connectivity
- 250 cd/m² brightness and 800:1 contrast ratio for clear images
- 178° wide viewing angles ensure consistent colors from any position
- Built-in 360° kickstand supports landscape and portrait orientation
- Eye Care technology reduces eye strain with Flicker-Free and Low Blue Light
- Energy Star and EPEAT Gold certified for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | MB169CK-P |
| Brand Name | Asus |
| Product Line | ZenScreen |
| Product Model | MB169CK-P |
| Product Name | ZenScreen MB169CK-P Widescreen LED Monitor |
| Packaged Quantity | 1 / Pack |
| Product Type | LED Monitor |
| Technical Information | |
| Number of Screens | 1 |
| Screen Size Class | 16" |
| Viewable Screen Size | 15.6" |
| Screen Mode | Full HD |
| Panel Technology | In-plane Switching (IPS) Technology |
| Response Time | 5 ms |
| Response Time Details | 5 ms GTG |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 0.17900 mm x 0.17900 mm |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Backlight Technology | LED |
| Mount Type | Tripod |
| HDCP Supported | Yes |
| Features | Anti-glare,Flicker-free,Trace Free Technology,SPLENDID Technology,Color Temperature Selection,GamePlus,QuickFit,DisplayWidget Center,Low Blue Light,Tripod Socket,Portable,360° Kickstand,Ultra Slim,Eye-Care,Landscape/Portrait Viewable,Plug & Play,Eye Care Technology,On-screen Display (OSD) |
| Horizontal Frequency | 24 kHz to 83 kHz - USB Type C,24 kHz to 83 kHz - HDMI |
| Vertical Frequency | 50 Hz to 60 Hz - HDMI,50 Hz to 60 Hz - USB Type C |
| Adjustable Stand | No |
| Stand Adjustments | Tilt |
| Active Display Area (H x V) | 13.55" (344.10 mm) x 7.62" (193.50 mm) |
| Video | |
| Maximum Resolution | 1920 x 1080 |
| Standard Refresh Rate | 60 Hz |
| Color Supported | 262k |
| Native Contrast Ratio | 800:1 |
| Brightness | 250 cd/m² |
| Audio | |
| Speakers | No |
| Interfaces/Ports | |
| Mini HDMI | Yes |
| USB | Yes |
| USB Type-C | Yes |
| Total Number of Mini HDMI Ports | 1 |
| Number of USB Ports | 2 |
| Total Number of USB Type-C Ports | 2 |
| Power Description | |
| Maximum Power Consumption | 7.64 W |
| Physical Characteristics | |
| VESA Mount Compatible | No |
| Color Family | Black |
| Product Color | Black |
| Height | 8.90" (226 mm) |
| Width | 14.17" (360 mm) |
| Depth | 0.47" (12 mm) |
| Weight (Approximate) | 1.72 lb (780 g) |
| Miscellaneous | |
| Package Contents | ZenScreen MB169CK-P Widescreen LED Monitor Mini HDMI to HDMI Cable Quick Start Guide USB-C Cable Warranty Card ZenScreen Sleeve |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold) |
FAQ
What devices are compatible with the ZenScreen MB169CK-P?
The monitor works with any device that supports video output via USB-C with DisplayPort Alt Mode or Mini HDMI. This includes most modern laptops, tablets, and smartphones with USB-C video output. For devices with standard HDMI, an adapter may be needed.
Does the monitor require an external power source?
When connected via USB-C, the monitor can receive both video and power through the same cable, eliminating the need for a separate power adapter. Maximum power consumption is only 7.64 W. When using Mini HDMI, external power may be required via USB-C.
What display modes are supported?
The monitor supports a maximum resolution of 1920 x 1080 at 60 Hz. It can be set to extend or mirror your primary display. The included 360° kickstand allows use in both landscape and portrait orientations.
Is VESA mount compatible?
No, the monitor does not include a VESA mount. It features a tripod socket for mounting on standard camera tripods, providing flexibility for positioning without permanent installation.
Does the monitor have built-in speakers?
No, the ZenScreen MB169CK-P does not include built-in speakers. Audio must be output through the connected device.
What is included in the box?
The package includes the ZenScreen MB169CK-P monitor, a Mini HDMI to HDMI cable, a USB-C cable, a quick start guide, a warranty card, and a protective ZenScreen sleeve for travel.
What screen size is listed?
It features a display specification of 16", giving you clear visuals for work and media use.
What resolution or display format is specified?
It features a display specification of 1920 x 1080, giving you clear visuals for work and media use.
