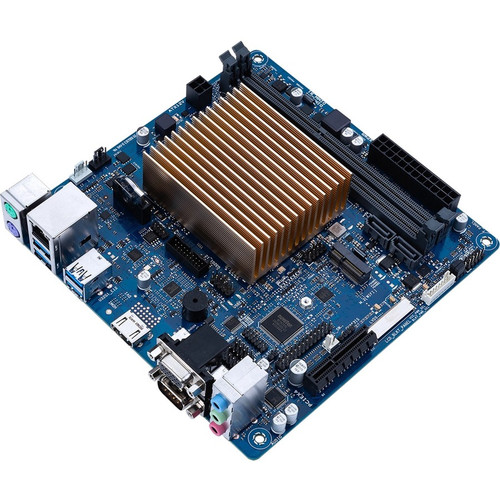

Asus Mini ITX Desktop Motherboard Intel Chipset Socket BGA-1296 Celeron Support For Up To 8 GB DDR3L SDRAM Maximum RAM J3455I-CM-A
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Fan-less mini-ITX Industrial MB with Intel Celeron® J3455 processors
- Supports 3 displays configuration by multiple interface: HDMI/ VGA /LVDS
- 4-year longevity supply with EOL and Last Buy Notice
- Advanced I/O and connectivity features
- Wide temperature range endurance: 0-50°C
- J3455I-CM-A Desktop Motherboard
- 1 x IO shield
- 1 x SATA 6G CABLE
- 1 x M.2 screw pack
Marketing Information:
Low-power, fan-less mini-ITX motherboard for Intel Celeron® Quad-Core J3455 processors, 2 x U-DIMM slots, VGA, HDMI, LVDS, M.2 E Key, 2 x COM.
ASUS J3455I-CM-A is an Industrial MB with stable and reliable performance. J3455I-CM-A includes dual COM ports, M.2 E Key slot, PCIe2.0 x 4, parallel header and supports multi graphic interface: HDMI/VGA/LVDS. J3455I-CM-A is designed for long-lasting stability and reliability in embedded application.
As the world's No.1 motherboard brand, ASUS offers MBs and SBCs with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket BGA-1296
Integrated Processor Type: Celeron
Integrated Processor Model: J3455
Integrated Processor Speed: 1.50 GHz
Integrated Processor Core: Quad-core (4 Core)
Number of Memory Slots: 2
Memory Form Factor: DIMM,UDIMM
Maximum Memory Supported: 8 GB
Memory Speed Supported: 1866 MHz,1600 MHz,1333 MHz
Memory Technology: DDR3L SDRAM
Controller Type: Serial ATA/600
Onboard Video: On-board Video Chipset
Graphics Controller Model: HD Graphics 500
Audio Channels: 7.1
Gigabit Ethernet: Yes
Total Number of Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x4 Slots: 1
Total Number of USB Ports: 4
Number of USB 3.2 Ports: 4
VGA: Yes
HDMI: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 2
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 2
Form Factor: Mini ITX
Width: 6.69" (170 mm)
Depth: 6.69" (170 mm)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Limited Warranty: 2 Year
- DDR3L SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- Mini ITX form factor builds a perfect symmetry of hardware components needed in media server or NAS box
[custom-specifications]
| Specifications | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | J3455I-CM-A |
| Manufacturer Website Address | http://www.asus.com |
| Brand Name | Asus |
| Product Model | J3455I-CM-A |
| Product Name | J3455I-CM-A Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 1 |
| Processor Socket | Socket BGA-1296 |
| Integrated Processor | |
| Integrated Processor Type | Celeron |
| Integrated Processor Model | J3455 |
| Integrated Processor Speed | 1.50 GHz |
| Integrated Processor Core | Quad-core (4 Core) |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 8 GB |
| Memory Speed Supported | 1866 MHz,1600 MHz,1333 MHz |
| Memory Technology | DDR3L SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Model | HD Graphics 500 |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Total Number of PCI Express Slots | 1 |
| Number of PCI Express x4 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Ports | 4 |
| VGA | Yes |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 2 |
| Number of M.2 Interfaces | 1 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of Onboard USB 3.2 Ports | 2 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.69" (170 mm) |
| Depth | 6.69" (170 mm) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
