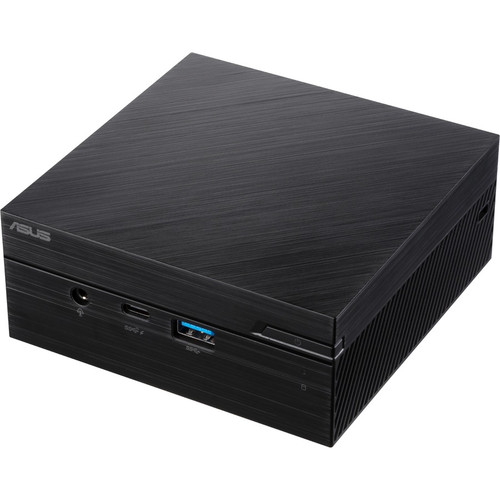

Asus PN61-B5097ZD Mini PC - Intel Core i5-8265U 8th Gen - 8GB DDR4256GB M. 2 SSD - Windows 10 Pro - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the PN61-B5097ZD is Intel's Core i5-8265U processor, a quad-core CPU from the 8th generation family with efficient power consumption suitable for compact form factors. The system utilizes DDR4 SDRAM technology with 8GB installed, supporting Intel Optane memory for potential storage acceleration when paired with compatible modules.
Storage is handled by a single 256GB M.2 solid-state drive, providing fast boot times and application loading while minimizing noise and power draw compared to traditional hard drives. Graphics are powered by Intel's HD Graphics 620 with shared DDR4 memory, capable of driving two displays simultaneously at 4K UHD resolution through HDMI or DisplayPort connections.

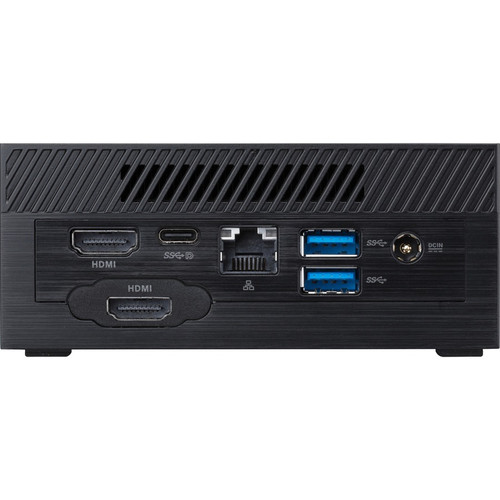

Connectivity includes comprehensive wireless and wired options with 802.11ac WiFi and Bluetooth 5.0 for peripheral connections. The port selection features five USB ports total, including two USB 3.1 Gen2 Type-C ports with battery charging support and three USB 3.1 Gen1 ports for legacy devices.
Key Product Advantages
The PN61-B5097ZD combines desktop performance with ultra-compact dimensions, making it ideal for environments where space is at a premium. The Mini PC form factor allows deployment in retail kiosks, digital signage applications, or crowded office workstations without sacrificing computing capability.
Dual 4K Display Support
Drive two independent 4K UHD monitors simultaneously using HDMI or DisplayPort connections, with DisplayPort over USB Type-C providing additional flexibility for modern displays.
- HD Graphics 620 with shared DDR4 memory
- Supports business multi-monitor setups
- DisplayPort over USB-C capability
Comprehensive Connectivity
Modern USB-C ports with charging support alongside traditional USB 3.1 ports, plus 802.11ac WiFi and Bluetooth 5.0 for wireless peripherals and network access.
- Two USB 3.1 Gen2 Type-C ports
- 802.11ac WiFi for fast wireless
- Bluetooth 5.0 for accessories
Business Management Features
ASUS Business Manager provides centralized system management tools, while Windows 10 Pro offers enhanced security policies and remote management capabilities for IT administration.
- One-click system management
- Windows 10 Pro security features
- 24/7 reliability testing
Deployment / Use Cases
This Mini PC excels in business environments where space optimization is critical. Its compact dimensions and VESA mounting capability make it suitable for mounting behind monitors in call centers, financial trading desks, or healthcare administration stations, reducing desktop clutter while maintaining full computing functionality.
The system's dual 4K display support and responsive SSD storage make it effective for digital signage applications, point-of-sale systems, or thin client replacements where reliable performance in constrained spaces is required. The 802.11ac WiFi and Bluetooth 5.0 connectivity support wireless peripherals and network access in flexible office layouts.
With Windows 10 Pro pre-installed, the PN61-B5097ZD integrates seamlessly into business domains, supporting group policies, remote management, and enhanced security features. The energy-efficient design and Energy Star certification reduce operational costs in always-on deployments.
Space-Constrained Office Workstations
Replace bulky desktop towers with this compact Mini PC that delivers full computing performance while freeing up valuable desk real estate in crowded office environments.
Digital Signage & Kiosk Systems
The small form factor and VESA mounting make this system ideal for behind-display installation in retail digital signage, information kiosks, or interactive displays.
Localization and Operating System
The Asus PN61-B5097ZD Mini PC comes pre-installed with Windows 10 Pro, providing a full-featured operating system optimized for business environments. Windows 10 Pro includes enhanced security features such as BitLocker encryption, Windows Defender Advanced Threat Protection, and support for remote desktop connections, making this system suitable for managed IT deployments where data protection and administrative control are priorities.
This configuration ships with the standard English language version of Windows 10 Pro, supporting standard US keyboard layouts and regional settings. The operating system is fully licensed and activated, ready for immediate use out of the box without requiring additional software purchases for basic business functionality.
For international deployments, Windows 10 Pro supports multiple language packs that can be added through Windows Update, allowing localization to various regions while maintaining the core business security and management features. The system's hardware compatibility ensures smooth operation with Windows 10 Pro's regular security updates and feature enhancements, providing long-term reliability for business-critical applications.
Physical Profile
The PN61-B5097ZD measures just 1.93 inches in height, 4.53 inches in width, and 4.53 inches in depth, with a weight of approximately 1.36 kilograms. This ultra-compact form factor allows placement in locations where traditional desktops cannot fit, including mounted behind monitors, under desks, or in enclosed kiosk systems.
The black chassis features a professional appearance suitable for business environments, with a security slot for cable lock attachment to prevent theft. The included VESA mount kit enables secure attachment to monitor arms or wall mounts, further optimizing space utilization in multi-system deployments.
- Width
- 4.53" (115.06 mm)
- Depth
- 4.53" (115.06 mm)
- Height
- 1.93" (49.02 mm)
- Weight
- 1.36 kg
What's in the Box
The package includes all components needed for immediate deployment of the Mini PC system.
Highlights
- Intel Core i5-8265U 8th generation quad-core processor
- 8GB DDR4 SDRAM with Intel Optane memory readiness
- 256GB M.2 solid-state drive for fast system responsiveness
- Intel HD Graphics 620 with dual 4K UHD display support
- 802.11ac WiFi and Bluetooth 5.0 wireless connectivity
- Two USB 3.1 Gen2 Type-C ports with charging support
- Windows 10 Pro operating system pre-installed
- Ultra-compact Mini PC form factor (1.93" x 4.53" x 4.53")
- VESA mount kit included for flexible installation
- Energy Star certified and RoHS compliant design
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PN61-B5097ZD |
| Brand Name | Asus |
| Product Series | PN61 |
| Product Model | PN61-B5097ZD |
| Product Name | PN61-B5097ZD Desktop Computer |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i5 |
| Processor Generation | 8th Gen |
| Processor Model | i5-8265U |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | DDR4 SDRAM |
| Intel Optane Memory Ready | Yes |
| Storage | |
| Total Solid State Drive Capacity | 256 GB |
| Solid State Drive Configuration | 1 x 256GB M.2 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | HD Graphics 620 |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ac |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Total Number of USB Ports | 5 |
| Number of USB 3.1 Gen 1 Ports (Front) | 1 |
| Number of USB 3.1 Gen 1 Ports (Rear) | 2 |
| USB Type-C (Front) | Yes |
| USB Type-C (Rear) | Yes |
| USB Type-C Detail | 1 x USB 3.1 Gen2 Type-C(Support Battery Charging 1.2), 1 x USB 3.1 Gen2 Type-C(Support Battery Charging 1.2) |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 10 Pro |
| Power Description | |
| Maximum Power Supply Wattage | 65 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mini PC |
| Height | 1.93" (49.02 mm) |
| Width | 4.53" (115.06 mm) |
| Depth | 4.53" (115.06 mm) |
| Weight (Approximate) | 1.36 kg |
| Miscellaneous | |
| Package Contents | PN61-B5097ZD Desktop Computer Power Adapter Warranty Card Quick Start Guide VESA Mount Kit |
| Features | Security Slot |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What processor is listed for this desktop or workstation?
This product uses the Core i5 processor for everyday performance and multitasking.
How many cores are listed?
At the core of the PN61-B5097ZD is Intel's Core i5-8265U processor, a quad-core CPU from the 8th generation family with efficient power consumption suitable for compact form factors. The system utilizes DDR4 SDRAM technology with 8GB installed, supporting Intel Optane memory for potential storage acceleration when paired with compatible modules. Storage is handled by a single 256GB M.2 solid-state drive, providing fast boot times and application loading while minimizing noise and power draw compared to traditional hard drives. Graphics are powered by Intel's HD Graphics 620 with shared DDR4 memory, capable of driving two displays simultaneously at 4K UHD resolution through HDMI or DisplayPort connections.
How much memory is installed?
It includes 8 GB of memory to support responsive multitasking and daily workloads.
What storage configuration is listed?
The system includes 256 GB of storage for applications, files, and everyday business data.
What available ports or connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
What operating system or platform detail is listed?
The included operating environment is Windows, which helps position the product for software compatibility, deployment planning, and day-to-day business use.
What form factor or chassis style is listed?
The listed physical configuration is Mini PC, which helps buyers judge placement, comfort, or installation fit in the intended environment.
