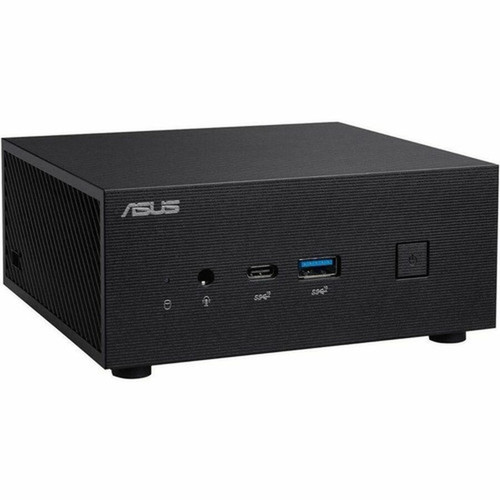

Asus PN63-S1-BB5G000X1TD-NL Barebone Mini PC - Intel Core i5-1135G7 Quad-Core - 64GB DDR4 - 2. 5GbE - Windows 11 Pro Support
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of this system is Intel's Core i5-1135G7 processor, featuring four cores with a base clock of 2.40 GHz and turbo boost capability up to 4.20 GHz. The processor utilizes Socket BGA-1449 and includes Intel Iris Xe Graphics with shared DDR4 memory, providing capable integrated graphics for business applications and multimedia tasks.
The platform supports up to 64 GB of DDR4-3200 memory across two available slots, offering flexibility for memory-intensive applications. Storage connectivity includes both NVMe and SATA/600 interfaces, with two M.2 slots available for high-speed NVMe SSDs and one SATA interface for traditional storage devices.
Relevant factors for this section include Number of Processors Installed, Processor Socket, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This barebone mini PC combines modern processor architecture with versatile connectivity in a space-efficient package. The 11th generation Intel Core i5 processor delivers improved power efficiency while maintaining responsive performance for everyday computing tasks, business applications, and light multimedia workloads.
Compact Deployment Ready
The mini PC form factor enables installation in environments where traditional desktops won't fit, including behind monitors, under desks, or in wall-mounted configurations.
- 2.28" height profile
- 1.65 lb lightweight design
- Black professional finish
Modern Connectivity Suite
Comprehensive I/O includes 2.5 Gigabit Ethernet for faster network transfers, multiple USB 3.2 Gen 2 ports, and both HDMI and Mini DisplayPort outputs for flexible display configurations.
- 2.5GbE network interface
- USB-C front port
- Dual video output support
Deployment / Use Cases
The PN63-S1 barebone system serves as an ideal foundation for compact computing solutions across various environments. Its small footprint and capable specifications make it suitable for digital signage controllers, point-of-sale systems, thin client replacements, and space-constrained office workstations.
Businesses can deploy these systems as dedicated application servers, conference room computers, or reception area terminals where discreet hardware is preferred. The barebone approach allows IT departments to configure memory and storage precisely to match application requirements while maintaining consistent hardware platforms across deployments.
Office Productivity Station
Configure with adequate memory and storage to create a responsive workstation for office applications, web browsing, and video conferencing in compact workspaces.
Digital Signage Controller
The small form factor and capable graphics make this system suitable for driving digital displays in retail, hospitality, or corporate environments.
Physical Profile
The compact chassis measures 4.72" (120 mm) wide by 5.12" (130 mm) deep by 2.28" (58 mm) high, with a weight of approximately 1.65 lb (750 g). The black finish provides a professional appearance suitable for business environments, while the mini PC form factor enables versatile mounting options including VESA mount compatibility for display attachment.
Despite its small size, the chassis includes adequate ventilation and thermal management for the 90W TDP processor, ensuring reliable operation in continuous-use scenarios. The dimensions make this system approximately one-tenth the volume of a typical mid-tower desktop, offering significant space savings in deployment.
- Width
- 4.72" (120 mm)
- Depth
- 5.12" (130 mm)
- Height
- 2.28" (58 mm)
- Weight
- 1.65 lb (750 g)
What's in the Box
The package includes the PN63-S1-BB5G000X1TD-NL barebone system chassis with installed processor and motherboard, plus a power adapter for system operation.
Package contents include PN63-S1-BB5G000X1TD-NL Barebone System, 1 x Power Adapter. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Core i5-1135G7 quad-core processor (11th Gen) with 2.40 GHz base, 4.20 GHz turbo
- Supports up to 64 GB DDR4-3200 memory across two available slots
- 2.5 Gigabit Ethernet provides faster network connectivity than standard Gigabit
- Multiple USB 3.2 Gen 2 ports including front USB-C for modern peripherals
- Compact mini PC form factor: 4.72" x 5.12" x 2.28" (120 x 130 x 58 mm)
- Windows 11 Pro, Windows 11 Home, and Windows 10 Pro operating system support
- NVMe and SATA/600 storage interfaces with two M.2 slots available
- HDMI and Mini DisplayPort outputs for dual display configurations
- Energy Star certified with EPEAT Silver environmental rating
- Black professional finish suitable for business environments
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PN63-S1-BB5G000X1TD-NL |
| Brand Name | Asus |
| Product Series | PN63-S1 |
| Product Model | PN63-S1-BB5G000X1TD-NL |
| Product Name | PN63-S1-BB5G000X1TD-NL Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Installed | 1 |
| Processor Socket | Socket BGA-1449 |
| Processor Type | Core i5 |
| Processor Generation | 11th Gen |
| Processor Model | i5-1135G7 |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 2.40 GHz |
| Maximum Turbo Speed | 4.20 GHz |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | NVMe,Serial ATA/600 |
| Display & Graphics | |
| Graphics Controller Model | Iris Xe Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1 x USB 3.2 Gen2 Type-C |
| Network (RJ-45) | Yes |
| Number of SATA Interfaces | 1 |
| Mini DisplayPort | Yes |
| Operating System | |
| Operating System Supported | Windows 11 Pro,Windows 11 Home,Windows 10 Pro |
| Power Description | |
| Thermal Design Power | 90 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mini PC |
| Height | 2.28" (58 mm) |
| Width | 4.72" (120 mm) |
| Depth | 5.12" (130 mm) |
| Weight (Approximate) | 1.65 lb (750 g) |
| Miscellaneous | |
| Package Contents | PN63-S1-BB5G000X1TD-NL Barebone System 1 x Power Adapter |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Silver (EPEAT Silver) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
User Manual
FAQ
What processor is included in this barebone system?
This system includes an Intel Core i5-1135G7 processor from the 11th generation. It features four cores with a base clock speed of 2.40 GHz and maximum turbo frequency of 4.20 GHz. The processor utilizes Intel's 10nm SuperFin technology for improved power efficiency and includes integrated Iris Xe Graphics for display output without requiring a separate graphics card.
How much memory can I install in this mini PC?
The PN63-S1 barebone system supports up to 64 GB of DDR4-3200 memory across two available memory slots. This allows configuration with two 32 GB modules for maximum capacity or smaller modules for more budget-conscious builds. The system uses standard SO-DIMM memory modules commonly found in laptops and compact systems.
What storage options does this system support?
This barebone system supports both NVMe and SATA storage interfaces. It includes two M.2 slots for NVMe SSDs, which provide significantly faster data transfer speeds than traditional drives, plus one SATA/600 interface for 2.5" or 3.5" hard drives or SSDs. The controller supports both interface types simultaneously for flexible storage configurations.
What operating systems are compatible with this hardware?
The system hardware is compatible with Windows 11 Pro, Windows 11 Home, and Windows 10 Pro operating systems. As a barebone system, no operating system is pre-installed, allowing you to install your preferred version. The specifications meet Windows 11 requirements, ensuring full compatibility with Microsoft's latest operating system features and security enhancements.
What connectivity options does this mini PC offer?
Connectivity includes 2.5 Gigabit Ethernet for network connections, four USB ports (three USB 3.2 Gen 2 and one USB 3.2 Gen2 Type-C on the front), HDMI and Mini DisplayPort for video output, and internal expansion including two M.2 slots and one SATA interface. The 2.5GbE provides 2.5 times the bandwidth of standard Gigabit Ethernet for faster file transfers.
How compact is this barebone system, and where can it be deployed?
The system measures 4.72" wide by 5.12" deep by 2.28" high (120 x 130 x 58 mm) and weighs approximately 1.65 lb (750 g). This compact form factor makes it suitable for space-constrained environments including behind monitors, under desks, in wall-mounted configurations, or as part of digital signage installations. The black professional finish blends well in office environments.
