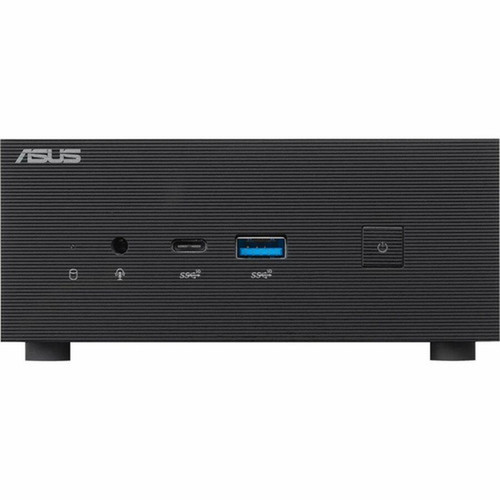

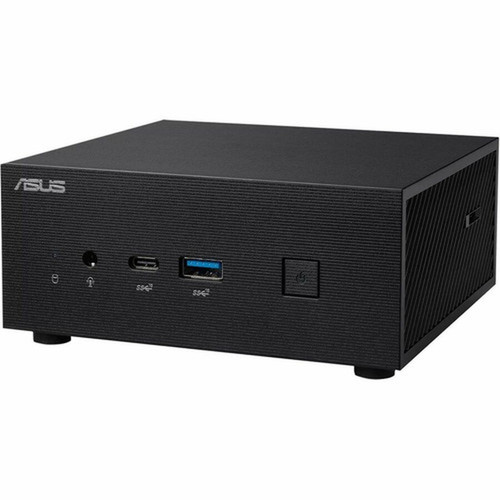

Asus PN63-S1-BB7H000XFD-NL Mini PC Barebone System - Intel Core i7-11370H Quad-core 3. 3GHz - 64GB DDR4 - WiFi 6 - Windows 11 Pro Support
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of this barebone system is the Intel Core i7-11370H processor featuring four cores, eight threads, and Intel Iris Xe Graphics. The processor operates at a 3.30GHz base frequency with thermal design power of 35W, supported by Intel's Socket BGA-1449 platform. Memory configuration includes two DDR4-3200 slots supporting dual-channel operation and Intel Optane memory acceleration.
Storage flexibility comes from two M.2 interfaces supporting NVMe drives and one SATA port for traditional storage devices. The integrated Intel Iris Xe Graphics provides capable visual performance for business applications and multimedia content, with graphics memory shared from system RAM.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Socket, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This Mini PC barebone system combines modern connectivity with compact dimensions, offering deployment versatility without compromising on performance. The inclusion of both 2.5 Gigabit Ethernet and WiFi 6 ensures reliable network connectivity whether wired or wireless deployment is preferred.
Modern Connectivity Suite
Features USB 3.2 Gen2 Type-C and Type-A ports alongside HDMI and Mini DisplayPort outputs, providing compatibility with contemporary peripherals and displays.
- 3 x USB 3.2 Gen2 ports
- 1 x USB 3.2 Gen2 Type-C
- HDMI and Mini DisplayPort
Energy Efficient Design
The 90W power supply and Energy Star certification contribute to reduced operational costs, while EPEAT Silver environmental certification demonstrates sustainable manufacturing practices.
- 90W maximum power
- Energy Star certified
- EPEAT Silver rating
Deployment / Use Cases
The compact footprint and versatile connectivity make this barebone system ideal for digital signage applications in retail environments, hospitality displays, or corporate lobby information kiosks. The Mini PC form factor allows for VESA mount installation behind monitors or discreet placement in confined spaces.
For office environments, the system serves well as a space-efficient workstation for general productivity applications, with Windows 11 Pro support ensuring compatibility with modern business software. The combination of wired and wireless networking options provides flexibility for different office layouts and connectivity requirements.
Digital Signage Platform
With its small dimensions and multiple display outputs, the system can drive single or dual displays for informational or promotional content in public spaces.
Compact Office Workstation
The Core i7 processor and memory expansion capabilities support everyday office productivity applications while occupying minimal desk or mounting space.
Physical Profile
The black chassis measures 2.28" in height, 4.72" in width, and 5.12" in depth, with a weight of approximately 1.65 pounds. This compact form factor enables installation in environments where traditional desktop systems would be impractical, such as mounted behind displays, within kiosk enclosures, or on wall brackets.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.28" (58 mm), 4.72" (120 mm), 5.12" (130 mm), 1.65 lb (750 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 4.72" (120 mm)
- Depth
- 5.12" (130 mm)
- Height
- 2.28" (58 mm)
- Weight
- 1.65 lb (750 g)
What's in the Box
The barebone system package includes the PN63-S1-BB7H000XFD-NL chassis with pre-installed motherboard and cooling solution, along with the necessary power adapter for operation.
Package contents include PN63-S1-BB7H000XFD-NL Barebone System Power Adapter, PN63-S1-BB7H000XFD-NL Barebone System. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Core i7-11370H processor with 11th Gen architecture and quad-core design
- Supports up to 64GB DDR4-3200 memory across two expansion slots
- Dual storage options with NVMe and SATA interfaces plus two M.2 slots
- Comprehensive connectivity including 2.5 Gigabit Ethernet and WiFi 6 (802.11ax)
- Multiple display outputs with HDMI and Mini DisplayPort support
- Compact Mini PC form factor measuring just 2.28" x 4.72" x 5.12"
- Windows 11 Pro, Windows 11 Home, and Windows 10 Pro operating system compatibility
- Energy Star certified with EPEAT Silver environmental rating
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PN63-S1-BB7H000XFD-NL |
| Brand Name | Asus |
| Product Series | PN63-S1 |
| Product Model | PN63-S1-BB7H000XFD-NL |
| Product Name | PN63-S1-BB7H000XFD-NL Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Socket | Socket BGA-1449 |
| Processor Supported | Core i7,Core i5,Core i3 |
| Processor Type | Core i7 |
| Processor Generation | 11th Gen |
| Processor Model | i7-11370H |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 3.30 GHz |
| Maximum Turbo Speed | 4.80 GHz |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 2 |
| Intel Optane Memory Ready | Yes |
| Controllers | |
| Controller Type | NVMe,Serial ATA/600 |
| Display & Graphics | |
| Graphics Controller Model | Iris Xe Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.0 |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1 x USB 3.2 Gen2 Type-C |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SATA Interfaces | 1 |
| Mini DisplayPort | Yes |
| Operating System | |
| Operating System Supported | Windows 11 Pro,Windows 11 Home,Windows 10 Pro |
| Power Description | |
| Maximum Power Supply Wattage | 90 W |
| Thermal Design Power | 35 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mini PC |
| Height | 2.28" (58 mm) |
| Width | 4.72" (120 mm) |
| Depth | 5.12" (130 mm) |
| Weight (Approximate) | 1.65 lb (750 g) |
| Miscellaneous | |
| Package Contents | PN63-S1-BB7H000XFD-NL Barebone System Power Adapter |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Silver (EPEAT Silver) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What processor is included with this barebone system?
The system includes an Intel Core i7-11370H processor from the 11th Generation family. This quad-core processor operates at a base frequency of 3.30GHz with Turbo Boost capability up to 4.80GHz, providing performance suitable for productivity applications and light multimedia workloads.
How much memory can this Mini PC support?
This barebone system supports up to 64GB of DDR4-3200 memory across two available slots. The dual-channel memory architecture supports Intel Optane memory acceleration for improved storage performance when compatible modules are installed.
What storage options are available with this system?
Storage expansion includes two M.2 interfaces supporting NVMe drives and one SATA port for traditional storage devices. The controller supports both NVMe and Serial ATA/600 interfaces, providing flexibility for SSD or HDD configurations based on performance and capacity requirements.
What networking capabilities does this Mini PC offer?
Networking features include 2.5 Gigabit Ethernet for wired connections and WiFi 6 (IEEE 802.11ax) for wireless connectivity. The system also includes Bluetooth 5.0 for peripheral connections, providing comprehensive networking options for different deployment scenarios.
What operating systems are compatible with this barebone system?
The system supports Windows 11 Pro, Windows 11 Home, and Windows 10 Pro operating systems. This compatibility ensures access to modern productivity features and security enhancements available in current Windows versions.
How compact is this Mini PC system?
The system measures 2.28 inches in height, 4.72 inches in width, and 5.12 inches in depth, with a weight of approximately 1.65 pounds. This compact form factor enables installation in space-constrained environments such as behind displays, within kiosks, or on wall mounts.
