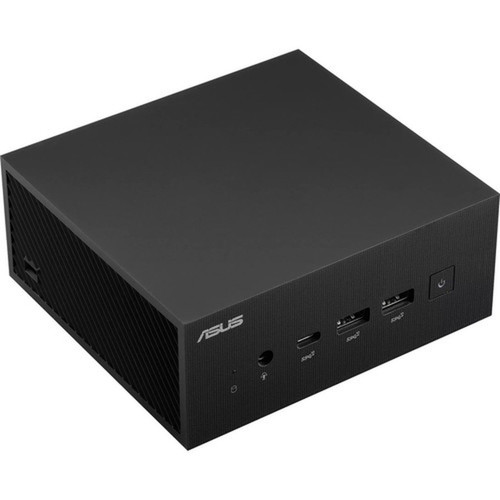

Asus PN64-BB5000X1TD-NL ExpertCenter Barebone System - Mini PC - Intel Core i5-12500H 12th Gen - 64 GB DDR5 - 2.5GbE - WiFi - Bluetooth
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of this barebone system is the Intel Core i5-12500H processor, a 12th Gen mobile CPU that operates at a base frequency of 2.50 GHz with turbo boost capability up to 4.50 GHz. This processor architecture provides efficient performance for everyday computing tasks while maintaining thermal efficiency within the compact enclosure.
The platform supports up to 64 GB of DDR5 memory across two available slots, utilizing DDR5-4800/PC5-38400 memory technology for improved bandwidth over previous generations. Graphics are handled through Intel integrated graphics with shared DDR5 system memory, sufficient for display output and basic graphical applications.
Relevant factors for this section include Processor Type, Processor Generation, Processor Model, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This barebone system combines modern computing architecture with exceptional space efficiency, making it suitable for deployments where physical size constraints are a primary consideration. The 12th Gen Intel processor delivers responsive performance for business applications while the DDR5 memory support ensures compatibility with current memory technology standards.
Compact Form Factor
The mini PC design measures just 2.28" x 4.72" x 5.12", allowing installation in locations where traditional desktop systems cannot fit. This compact footprint is ideal for wall-mounted displays, behind-monitor mounting, or integrated kiosk applications.
- VESA mount compatible
- Minimal desk footprint
- Discreet installation options
Modern Connectivity Suite
Comprehensive connectivity options include 2.5 Gigabit Ethernet for high-speed wired networking, dual-band wireless LAN for flexible placement, and Bluetooth for peripheral connections. The system features five USB ports including two USB 3.2 Gen2 Type-C ports for modern device compatibility.
- 2.5GbE Ethernet
- WiFi 6 ready
- Multiple USB 3.2 ports
Deployment / Use Cases
The ExpertCenter PN64 barebone system is engineered for versatile deployment scenarios where space optimization and reliable performance are equally important. Its compact dimensions and flexible mounting options make it suitable for integration into existing infrastructure without requiring significant physical reconfiguration.
Common deployment environments include digital signage installations where the system can be mounted directly behind displays, point-of-sale systems requiring reliable computing in limited space, and office workstations where desk real estate is at a premium. The barebone configuration allows IT administrators to specify memory, storage, and operating system components that match specific application requirements while maintaining consistent hardware platform management.
Digital Signage & Kiosk Applications
The compact form factor and reliable performance make this system ideal for digital signage deployments in retail, hospitality, or corporate environments. The system can drive multiple displays through its HDMI output while occupying minimal space behind mounted screens.
Space-Constrained Office Workstations
For office environments where desk space is limited, this mini PC provides full computing capability while occupying significantly less area than traditional desktop systems. The system can be mounted under desks or behind monitors to maximize usable workspace.
Physical Profile
The ExpertCenter PN64 features a compact mini PC form factor with dimensions of 2.28" in height, 4.72" in width, and 5.12" in depth. The Eco Black finish provides professional aesthetics suitable for business environments, with a design that supports VESA mounting for flexible installation options. The small footprint allows deployment in locations where traditional desktop systems cannot fit, making it ideal for integrated applications.
- Width
- 4.72" (120 mm)
- Depth
- 5.12" (130 mm)
- Height
- 2.28" (58 mm)
What's in the Box
This barebone system ships with the core components needed for system assembly and operation.
Package contents include ExpertCenter PN64-BB5000X1TD-NL Barebone System Power Adapter, ExpertCenter PN64-BB5000X1TD-NL Barebone System. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Core i5-12500H 12th Gen processor with 2.50 GHz base speed and 4.50 GHz turbo boost
- Supports up to 64 GB DDR5 memory across two available memory slots
- Compact mini PC form factor measuring just 2.28" x 4.72" x 5.12"
- 2.5 Gigabit Ethernet for high-speed wired network connectivity
- Dual-band wireless LAN and Bluetooth 5.0 for wireless connectivity
- Five USB ports including two USB 3.2 Gen2 Type-C ports
- HDMI output for display connectivity
- Single SATA interface for storage expansion
- 120W power supply included
- Energy Star certified and RoHS compliant
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PN64-BB5000X1TD-NL |
| Brand Name | Asus |
| Product Line | ExpertCenter |
| Product Series | PN64 |
| Product Model | PN64-BB5000X1TD-NL |
| Product Name | ExpertCenter PN64-BB5000X1TD-NL Barebone System |
| Product Type | Barebone System |
| Processor | |
| Processor Type | Core i5 |
| Processor Generation | 12th Gen |
| Processor Model | i5-12500H |
| Processor Speed | 2.50 GHz |
| Maximum Turbo Speed | 4.50 GHz |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Display & Graphics | |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C | Yes |
| USB Type-C Detail | 2 x USB 3.2 Gen2 Type-C |
| Number of SATA Interfaces | 1 |
| Power Description | |
| Maximum Power Supply Wattage | 120 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Eco Black |
| Form Factor | Mini PC |
| Height | 2.28" (58 mm) |
| Width | 4.72" (120 mm) |
| Depth | 5.12" (130 mm) |
| Miscellaneous | |
| Package Contents | ExpertCenter PN64-BB5000X1TD-NL Barebone System Power Adapter |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processor is included in this barebone system?
This system includes an Intel Core i5-12500H processor from the 12th Generation of Intel Core processors. This mobile processor operates at a base frequency of 2.50 GHz with maximum turbo frequency capability up to 4.50 GHz, providing efficient performance for business applications and everyday computing tasks within the compact thermal envelope of the mini PC form factor.
How much memory can this system support?
The ExpertCenter PN64 barebone system supports up to 64 GB of DDR5 memory across two available memory slots. The system utilizes DDR5-4800/PC5-38400 memory technology, which offers improved bandwidth and power efficiency compared to previous DDR4 memory standards. This memory capacity supports multitasking workloads and application requirements for most business computing scenarios.
What networking capabilities does this mini PC offer?
This system provides comprehensive networking options including 2.5 Gigabit Ethernet for high-speed wired connections, dual-band wireless LAN for WiFi connectivity, and Bluetooth for wireless peripheral connections. The 2.5GbE Ethernet offers faster network throughput than standard Gigabit Ethernet, supporting data-intensive applications and network transfers in business environments.
What are the physical dimensions of this barebone system?
The system measures 2.28 inches in height, 4.72 inches in width, and 5.12 inches in depth (58 mm x 120 mm x 130 mm). This compact mini PC form factor allows installation in space-constrained locations such as behind monitors, mounted to walls or stands, or integrated into kiosk enclosures where traditional desktop systems would not fit.
What connectivity ports are available on this system?
Connectivity includes five USB ports total, with three USB 3.2 Gen2 ports and two USB 3.2 Gen2 Type-C ports for modern device compatibility. The system also features HDMI output for display connectivity, a single SATA interface for storage expansion, and the necessary ports for Ethernet, wireless antennas, and power input. This port selection supports most business peripherals and display requirements.
What is included in the package with this barebone system?
The package includes the ExpertCenter PN64-BB5000X1TD-NL barebone system chassis with installed motherboard, processor, and cooling solution, along with a 120W power adapter. As a barebone configuration, memory, storage devices, and operating system are not included and must be added separately to complete the system based on specific application requirements.
