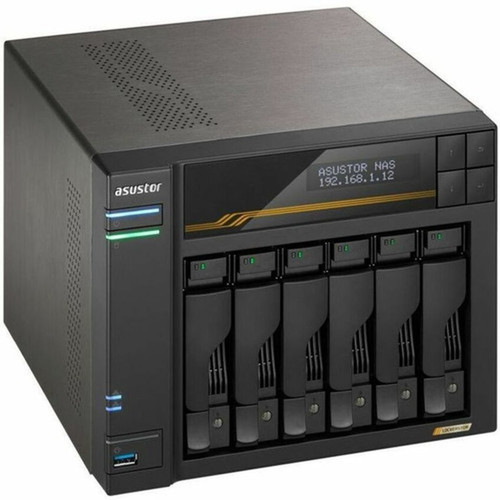

Asustor Lockerstor 6 Gen3 AS6806T 6 Bay NAS, AMD Ryzen Quad-Core 2.3 GHz, 16GB RAM ECC DDR5, 4 M.2 NVMe Slots, Dual 5GbE and Dual USB (AS6806T)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- LOCKERSTOR 6 Gen3 AS6806T SAN/NAS Storage System
- Quick Installation Guide
- 1 x AC Power Cord
- 4 x 10GbE LAN Cable(Cat 6a)
- 24 x Flat Head Screw (for 3.5" HDD)
- 24 x Flat Head Screw (for 2.5" HDD)
Number of Hard Drives Supported: 6
Number of Hard Drives Installed: 0
Number of Solid State Drive Supported: 6
Number of Solid State Drive Installed: 0
Flash Memory Capacity: 8 GB
Processor Type: Ryzen Embedded
Processor Model: V3C14
Processor Core: Quad-core (4 Core)
Processor Speed: 2.30 GHz
Standard Memory: 16 GB
Memory Technology: DDR5 SDRAM
Ethernet Technology: 10 Gigabit Ethernet,5 Gigabit Ethernet
Number of Total Expansion Bays: 6
Number of 2.5"/3.5" Bays: 6
Total Number of Expansion Slots: 1
Expansion Slot Type: PCI Express 4.0 x4
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, JBOD
Drive Interface: Serial ATA/600
Total Number of USB Ports: 5
Number of USB 3.2 Gen 2 Ports: 3
Number of USB4 Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 4
Operating System: ADM 5.0
Protocols: TCP/IP,SMTP,HTTPS,LDAP,SFTP,SSH,FTPS,AFP,RTSP,FTP,SMB 2.0,IPv4,WEBDAV,SSL,iSCSI,SNMP,TLS,HTTP,TFTP,NFS,UPnP,RSync,DDNS,CIFS/SMB,IPv6,SMB 3.0
Number of Power Supplies Installed: 1
Maximum Power Supply Wattage: 250 W
Height: 7.30" (185.50 mm)
Width: 9.17" (233 mm)
Depth: 9.06" (230 mm)
Form Factor: Desktop
Weight (Approximate): 10.14 lb (4600 g)
Package Contents:
Limited Warranty: 3 Year
- Through RAID levels (0, 1, 5, 6, 10, jbod), RAID provides data reliability, fault tolerance and improves overall performance
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
[custom-specifications]
| Specifications | |
| Manufacturer | ASUSTOR |
| Manufacturer Part Number | AS6806T |
| Manufacturer Website Address | http://www.asustor.com |
| Brand Name | ASUSTOR |
| Product Line | LOCKERSTOR 6 Gen3 |
| Product Model | AS6806T |
| Product Name | LOCKERSTOR 6 Gen3 AS6806T SAN/NAS Storage System |
| Packaged Quantity | 1 |
| Product Type | SAN/NAS Storage System |
| Storage | |
| Number of Hard Drives Supported | 6 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 6 |
| Number of Solid State Drive Installed | 0 |
| Flash Memory Capacity | 8 GB |
| Processor & Chipset | |
| Processor Type | Ryzen Embedded |
| Processor Model | V3C14 |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 2.30 GHz |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet,5 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 6 |
| Number of 2.5"/3.5" Bays | 6 |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | PCI Express 4.0 x4 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, JBOD |
| Interfaces/Ports | |
| Drive Interface | Serial ATA/600 |
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| Number of USB4 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Software | |
| Operating System | ADM 5.0 |
| Management & Protocols | |
| Protocols | TCP/IP,SMTP,HTTPS,LDAP,SFTP,SSH,FTPS,AFP,RTSP,FTP,SMB 2.0,IPv4,WEBDAV,SSL,iSCSI,SNMP,TLS,HTTP,TFTP,NFS,UPnP,RSync,DDNS,CIFS/SMB,IPv6,SMB 3.0 |
| Power Description | |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 250 W |
| Physical Characteristics | |
| Height | 7.30" (185.50 mm) |
| Width | 9.17" (233 mm) |
| Depth | 9.06" (230 mm) |
| Form Factor | Desktop |
| Weight (Approximate) | 10.14 lb (4600 g) |
| Miscellaneous | |
| Package Contents |
|
| Warranty | |
| Limited Warranty | 3 Year |
