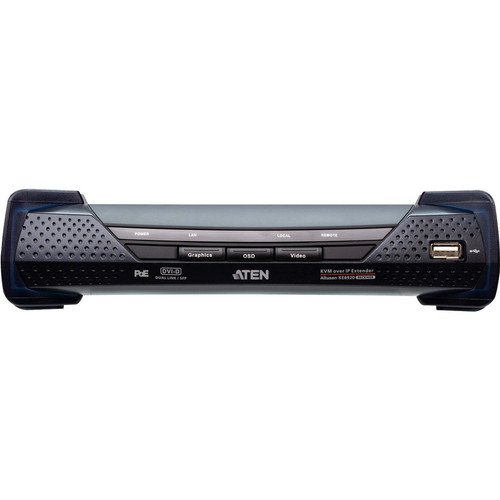

ATEN 2K DVI-D Dual-Link KVM Over IP Receiver With SFP And Power Ethernet For Extended Reach Local Range User PoE Ft Mm S X KE6922R
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 2K DVI-D Dual-Link KVM over IP Receiver with Dual SFP & PoE
- 1 x User Instructions
Connectivity Technology: Wired
Number of Local Users Supported: 1
Maximum Operating Distance: 32808.40 ft (10000000 mm)
Device Type: KVM Extender
Graphic Mode: 2K
Maximum Video Resolution: 2560 x 2048
Network (RJ-45): Yes
USB: Yes
DVI: Yes
Number of Network (RJ-45) Ports: 1
Number of USB Ports: 4
Number of DVI Ports: 1
Power Consumption: 8.86 W
Form Factor: Desktop,Rack-mountable
Receiver Height: 2.16" (54.80 mm)
Receiver Width: 6.76" (171.60 mm)
Receiver Depth: 8.96" (227.50 mm)
Receiver Weight (Approximate): 1.30 kg
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),China Restriction of Hazardous Substances (China RoHS)
- Supports 2K x 2K video resolution (2048 x 2048 @ 60Hz)
- Adaptive Fast Switching - switches automatically and immediately between different Tx video resolutions on a Rx display (within 0.3 seconds)
- Boundless Switching - simply move the mouse cursor across screen boundaries to switch between different receivers (Rx)
- "Push"and"Pull"- shares content instantly to/from a single Rx or video wall by just one click
- Authentication Lock - automatically logs in when the power of the system is resumed after power off
- Connection Redundancy - automatically connects to another transmitter (Tx) after disconnection with the original Tx, ensuring constant access to servers
- Disconnection Alert - Pop-up warning message and looping alarm beeping notify users the disconnection status
- Supports power/network failover - KE6922 has 2 DC jacks for power redundancy while 1 RJ45 & 2 SFP fiber ports for network failover to ensure constant availability for mission-critical applications
- Video Walls - create multiple video walls with up to 8 x 8 (64 displays max.) in each layout
- Advanced Scheduling - improves efficiency and saves costs by allowing connections to be set based on time and date
[custom-specifications]
| Specifications | |
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | KE6922R |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Brand Name | ATEN |
| Product Line | ALTUSEN |
| Product Model | KE6922R |
| Product Name | 2K DVI-D Dual-Link KVM over IP Receiver with Dual SFP & PoE |
| Packaged Quantity | 1 |
| Product Type | KVM Extender Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Local Users Supported | 1 |
| Maximum Operating Distance | 32808.40 ft (10000000 mm) |
| Device Type | KVM Extender |
| Video | |
| Graphic Mode | 2K |
| Maximum Video Resolution | 2560 x 2048 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| DVI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 4 |
| Number of DVI Ports | 1 |
| Power Description | |
| Power Consumption | 8.86 W |
| Physical Characteristics | |
| Form Factor | Desktop,Rack-mountable |
| Receiver Height | 2.16" (54.80 mm) |
| Receiver Width | 6.76" (171.60 mm) |
| Receiver Depth | 8.96" (227.50 mm) |
| Receiver Weight (Approximate) | 1.30 kg |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),China Restriction of Hazardous Substances (China RoHS) |
