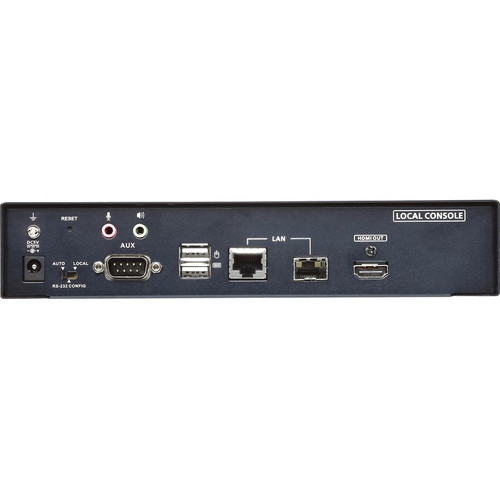

Aten KE8950T 4K HDMI KVM over IP Transmitter - Single Display - 1 Computer - 1 Local User - 3840 x 2160 - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVM over IP transmitter supports a single computer and one local user, utilizing wired connectivity for stable, low-latency performance. The video capability delivers 4K graphic mode at a maximum resolution of 3840 x 2160, ensuring high-definition display quality for monitoring, administration, or multimedia applications.
Connectivity is comprehensive, with two HDMI ports, two network RJ-45 ports, and three USB ports, alongside dedicated headphone and microphone interfaces. Power is supplied via 5 V DC input with a consumption of 7.22 W, making it energy-efficient for continuous operation.
This section brings together practical product details such as Connectivity Technology, Number of Computers Supported, Number of Local Users Supported, Graphic Mode, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The KE8950T excels in extending high-resolution KVM signals over IP networks, offering flexibility and reliability for remote management scenarios. Its 4K video support ensures that detailed graphics and text remain sharp, which is critical for technical monitoring, security surveillance, or design workstations.
High-Definition Video
Delivers 4K Ultra HD at 3840 x 2160 resolution, providing clear and vibrant visuals for demanding applications.
- 4K graphic mode
- 3840 x 2160 maximum resolution
Comprehensive Connectivity
Includes multiple HDMI, network, and USB ports, plus audio interfaces, for versatile device integration.
- 2 HDMI ports
- 2 network RJ-45 ports
- 3 USB ports
Rack-Ready Design
Features a rack-mountable form factor with compact dimensions, ideal for organized installation in server racks or enclosures.
- Rack-mountable
- Compact footprint
Deployment / Use Cases
The ATEN KE8950T transmitter is ideal for environments where remote access to a computer is required without compromising on video quality. It enables centralized control from a single user station, reducing the need for physical proximity to the source device.
Common use cases include data center server management, where administrators can monitor and control servers from a dedicated console; digital signage control, allowing remote updates and playback management; and security operations centers, providing high-resolution video feeds for surveillance monitoring. Its rack-mount design makes it suitable for integration into standard 19-inch racks, supporting tidy cable management and efficient space utilization.
Data Center Management
Enables remote KVM access to servers and network equipment, facilitating administration and troubleshooting from a centralized location.
Control Room Integration
Supports high-resolution video extension for monitoring displays in security, broadcast, or industrial control environments.
What's in the Box
The package includes all necessary components for setup and operation.
Highlights
- 4K HDMI KVM over IP transmitter for single display extension
- Supports one computer and one local user with wired connectivity
- Maximum video resolution of 3840 x 2160 for Ultra HD clarity
- Includes 2 HDMI ports, 2 network RJ-45 ports, and 3 USB ports
- Rack-mountable form factor for organized installation
- 5 V DC power input with 7.22 W consumption
- Comprehensive audio support with headphone and microphone interfaces
- Package includes power adapter, KVM cable, and mounting kit
- Environmentally compliant with RoHS and WEEE directives
- Backed by a 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | KE8950T |
| Brand Name | ATEN |
| Product Line | ALTUSEN |
| Product Model | KE8950T |
| Product Name | 4K HDMI Single Display KVM over IP Transmitter |
| Packaged Quantity | 1 |
| Product Type | KVM Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| Headphone | Yes |
| Microphone | Yes |
| HDMI | Yes |
| Number of HDMI Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 3 |
| Power Description | |
| Input Voltage | 5 V DC |
| Power Consumption | 7.22 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Transmitter Height | 1.65" (41.91 mm) |
| Transmitter Width | 6.41" (162.81 mm) |
| Transmitter Depth | 8.46" (214.88 mm) |
| Transmitter Weight (Approximate) | 1.11 kg |
| Miscellaneous | |
| Package Contents | 4K HDMI Single Display KVM over IP Transmitter 1 x Power Adapter 1 x KVM Cable (HDMI, USB, Audio; 1.8m/6ft) 1 x HDMI LockPro 1 x Foot Pad Set 1 x Mounting Kit 1 x User Instructions |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum video resolution supported by the ATEN KE8950T transmitter?
The ATEN KE8950T transmitter supports a maximum video resolution of 3840 x 2160, which is 4K Ultra HD. This ensures high-definition visuals for applications like server monitoring, digital signage, or security feeds, providing crisp and detailed image quality over the extended KVM connection.
How many computers and users does this KVM over IP transmitter support?
This transmitter is designed to support a single computer and one local user. It extends the KVM signals from one source computer to one user station, making it ideal for scenarios where remote access to a specific device is needed without multi-user complexity.
What connectivity ports are available on the KE8950T transmitter?
The KE8950T includes two HDMI ports for video, two network RJ-45 ports for Ethernet connectivity, and three USB ports for peripheral devices. It also features headphone and microphone interfaces for audio support, providing comprehensive connectivity for integrated KVM extension.
Is the ATEN KE8950T rack-mountable, and what are its dimensions?
Yes, the KE8950T has a rack-mountable form factor. Its dimensions are 1.65 inches in height, 6.41 inches in width, and 8.46 inches in depth (41.91 mm x 162.81 mm x 214.88 mm), with an approximate weight of 1.11 kg. This compact design allows for easy installation in standard 19-inch server racks.
What power requirements does this transmitter have?
The transmitter requires a 5 V DC input and has a power consumption of 7.22 W. This low power draw makes it energy-efficient for continuous operation in data centers or control rooms, and it includes a power adapter in the package for convenient setup.
What is included in the package with the KE8950T transmitter?
The package includes the 4K HDMI KVM over IP transmitter, a power adapter, a KVM cable (HDMI, USB, Audio; 1.8m/6ft), an HDMI LockPro, a foot pad set, a mounting kit, and user instructions. These components provide everything needed for installation and operation in various environments.
