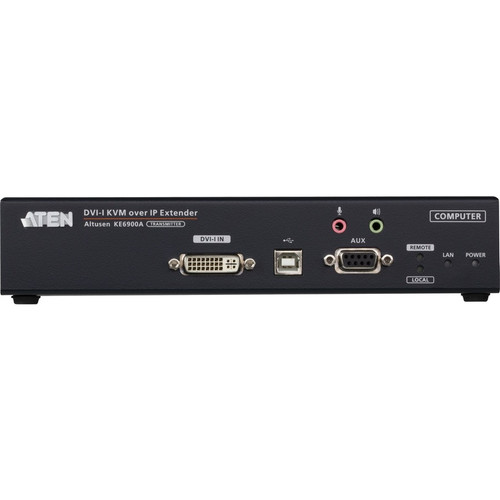

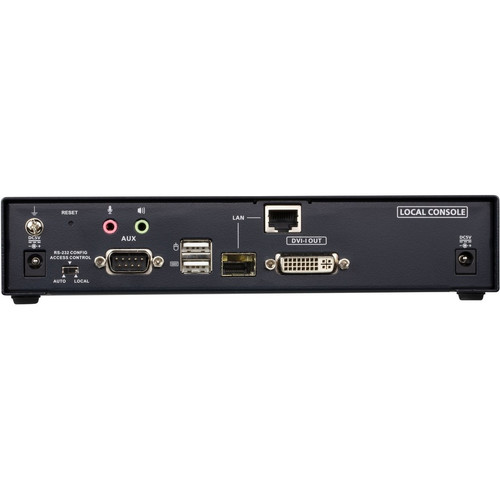

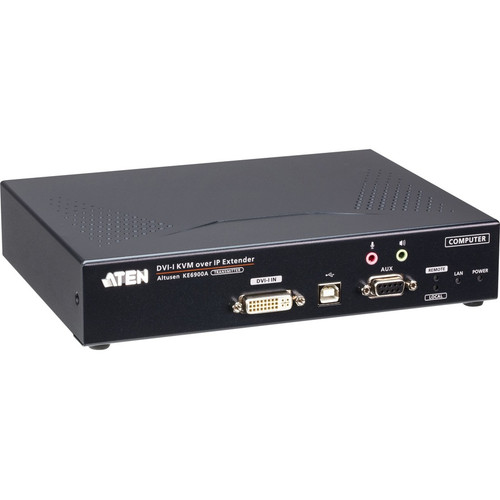

ATEN DVI-I Single Display KVM over IP Transmitter - WUXGA - 1920 x 1200 Maximum Video Resolution - 1 x Network (RJ-45) - 3 x USB - 2 x (KE6900AT)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- DVI-I Single Display KVM over IP Transmitter
- 1 x Power Adapter & Power Cord
- 1 x KVM Cable (DVI-D, USB, Audio; 1.8m/6ft)
- 1 x Foot Pad Set (4 pcs.)
- 1 x Mounting Kit
- 1 x User Instructions
Connectivity Technology: Wired
Device Type: KVM Extender
Graphic Mode: WUXGA
Maximum Video Resolution: 1920 x 1200
Network (RJ-45): Yes
USB: Yes
DVI: Yes
Headphone: Yes
Microphone: Yes
Number of Network (RJ-45) Ports: 1
Number of USB Ports: 3
Number of DVI Ports: 2
Form Factor: Desktop,Rack-mountable
Transmitter Height: 1.65" (41.80 mm)
Transmitter Width: 8.46" (215 mm)
Transmitter Depth: 6.43" (163.30 mm)
Transmitter Weight (Approximate): 1.15 kg
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
- Boundless Switching - simply move the mouse cursor across screen boundaries to switch between different receivers (Rx)
- "Push" and "Pull" - shares content instantly to/from a single Rx or video wall by just one click
- Video Walls - create multiple video walls with up to 8 x 8 (64 displays max.) in each layout
- Advanced Scheduling - improves efficiency and saves costs by allowing connections to be set based on time and date
- Virtual Transmitter - independently streams video, audio, USB, and serial sources from different Tx
- Internal and external authentication support - supports LDAP, Active Directory, RADIUS and TACACS+ external authentications
- Configurable user and group permissions for access and control of KE devices
- Rx access control - users at the Tx local console can enable / disable Rx access by simply pressing a control button
- Supports power/network failover - dual DC jacks for power redundancy and 1 RJ45 & 1 SFP fiber ports for network failover to ensure constant availability for mission-critical applications
- Supports 1Gbps SFP fiber module expansions up to 10 km
[custom-specifications]
| Specifications | |
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | KE6900AT |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Brand Name | ATEN |
| Product Line | ALTUSEN |
| Product Model | KE6900AT |
| Product Name | DVI-I Single Display KVM over IP Transmitter |
| Packaged Quantity | 1 |
| Product Type | KVM Extender Transmitter |
| Technical Information | |
| Connectivity Technology | Wired |
| Device Type | KVM Extender |
| Video | |
| Graphic Mode | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| DVI | Yes |
| Headphone | Yes |
| Microphone | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 3 |
| Number of DVI Ports | 2 |
| Physical Characteristics | |
| Form Factor | Desktop,Rack-mountable |
| Transmitter Height | 1.65" (41.80 mm) |
| Transmitter Width | 8.46" (215 mm) |
| Transmitter Depth | 6.43" (163.30 mm) |
| Transmitter Weight (Approximate) | 1.15 kg |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
