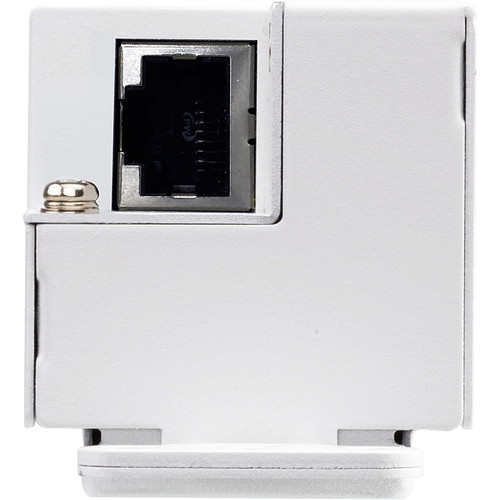

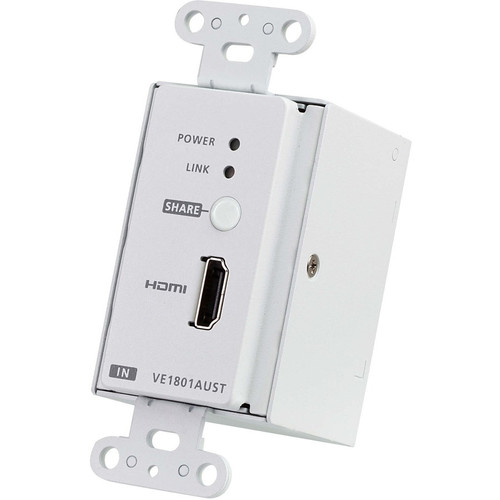

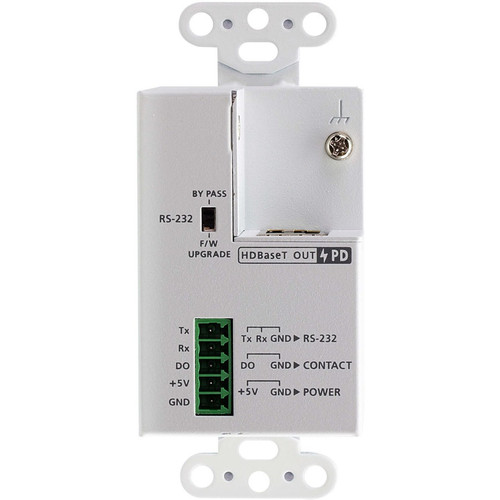

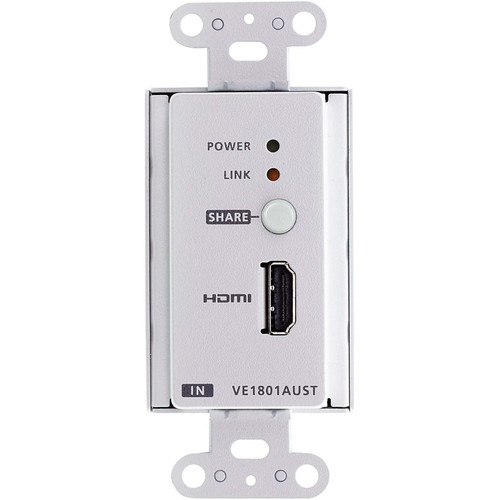

ATEN HDMI HDBaseT Lite Transmitter With US Wall Plate And PoH For Compact Installations 1 Input Device 229.66 Ft Range VE1801AUST
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- HDMI HDBaseT-Lite Transmitter with US Wall Plate / PoH
- 1 x 5-pin Terminal Block
- 1 x Faceplate
- 2 x Flat Head Screws
- 1 x Power Adapter
- 1 x User Instructions
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Maximum Operating Distance: 229.66 ft (70000 mm)
Graphics Modes: 4K UHD
Maximum Video Resolution: 4096 x 2160
Network (RJ-45): Yes
HDMI In: Yes
Number of Network (RJ-45) Ports: 1
Number of HDMI Inputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Transmitter Height: 1.97" (50 mm)
Transmitter Width: 1.75" (44.40 mm)
Transmitter Depth: 4.10" (104.10 mm)
Form Factor: Wall Plate
Transmitter Weight (Approximate): 7.41 oz (210 g)
Package Contents:
- Extends HDMI signals with superior video quality over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable: 4K up to 40 m,: 1080p up to 70 m
- Built-in PoH (Power over HDBaseT) function - the VE1801AUST receives power supply from the HDBaseT output port
- HDMI (3D, Deep color, 4K); HDCP 2.2 compliant
- Designed to mount in a 1-gang junction box with US wall plate
- Supports RS-232 channel transmission
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control
- HDBaseT Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
- Share function - the VE1801AUST can remotely switch source when connecting to a compatible receiver, e.g., VP1421
- LED indication of device status
- Supports wide screen format
[custom-specifications]
| Specifications | |
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | VE1801AUST |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Brand Name | ATEN |
| Product Model | VE1801AUST |
| Product Name | HDMI HDBaseT-Lite Transmitter with US Wall Plate / PoH |
| Product Type | Video Extender Transmitter |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Maximum Operating Distance | 229.66 ft (70000 mm) |
| Video | |
| Graphics Modes | 4K UHD |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of HDMI Inputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6 |
| Physical Characteristics | |
| Transmitter Height | 1.97" (50 mm) |
| Transmitter Width | 1.75" (44.40 mm) |
| Transmitter Depth | 4.10" (104.10 mm) |
| Form Factor | Wall Plate |
| Transmitter Weight (Approximate) | 7.41 oz (210 g) |
| Miscellaneous | |
| Package Contents |
|
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
