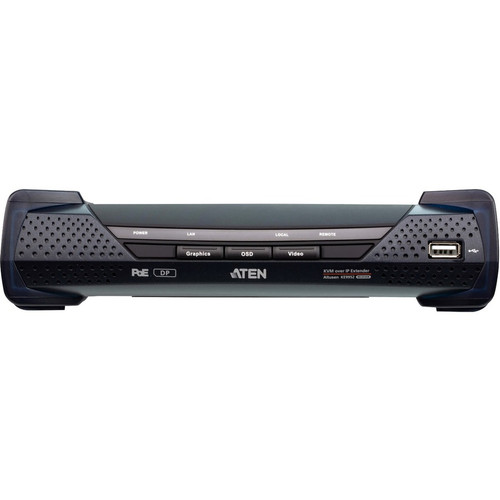

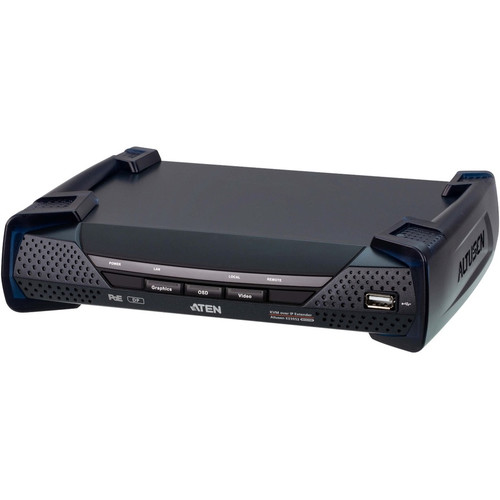

Aten KE9952R 4K DisplayPort Single Display KVM over IP Receiver with PoE - 1 Local User - 3840 x 2160 - 2x RJ-45 - 4x USB
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The KE9952R operates as a KVM console/extender, allowing a local user to access and manage a remote computer or server over an IP network. It uses DisplayPort for video output, supporting 4K resolution to maintain high-quality display performance for graphics-intensive applications or detailed monitoring.
Connectivity includes two RJ-45 network ports for network integration and four USB ports for peripheral devices such as keyboards, mice, or storage. The PoE capability eliminates the need for a separate power adapter, making it suitable for installations where power outlets are limited or inaccessible.
Relevant factors for this section include Number of Local Users Supported, Graphic Mode, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The KE9952R offers streamlined remote management with high-resolution support and flexible mounting options, ideal for data centers, control rooms, or IT labs.
High-Resolution Remote Access
Delivers 4K video quality over IP, ensuring clear and detailed remote visuals for precise control and monitoring tasks.
- 3840x2160 resolution
- DisplayPort interface
- Suitable for graphics applications
Simplified Deployment with PoE
Power over Ethernet reduces cable requirements and installation complexity, supporting cleaner and more efficient setups.
- Single cable for data and power
- Reduces clutter
- Ideal for remote locations
Versatile Mounting and Form Factor
Supports desktop, wall, and rack mounting with a compact 0U rack height, adapting to various space constraints and installation preferences.
- Desktop, wall, rack-mountable
- 0U rack profile
- Compact dimensions
Deployment / Use Cases
This KVM over IP receiver is well-suited for environments where remote access to a single display system is required, such as in data centers for server management, in control rooms for monitoring equipment, or in educational labs for centralized IT administration.
Its PoE support makes it particularly useful in locations with limited power access, like ceiling-mounted displays or remote kiosks, while the high-resolution capability ensures it meets the demands of modern visual applications.
Relevant factors for this section include Number of Local Users Supported, Graphic Mode, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Data Center Server Management
Enables IT staff to remotely control servers from a central location, reducing physical access needs and improving operational efficiency.
Control Room Monitoring
Provides high-resolution display access for surveillance or industrial control systems, supporting detailed visual oversight over IP networks.
What's in the Box
The package includes the essential components for setup and operation.
Highlights
- 4K DisplayPort KVM over IP receiver with PoE support
- Supports 1 local user for remote access and control
- Maximum video resolution of 3840 x 2160 for high-quality visuals
- Includes 2 RJ-45 network ports and 4 USB ports for connectivity
- Power over Ethernet eliminates need for separate power adapter
- Form factor supports desktop, wall, and rack mounting
- Compact dimensions: 2.16" H x 8.96" W x 6.76" D
- Environmentally compliant with RoHS and WEEE standards
- Comes with a 3-year limited warranty for reliability assurance
- Includes user instructions for easy setup and operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | KE9952R |
| Brand Name | ATEN |
| Product Line | ALTUSEN |
| Product Model | KE9952R |
| Product Name | 4K DisplayPort Single Display KVM over IP Receiver with PoE |
| Packaged Quantity | 1 |
| Product Type | KVM Console/Extender |
| Technical Information | |
| Number of Local Users Supported | 1 |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 4 |
| Physical Characteristics | |
| Rack Height | 0U |
| Form Factor | Desktop,Wall Mountable,Rack-mountable |
| Receiver Height | 2.16" (54.80 mm) |
| Receiver Width | 8.96" (227.50 mm) |
| Receiver Depth | 6.76" (171.60 mm) |
| Receiver Weight (Approximate) | 1.27 kg |
| Miscellaneous | |
| Package Contents | 4K DisplayPort Single Display KVM over IP Receiver with PoE 1 x User Instructions |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum video resolution supported by the KE9952R?
The KE9952R supports a maximum video resolution of 3840 x 2160, which is 4K Ultra HD. This high resolution ensures detailed and crisp visuals for remote monitoring, control, or administrative tasks, making it suitable for applications that require precise display quality over IP networks.
How many local users can access the KVM over IP receiver simultaneously?
This receiver supports 1 local user at a time. It is designed for single-user remote access, allowing one person to control and manage the connected display system from a remote location over an IP network, which is ideal for individual IT administration or monitoring scenarios.
Does the KE9952R support Power over Ethernet (PoE)?
Yes, the KE9952R includes PoE support. This feature allows both data and power to be delivered over a single Ethernet cable, simplifying installation by reducing the need for separate power adapters and minimizing cable clutter in setups like data centers or remote installations.
What types of mounting options are available for this receiver?
The receiver offers versatile mounting options: it can be placed on a desktop, mounted on a wall, or integrated into a standard rack with a 0U height. This flexibility allows it to adapt to various space constraints and installation preferences in environments such as server rooms or control panels.
How many network and USB ports does the KE9952R have?
The KE9952R includes 2 RJ-45 network ports for network connectivity and 4 USB ports for peripheral devices. These ports support the integration of keyboards, mice, storage devices, or other USB accessories, enhancing the functionality for remote control and data transfer over IP.
What is included in the warranty for the KE9952R?
The KE9952R comes with a 3-year limited warranty. This warranty covers defects in materials and workmanship, providing assurance of reliability and support for professional use in IT and networking environments, and it reflects the product's durability and manufacturer commitment.
