Aten KH1508A KVM Extender - 8-Port Rack-Mountable with UXGA 1600 x 1200 Video - RJ-45 & PS/2 Connectivity
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

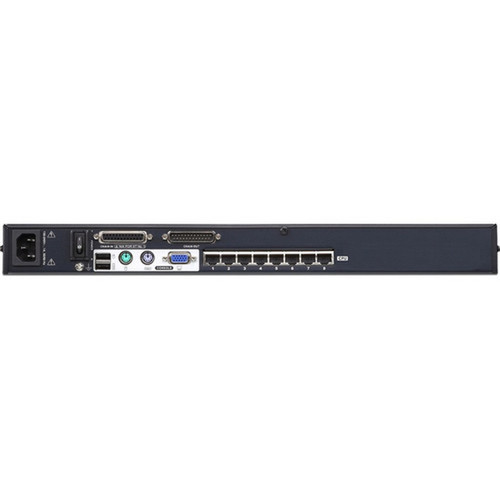

The KH1508A operates with analog KVM technology over wired connections, providing stable signal transmission for keyboard, video, and mouse control. It supports eight computers directly via its eight RJ-45 ports, with additional connectivity through two PS/2 ports and one VGA port for versatile peripheral integration.
Video performance is centered on UXGA graphic mode, with a maximum resolution of 1600x1200 to maintain sharp visuals for administrative interfaces. The extender is compatible with PC, Mac, Sun, and serial devices, offering multiplatform support that simplifies heterogeneous IT environments.
Relevant factors for this section include Connectivity Technology, KVM Technology, Number of Computers Supported, Graphic Mode. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages

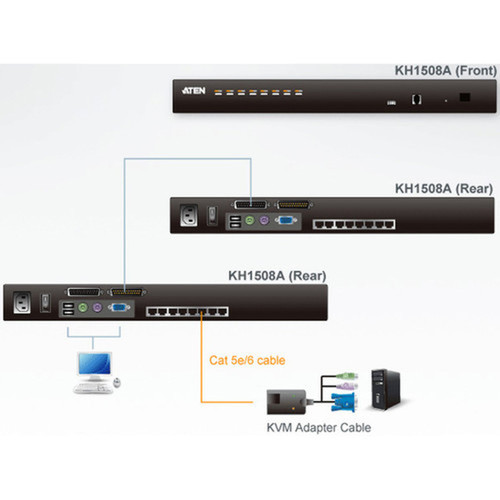

The KH1508A excels in scalability and security for KVM extension, featuring daisy-chaining capability to control up to 256 computers when combined with additional units. This makes it ideal for expanding data center operations without compromising console accessibility.
Enhanced Video Quality
Supports video resolutions up to 1920x1200 @60Hz for 30 meters, 1600x1200 @60Hz for 40 meters, and 1280x1024 @75Hz for 50 meters, ensuring reliable display over extended distances.
- Superior signal integrity
- Optimized for Cat 5e/6 cabling
Advanced Access Control
Includes configurable port access rights, multi-language OSD, and two-level password security with up to 10 user accounts and one administrator profile to prevent unauthorized access.
- Port-by-port user permissions
- Hotkey and manual selection methods
Deployment / Use Cases
Deploy the KH1508A in data centers, server rooms, or IT closets where centralized management of multiple computers is required. Its rack-mountable design and RJ-45 connectivity simplify cable management and reduce clutter, while the analog KVM technology ensures compatibility with legacy and modern systems alike.
Common use cases include monitoring server farms, controlling test lab equipment, or managing broadcast systems where reliable keyboard, video, and mouse extension is critical. The daisy-chaining feature allows for scalable setups in large-scale installations, such as enterprise data halls or educational computing labs.
Data Center Consolidation
Ideal for consolidating KVM consoles in rack environments, enabling administrators to manage up to eight servers from a single station without physical proximity.
Mixed-Platform Environments
Supports PC, Mac, Sun, and serial devices, making it suitable for heterogeneous IT setups that require unified control across different operating systems and hardware types.
What's in the Box
The package includes all necessary components for immediate setup and operation.
Highlights
- Controls up to 8 computers from a single KVM console
- Uses RJ-45 connectors and Cat 5e/6 cabling for space-saving connectivity
- Daisy-chain up to 31 additional units to manage 256 computers
- Supports mixed PS/2 and USB combinations on console and computer sides
- Delivers superior video quality up to 1920x1200 @60Hz over 30 meters
- Configurable port access rights and multi-language OSD for flexible control
- Multiplatform compatibility with PC, Mac, Sun, and serial devices
- Includes two-level password security with up to 10 user accounts
- Rack-mountable 1U design with included mounting kit
- Dual-voltage power input (110V AC, 220V AC) for global deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | KH1508A |
| Brand Name | ATEN |
| Product Model | KH1508A |
| Product Name | KH1508A KVM Extender |
| Product Type | KVM Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| KVM Technology | Analog |
| Number of Computers Supported | 8 |
| Video | |
| Graphic Mode | UXGA |
| Maximum Video Resolution | 1600 x 1200 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| PS/2 Port | Yes |
| VGA | Yes |
| Number of VGA Ports | 1 |
| Number of Network (RJ-45) Ports | 8 |
| Number of PS/2 Ports | 2 |
| Power Description | |
| Input Voltage | 110 V AC,220 V AC |
| Physical Characteristics | |
| Rack Height | 1U |
| Form Factor | Rack-mountable |
| Transmitter Height | 1.70" (43.18 mm) |
| Transmitter Width | 17.20" (436.88 mm) |
| Transmitter Depth | 6.30" (160.02 mm) |
| Transmitter Weight (Approximate) | 2.72 kg |
| Miscellaneous | |
| Package Contents | KH1508A KVM Extender 1 x Firmware Upgrade Cable 1 x 3 Prong AC Power Cord 1 x Rack Mounting Kit 1 x User Manual |
| Country of Origin | China |
User Manual
FAQ
How many computers can the KH1508A KVM Extender support directly?
The KH1508A directly supports up to eight computers through its eight RJ-45 ports. This allows a single KVM console to manage multiple systems simultaneously, ideal for server rooms or data centers where centralized control is needed without daisy-chaining additional units.
What video resolution does this KVM extender support?
It supports a maximum video resolution of 1600 x 1200 in UXGA graphic mode. For extended distances, it can deliver up to 1920x1200 @60Hz over 30 meters, 1600x1200 @60Hz over 40 meters, and 1280x1024 @75Hz over 50 meters, ensuring clear display quality across various cable lengths.
Can I expand the system to control more than 8 computers?
Yes, by daisy-chaining up to 31 additional KH1508A switches, you can control as many as 256 computers from the original KVM console. This scalability makes it suitable for large-scale deployments where growing IT infrastructure requires flexible expansion without replacing core hardware.
What types of connectors and ports are included?
The extender includes eight RJ-45 ports for network connectivity, two PS/2 ports for keyboard and mouse, and one VGA port for video output. This combination supports space-saving Cat 5e/6 cabling and accommodates mixed peripheral types, including PS/2 and USB devices on both console and computer sides.
Is this KVM extender rack-mountable?
Yes, it features a rack-mountable form factor with a 1U rack height. The package includes a rack mounting kit for easy installation in standard server cabinets, optimizing space in data center environments while providing secure mounting for reliable operation.
What security features does the KH1508A offer?
It includes two-level password security with support for one administrator and ten user profiles, configurable port access rights on a port-by-port basis, and multiple user accounts. These features prevent unauthorized access and allow tailored permissions for different IT staff, enhancing control in multi-user environments.
