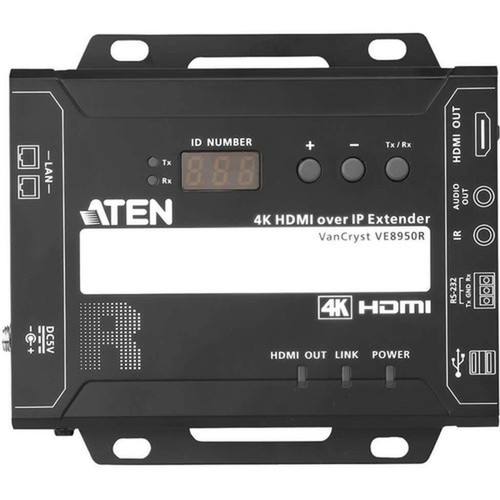

Aten VE8950R 4K HDMI over IP Receiver - 1 Remote User - 4096 x 2160 - 2x RJ-45 - 2x USB
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The VE8950R leverages ATEN's advanced video lossless compression technology to maintain stunning image quality while efficiently utilizing network bandwidth. The built-in scaler automatically adjusts incoming video signals to match the maximum resolution of connected displays, allowing simultaneous use of 4K and 1080p screens within the same deployment.
EDID Expert™ technology selects optimal EDID settings during system initialization, ensuring smooth power-up sequences and consistent video quality across different display devices. Users can select from three video compression presets—Smooth, Balance, and High Quality—to optimize performance based on specific application requirements and network conditions.
Relevant factors for this section include Connectivity Technology, Number of Remote Users Supported, Graphic Mode, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The VE8950R provides exceptional flexibility in professional AV deployments, functioning as an extender, splitter, matrix switch, video wall controller, and daisy-chain component within a single hardware solution. This multi-functionality reduces equipment requirements and simplifies system architecture for complex installations.
Network-Based Extension
Extends HDMI signals over standard LAN infrastructure without distance limitations, eliminating the need for dedicated cabling between source and display locations.
- Uses existing network infrastructure
- No maximum distance restriction
- Standard RJ-45 connections
Integrated Control
Compatible with ATEN Control System for centralized management via CLI Telnet or RS-232 protocol, enabling seamless integration with existing control environments.
- CLI Telnet support
- RS-232 protocol compatible
- Centralized management capabilities
Deployment / Use Cases
The VE8950R excels in environments requiring reliable high-resolution video distribution across multiple locations. Its network-based architecture makes it particularly valuable for installations where running dedicated HDMI cables between rooms or buildings is impractical or cost-prohibitive.
In digital signage deployments, the receiver enables centralized content management with distributed display output, allowing a single source to drive multiple screens throughout a facility. For corporate presentation systems, it provides the flexibility to route any source to any display within the network, supporting dynamic room configurations and collaborative workspaces.
Control Room Applications
Ideal for security operations centers, broadcast facilities, and command centers where operators need to monitor multiple video sources from a centralized location.
Education and Corporate
Perfect for lecture halls, conference rooms, and training facilities requiring flexible presentation capabilities with high-resolution content sharing across multiple displays.
Highlights
- Delivers visually lossless 4K video at 30 Hz with 4:4:4 chroma sampling
- Extends HDMI signals over LAN without distance limitations using standard network infrastructure
- Functions as extender, splitter, matrix switch, video wall controller, and daisy-chain component
- Built-in scaler automatically adjusts video to match connected display resolutions
- EDID Expert™ ensures optimal display settings and smooth system initialization
- Three video compression presets (Smooth, Balance, High Quality) for network optimization
- Compatible with ATEN Control System for centralized management via CLI Telnet or RS-232
- Supports mixed 4K and 1080p displays within the same deployment
- Two RJ-45 network ports and two USB ports for flexible connectivity
- Environmentally compliant with RoHS and WEEE directives
Specifications
| Specifications | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | VE8950R |
| Brand Name | ATEN |
| Product Line | VanCryst |
| Product Model | VE8950R |
| Product Name | VE8950R 4K HDMI over IP Receiver |
| Product Type | KVM Console |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Remote Users Supported | 1 |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| HDMI | Yes |
| Number of HDMI Ports | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 2 |
| Power Description | |
| Input Voltage | 5 V DC |
| Miscellaneous | |
| Platform Supported | PC |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
User Manual
FAQ
What video resolution does the VE8950R support?
The ATEN VE8950R supports maximum video resolution of 4096 x 2160 pixels, delivering true 4K quality at 30 Hz with 4:4:4 chroma sampling. This ensures professional-grade visual fidelity for presentations, digital signage, and monitoring applications where image clarity is essential.
How many remote users can access this receiver simultaneously?
The VE8950R is configured for single remote user operation, making it ideal for dedicated control positions or individual workstation setups. This focused deployment approach ensures consistent performance without resource sharing conflicts in professional AV environments.
What connectivity options are available on this HDMI over IP receiver?
The receiver provides two RJ-45 network ports for LAN connectivity, two USB ports for peripheral integration, and one HDMI port for display output. This combination supports flexible system integration while maintaining the wired connectivity preferred in professional installations.
Can this device work with different display resolutions simultaneously?
Yes, the built-in scaler automatically adjusts incoming video signals to match the maximum resolution of connected displays. This allows you to mix 4K and 1080p screens within the same deployment, providing flexibility in multi-display environments without manual configuration.
What management options are available for the VE8950R?
The receiver is compatible with ATEN Control System, allowing centralized management via CLI Telnet or RS-232 protocol. This integration enables seamless operation within existing control environments and supports automation of display configurations, source switching, and system monitoring.
What power requirements does this receiver have?
The VE8950R operates on 5 V DC input voltage, making it compatible with standard power supplies commonly available in professional AV installations. This low-voltage operation contributes to energy efficiency while supporting reliable performance in continuous-use scenarios.
