Product Features

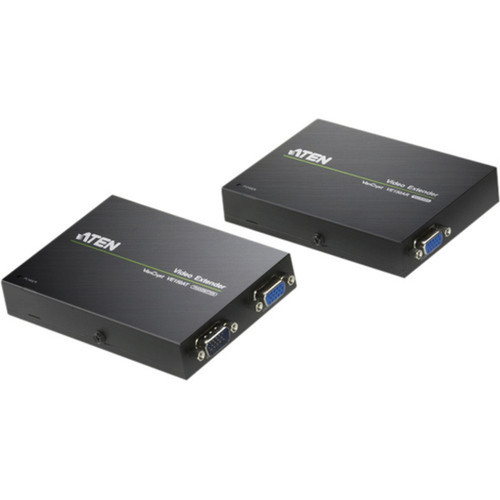

- 1 x VE150AT Video Extender (Local unit)
- 1 x VE150AR Video Extender (Remote unit)
- 2 x Power Adapters
- 1 x VGA Cable
- 1 x Mounting Kit
- 1 x User Instructions
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 2
Maximum Operating Distance: 492.13 ft (150000 mm)
Graphics Modes: VGA,XGA,SVGA,UXGA,WUXGA
Maximum Video Resolution: 1920 x 1200
Network (RJ-45): Yes
VGA In: Yes
VGA Out: Yes
Number of Network (RJ-45) Ports: 2
Number of VGA Inputs: 1
Number of VGA Outputs: 2
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5
Transmitter Height: 0.89" (22.60 mm)
Transmitter Width: 3.56" (90.40 mm)
Form Factor: Rack-mountable
Transmitter Weight (Approximate): 240 g
Package Contents:
Country of Origin: Taiwan
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
- Uses Cat 5e cables to connect the local and remote units
- Supports one local and one remote display
- Long distance transmission - up to 150 m
- Adjustable gain control - manually adjust signal strength to compensate for distance
- Superior video quality - up to 1920x1200 (30 m);1600x1200 (100 m); 1280x1024 (150 m)
- Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
- Supports wide screen formats
- Supports hot-plugging
- Built-in 8KV/15KV ESD protection
- Supports DDC for the local monitor
[custom-specifications]
| Specifications | |
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | VE150A |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Brand Name | ATEN |
| Product Name | Video Extender |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 2 |
| Maximum Operating Distance | 492.13 ft (150000 mm) |
| Video | |
| Graphics Modes | VGA,XGA,SVGA,UXGA,WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| VGA In | Yes |
| VGA Out | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of VGA Inputs | 1 |
| Number of VGA Outputs | 2 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 5 |
| Physical Characteristics | |
| Transmitter Height | 0.89" (22.60 mm) |
| Transmitter Width | 3.56" (90.40 mm) |
| Form Factor | Rack-mountable |
| Transmitter Weight (Approximate) | 240 g |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
[/custom-specifications]
