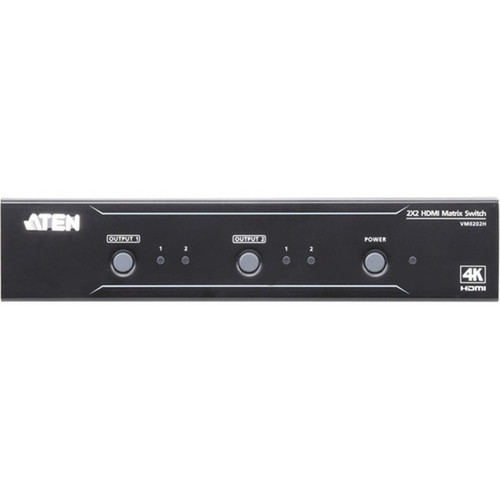

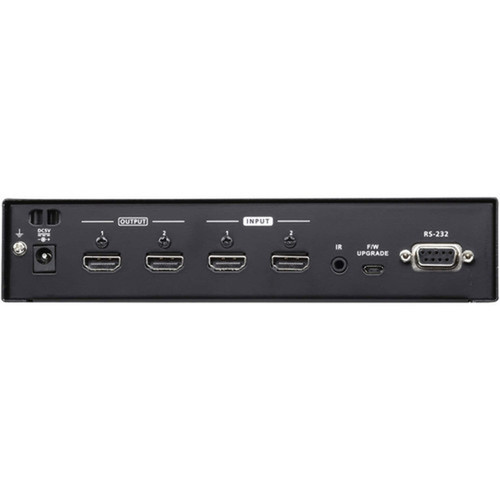

Aten VM0202H 2 x 2 4K HDMI Matrix Switch - 4096 x 2160 - Rack-Mountable - 2 Inputs/2 Outputs
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This HDMI matrix switch delivers advanced technical capabilities with a focus on compatibility and performance. It features two HDMI inputs and two HDMI outputs, supporting a wide range of devices including computers, displays, camcorders, set-top boxes, DVD players, Blu-ray disc players, home theater systems, and media players.
The switch operates over a maximum distance of 70.87 inches (1800 mm) via HDMI cables, providing flexibility in setup while maintaining signal integrity. Its compact dimensions—1.65" height, 2.99" width, and 7.87" depth—allow for easy integration into standard rack systems, and the lightweight design simplifies installation.
Relevant factors for this section include Connectivity Technology, Number of Input Devices Supported, Device Supported, Graphics Modes. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ATEN VM0202H offers distinct advantages for users needing reliable, high-quality video switching. Its matrix functionality allows independent routing of audio and video signals, enhancing operational efficiency in multi-display setups.
High-Resolution Support
Delivers 4K video at 4096 x 2160 resolution, ensuring superior image quality for professional and entertainment applications.
- Crisp visuals for presentations
- Ideal for media playback
Flexible Deployment
Rack-mountable design with included mounting kit enables secure installation in AV racks, server rooms, or control centers.
- Saves space in crowded setups
- Easy integration into existing systems
Broad Device Compatibility
Works with a variety of HDMI sources and displays, from computers and camcorders to home theater systems and media players.
- Reduces need for multiple switches
- Simplifies connectivity management
Deployment / Use Cases
The ATEN VM0202H is versatile enough for numerous professional and consumer scenarios. In conference rooms or classrooms, it can switch between a computer and a media player to display content on two projectors or monitors simultaneously, facilitating dynamic presentations.
For home theater enthusiasts, this matrix switch allows seamless switching between a Blu-ray player and a gaming console to two TVs or projectors, enhancing entertainment flexibility. In digital signage networks, it supports reliable content distribution across multiple displays from centralized sources, ensuring consistent messaging in retail or public spaces.
Relevant factors for this section include Connectivity Technology, Number of Input Devices Supported, Device Supported, Graphics Modes. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Designed for practical installation, the switch features a compact, rack-mountable form factor with dimensions of 1.65" height, 2.99" width, and 7.87" depth. Its lightweight construction at 1.28 lb (580 g) simplifies handling and mounting, while the robust build ensures durability in continuous use environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.65" (42 mm), 2.99" (76 mm), 7.87" (200 mm), 1.28 lb (580 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.99" (76 mm)
- Depth
- 7.87" (200 mm)
- Height
- 1.65" (42 mm)
- Weight
- 1.28 lb (580 g)
What's in the Box
The package includes all necessary components for immediate setup and operation.
Highlights
- Supports 4K resolution at 4096 x 2160 for high-quality video
- 2 HDMI inputs and 2 HDMI outputs for flexible routing
- Rack-mountable design with included mounting kit
- Maximum operating distance of 70.87" (1800 mm) via HDMI
- Compatible with computers, displays, camcorders, and media players
- Lightweight at 1.28 lb (580 g) for easy installation
- Includes IR control and receiver for remote operation
- 3-year limited warranty for added reliability
- Environmentally compliant with RoHS and WEEE directives
- Made in Taiwan with quality construction
Specifications
| Specifications | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | VM0202H |
| Brand Name | ATEN |
| Product Model | VM0202H |
| Product Name | 2x2 4K HDMI Matrix Switch |
| Packaged Quantity | 1 |
| Product Type | Audio/Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 2 |
| Device Supported | Display,Computer,Camcorder,Set-top Box,DVD Player,Blu-ray Disc Player,Home Theater System,Media Player |
| Number of Displays Supported | 2 |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of HDMI Inputs | 2 |
| Number of HDMI Outputs | 2 |
| Media & Performance | |
| Maximum Operating Distance | 70.87" (1800 mm) |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.65" (42 mm) |
| Width | 2.99" (76 mm) |
| Depth | 7.87" (200 mm) |
| Weight (Approximate) | 1.28 lb (580 g) |
| Miscellaneous | |
| Package Contents | 2x2 4K HDMI Matrix Switch 1 x Rack Mount Kit 1 x Power Adapter 1 x IR Control 1 x IR Receiver 1 x User Instructions |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What is the maximum video resolution supported by this HDMI matrix switch?
The ATEN VM0202H supports a maximum video resolution of 4096 x 2160, which is 4K quality. This ensures detailed, high-definition visuals suitable for professional presentations, media playback, and digital signage applications.
How many devices can be connected to this switch?
This switch supports two input devices and two output displays. You can connect sources like computers, camcorders, or media players to the inputs and route them independently to two monitors, projectors, or TVs.
Is this switch rack-mountable?
Yes, the ATEN VM0202H is designed with a rack-mountable form factor and includes a rack mount kit. This makes it ideal for installation in AV racks, server rooms, or control centers where space efficiency and organization are important.
What is the maximum operating distance for HDMI connections?
The maximum operating distance is 70.87 inches (1800 mm) when using HDMI cables. This provides flexibility in setup, allowing you to place sources and displays at a moderate distance while maintaining signal quality.
What devices are compatible with this HDMI matrix switch?
It is compatible with a wide range of HDMI devices, including displays, computers, camcorders, set-top boxes, DVD players, Blu-ray disc players, home theater systems, and media players. This broad compatibility simplifies integration into various setups.
What is included in the package with this switch?
The package includes the 2x2 4K HDMI matrix switch, a rack mount kit, a power adapter, an IR control, an IR receiver, and user instructions. These components provide everything needed for immediate installation and operation.
