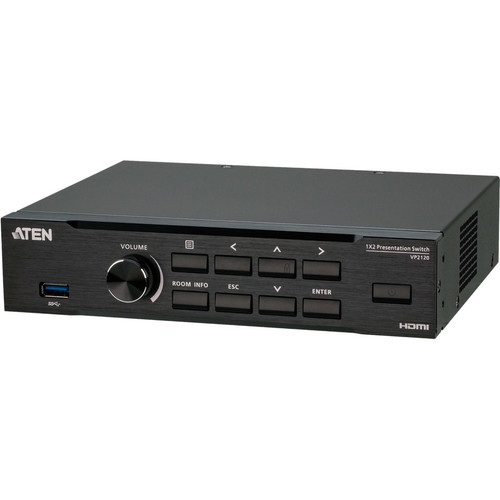

Aten VP2120 Seamless Presentation Switch with Quad View Multistreaming - 1 x 2 HDMI over Twisted Pair - 1920 x 1080 - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The VP2120 operates over twisted pair cable, extending HDMI signals up to 49.21 feet (15 meters) without signal degradation, making it suitable for installations where source and displays are separated by distance. The unit features one HDMI input port and two HDMI output ports, along with one RJ-45 port for the twisted pair connection and one USB port for auxiliary functions.
Quad View Multistreaming technology allows the switch to handle high-bandwidth video streams efficiently, maintaining synchronization between the two displays. The rack-mountable form factor with dimensions of 1.73" H x 6.66" W x 7.87" D (44 mm x 169.2 mm x 200 mm) and weight of 2.51 lb (1140 g) enables clean integration into standard AV racks or discreet placement in presentation environments.
Relevant factors for this section include Connectivity Technology, Number of Input Devices Supported, Device Supported, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The VP2120 simplifies AV management by allowing a single source to drive two displays without manual intervention, reducing setup time and cable clutter. Its extended distance capability over twisted pair cable provides installation flexibility in rooms where direct HDMI runs are impractical.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Seamless Switching, Extended Reach.
Seamless Switching
Switch between sources or maintain continuous output to both displays without interrupting the presentation flow.
- Eliminates cable swapping
- Maintains signal integrity
- Supports multiple device types
Extended Reach
Leverage existing twisted pair infrastructure to transmit HDMI signals over distances where traditional cables fall short.
- Up to 49.21 ft operation
- Uses standard cable
- Reduces installation costs
Deployment / Use Cases
The ATEN VP2120 is ideal for conference rooms, classrooms, and digital signage networks where one source needs to feed multiple displays. In educational settings, instructors can connect a laptop or tablet to project content onto both a main projector and a secondary monitor for better visibility.
For digital signage, the switch enables synchronized content playback across two screens from a single media player, simplifying content management and ensuring consistent messaging. In corporate environments, it supports seamless presentations where slides or videos must appear simultaneously on a projection screen and auxiliary displays for audience engagement.
Conference Room Presentations
Drive both a primary projector and a confidence monitor from one laptop, ensuring the presenter and audience see the same content.
Digital Signage Networks
Distribute promotional or informational content to dual displays in retail stores, lobbies, or public spaces from a centralized source.
Physical Profile
The VP2120 features a compact, rack-mountable design with a low-profile height of 1.73 inches, allowing it to fit into standard 1U rack spaces or be placed discreetly on a shelf. The unit's brushed metal finish and clean front-panel layout contribute to a professional appearance in AV installations. Mounting ears are included for secure rack attachment, and the lightweight construction facilitates easy handling during setup.
- Width
- 6.66" (169.20 mm)
- Depth
- 7.87" (200 mm)
- Height
- 1.73" (44 mm)
- Weight
- 2.51 lb (1140 g)
What's in the Box
The package includes all necessary components for immediate deployment of the presentation switch.
Highlights
- Distributes one HDMI source to two displays simultaneously over twisted pair cable
- Supports full HD 1920x1080 resolution for crisp presentations and content playback
- Extends signals up to 49.21 feet (15 meters) using standard twisted pair infrastructure
- Quad View Multistreaming technology ensures synchronized video across both outputs
- Rack-mountable 1U form factor for clean integration into AV racks or discreet placement
- Includes IR remote control and receiver for convenient operation from a distance
- Compatible with displays, tablets, notebooks, and smartphones as source devices
- Backed by a 3-year limited warranty for reliable performance in professional environments
Specifications
| Specifications | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | VP2120 |
| Brand Name | ATEN |
| Product Model | VP2120 |
| Product Name | Seamless Presentation Switch with Quad View Multistreaming |
| Packaged Quantity | 1 |
| Product Type | Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 1 |
| Device Supported | Display,Tablet,Notebook,Smartphone |
| Number of Displays Supported | 2 |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 1 |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 2 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Maximum Operating Distance | 49.21 ft (15000 mm) |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 6.66" (169.20 mm) |
| Depth | 7.87" (200 mm) |
| Weight (Approximate) | 2.51 lb (1140 g) |
| Miscellaneous | |
| Package Contents | Seamless Presentation Switch with Quad View Multistreaming 1x VP2120 Seamless Presentation Switch 1x IR Receiver 1x IR Remote Control 1x Power Adapter 1x User Instructions |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What is the maximum resolution supported by the ATEN VP2120 switch?
The ATEN VP2120 Seamless Presentation Switch supports a maximum video resolution of 1920 x 1080 (Full HD). This ensures high-quality visuals for presentations, digital signage, and content playback across both connected displays without compression artifacts or loss of detail.
How many displays can I connect to this presentation switch?
The VP2120 supports two displays simultaneously from a single HDMI source. It features one HDMI input port and two HDMI output ports, allowing you to mirror or extend content to dual monitors, projectors, or TVs in conference rooms, classrooms, or digital signage setups.
What type of cable does the VP2120 use for signal transmission?
This switch uses twisted pair cable (such as Cat5e, Cat6, or similar) for signal transmission between the source and displays. It leverages standard RJ-45 connectors, making it compatible with existing network infrastructure and enabling extended distances up to 49.21 feet without signal degradation.
What is the maximum operating distance for the VP2120 over twisted pair?
The VP2120 can operate over twisted pair cable at distances up to 49.21 feet (15 meters). This extended reach allows flexible installation in rooms where direct HDMI cable runs are impractical, such as across large conference spaces or between floors in educational buildings.
Is the ATEN VP2120 rack-mountable?
Yes, the VP2120 features a rack-mountable form factor with a height of 1.73 inches, designed to fit into standard 1U rack spaces. It includes mounting ears for secure attachment, making it ideal for integration into AV racks in control rooms, server closets, or presentation environments where organized equipment placement is essential.
What devices are compatible with the VP2120 as input sources?
The VP2120 is compatible with a range of input devices including displays, tablets, notebooks, and smartphones that output HDMI signals. This flexibility allows presenters to connect laptops, media players, or mobile devices directly to the switch for seamless content distribution to dual displays in various professional and educational scenarios.
