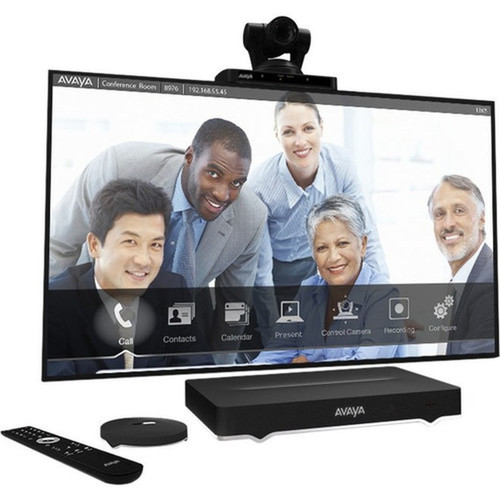

Avaya 55511-00004 SCOPIA XT7100 Room System - 1920 x 1080 Video - 60 fps - WUXGA - H. 323/SIP - Gigabit Ethernet - Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The XT7100 operates on Gigabit Ethernet (10/100/1000Base-T) infrastructure, providing the bandwidth necessary for high-resolution video streams and low-latency data transfer. It adheres to ITU-T standards including H.323 and SIP, ensuring compatibility with a wide range of video conferencing endpoints and infrastructure. The system supports WUXGA graphics modes and encodes video using H.263, H.263+, H.263++, H.264, and H.264 High Profile codecs, balancing quality with network efficiency.
Audio is handled through an extensive set of codecs such as G.711, G.722, AAC-LC, AAC-LD, Opus, and G.719, accommodating diverse audio quality requirements and network conditions. Connectivity is facilitated through two HDMI inputs and two HDMI outputs, one DVI input, two RJ-45 network ports, and a USB port, allowing integration with displays, cameras, peripherals, and network backbones.
This section brings together practical product details such as ITU-T Recommendation, Graphics Modes (Live), Maximum Video Resolution (Live), Maximum Frame Rate, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The SCOPIA XT7100 combines high-performance video with enterprise-grade reliability, making it a strategic choice for organizations investing in video collaboration. Its support for multiple protocols and codecs ensures interoperability in mixed-vendor environments, reducing integration complexity and future-proofing your conferencing setup.
High-Fidelity Video
Experience 1080p video at 60 fps with WUXGA support, delivering sharp, detailed imagery that enhances meeting engagement and clarity.
- 1920x1080 resolution
- 60 fps smooth motion
- WUXGA graphics compatibility
Standards-Based Interoperability
Built on H.323 and SIP standards, the system connects effortlessly with other compliant endpoints and infrastructure, supporting scalable deployments.
- H.323 and SIP protocol support
- Multi-codec video encoding
- Extensive audio codec range
Flexible Installation
The wall-mountable form factor and comprehensive I/O suite allow for clean, space-efficient installations in various room types and layouts.
- Wall mountable design
- Dual HDMI inputs/outputs
- Gigabit Ethernet connectivity
Deployment / Use Cases
The Avaya SCOPIA XT7100 is tailored for structured meeting spaces where reliable, high-quality video communication is essential. Its protocol support and connectivity options make it suitable for integrating into existing corporate networks, educational institutions, healthcare facilities, and government agencies that require secure and consistent conferencing capabilities.
In boardrooms and conference rooms, the system can drive primary displays and support presentation sources via HDMI and DVI. For training or lecture halls, the high frame rate and resolution ensure clear delivery of visual content. The wall-mountable design also suits huddle rooms or smaller collaboration spaces where desk or floor space is limited, providing a discreet yet powerful conferencing endpoint.
Enterprise Conference Rooms
Deploy as the central video hub in mid to large-sized meeting rooms, connecting to displays, audio systems, and network backbones for all-hands meetings or client presentations.
Education & Training Environments
Utilize in classrooms or training centers to facilitate remote learning sessions, webinars, or virtual workshops with high-definition video and clear audio.
Physical Profile
The XT7100 features a compact, wall-mountable enclosure weighing approximately 1.50 kg, designed for easy installation on vertical surfaces. This form factor helps maintain a clean room aesthetic by minimizing desk or shelf clutter. The lightweight construction simplifies mounting and repositioning, while the robust port layout ensures accessible connectivity for peripherals and network cables in fixed installations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.50 kg. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.50 kg
Highlights
- 1920x1080 video resolution at 60 fps for sharp, fluid conferencing
- Supports H.323, SIP, H.243, and H.231 protocols for broad interoperability
- Gigabit Ethernet (10/100/1000Base-T) ensures high-bandwidth network performance
- WUXGA graphics mode compatibility enhances display clarity
- Multiple video codecs including H.263, H.263+, H.263++, and H.264
- Comprehensive audio codec support from G.711 to Opus and G.719
- Dual HDMI inputs and outputs plus DVI input for flexible source connectivity
- Wall-mountable design saves space and allows discreet room integration
- Two RJ-45 network ports support daisy-chaining or separate network segments
- Includes USB port for peripheral connectivity
Specifications
| Specifications | |
|---|---|
| Manufacturer | Avaya, Inc |
| Manufacturer Part Number | 55511-00004 |
| Brand Name | Avaya |
| Product Line | SCOPIA |
| Product Model | XT7100 |
| Product Name | SCOPIA XT7100 Room System |
| Product Type | Video Conference Equipment |
| Technical Information | |
| ITU-T Recommendation | H.323,SIP,H.243,H.231 |
| Video | |
| Graphics Modes (Live) | WUXGA |
| Maximum Video Resolution (Live) | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Video Encoding | H.263,H.263+,H.263++,H.264,H.264 High Profile,H.239 |
| Audio | |
| Audio Encoding | G.711,G.728,G.729a,G.722,G.722.1,G.722.1C,AAC-LC,AAC-LD,Opus,G.719 |
| Network & Communication | |
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| DVI In | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| Network (RJ-45) | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of DVI In | 1 |
| Number of HDMI Inputs | 2 |
| Number of HDMI Outputs | 2 |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Weight (Approximate) | 1.50 kg |
FAQ
What video resolution and frame rate does the Avaya SCOPIA XT7100 support?
The XT7100 supports a maximum live video resolution of 1920 x 1080 (1080p) at 60 frames per second. This high frame rate ensures smooth, detailed video quality during conferences, reducing motion blur and enhancing the overall meeting experience.
Which conferencing protocols are compatible with this system?
The system is compatible with ITU-T standards including H.323 and SIP, as well as H.243 and H.231. This protocol support allows it to interoperate with a wide range of video conferencing endpoints and infrastructure, facilitating seamless connections in diverse environments.
What types of network connectivity does the XT7100 offer?
It features Gigabit Ethernet via 10/100/1000Base-T technology, providing up to 1000 Mbps data transfer rates. The system includes two RJ-45 network ports, enabling direct network connections or daisy-chaining for flexible deployment in room setups.
Can this system be wall-mounted?
Yes, the XT7100 has a wall-mountable form factor. With an approximate weight of 1.50 kg, it is designed for easy installation on vertical surfaces, helping to save desk or floor space and maintain a clean room appearance.
What video and audio codecs are supported?
Video encoding includes H.263, H.263+, H.263++, H.264, H.264 High Profile, and H.239. Audio encoding covers G.711, G.728, G.729a, G.722, G.722.1, G.722.1C, AAC-LC, AAC-LD, Opus, and G.719, ensuring high-quality audio across various network conditions.
How many HDMI and DVI ports does the system have?
The XT7100 includes two HDMI inputs and two HDMI outputs, plus one DVI input. This port selection allows connection to multiple displays, cameras, or presentation sources, supporting versatile room configurations and presentation needs.
What camera resolution or video format is listed?
It features a display specification of 1920 x 1080, giving you clear visuals for work and media use.
What field of view or room-coverage detail is listed?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
