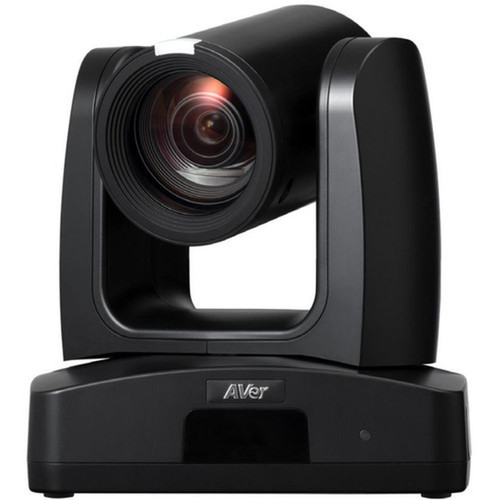

AVer PTR323NV2 TR323NV2 8MP Indoor 4K PTZ Network Camera with 21x Varifocal Lens - H. 265/H. 264/MJPEG - PoE/DC Power
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The TR323NV2 records video in H.264, H.265, and MJPEG formats, optimizing bandwidth efficiency and storage utilization. Its 8-megapixel CMOS sensor captures 3840 x 2160 resolution footage, delivering four times the detail of 1080p Full HD. The camera supports analog video output via 3G-SDI, SDI, and NDI interfaces, enabling integration with broadcast and professional AV systems.
Lens specifications include a minimum aperture of f/3.8 and a maximum aperture of f/1.6, allowing for effective low-light performance. Exposure control ranges from 1/10000 second to 1 second, accommodating varying lighting conditions. The camera includes an HDMI port for local monitoring and an RJ-45 network port for IP connectivity, with remote management capabilities for centralized control.
This section brings together practical product details such as HD Recording, Recording Formats, Image Sensor Type, Color Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This camera combines high-resolution imaging with versatile lens control and robust connectivity, making it suitable for demanding surveillance environments. The 21x varifocal lens allows operators to adjust the field of view without physically moving the camera, while the 4K resolution ensures that critical details remain visible even when zoomed in.
Advanced Imaging Features
Includes auto tracking, wide dynamic range, PTZ control, backlight compensation, automatic white balance, auto gain control, and 2D/3D noise reduction for superior image quality in challenging conditions.
- Auto Tracking
- Wide Dynamic Range
- PTZ Control
- Noise Reduction
Flexible Power and Mounting
Supports both Power over Ethernet and DC power, simplifying installation. The camera can be ceiling or wall mounted, with dimensions of 7.56" H x 7.09" W x 5.71" D.
- PoE and DC Power
- Ceiling and Wall Mount
- Compact Design
Deployment / Use Cases
The TR323NV2 is ideal for indoor surveillance in settings such as corporate offices, retail stores, educational institutions, and healthcare facilities. Its 4K resolution and PTZ capabilities make it effective for monitoring large areas like auditoriums, lobbies, and warehouses, where detailed oversight is required.
For live streaming applications, the camera's NDI and SDI outputs enable integration into production environments for events, conferences, or broadcasting. The remote management feature allows security personnel to control the camera from a central location, enhancing operational efficiency. Its indoor rating and operating temperature range of 32°F to 104°F ensure reliable performance in climate-controlled environments.
Corporate Security
Monitor entrances, hallways, and common areas with high-definition video, using the varifocal lens to adapt to different room sizes and layouts.
Live Event Streaming
Utilize the NDI and SDI outputs to stream presentations or performances in real-time, with the PTZ function allowing dynamic camera movements.
Physical Profile
The camera measures 7.56 inches in height, 7.09 inches in width, and 5.71 inches in depth, with a weight of approximately 4.41 pounds. Its compact design facilitates discreet installation on ceilings or walls. The housing is built for indoor use, with an operating humidity limit of 80%, ensuring durability in standard environmental conditions.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 7.56" (192 mm), 7.09" (180 mm), 5.71" (145 mm), 4.41 lb (2000 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 7.09" (180 mm)
- Depth
- 5.71" (145 mm)
- Height
- 7.56" (192 mm)
- Weight
- 4.41 lb (2000 g)
- Length
- 5.3 mm (0.21")
What's in the Box
The package includes all necessary components for installation and operation.
Highlights
- 8-megapixel CMOS sensor for 4K Ultra HD video recording
- 21x optical zoom varifocal lens with 5.3 mm to 110 mm focal range
- Supports H.264, H.265, and MJPEG video formats
- Power over Ethernet (PoE) and 12V DC power options
- Ceiling and wall mount compatibility for flexible installation
- Remote management capability for centralized control
- Includes auto tracking, PTZ, and wide dynamic range features
- TAA compliant with a 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | AVer Information Inc |
| Manufacturer Part Number | PTR323NV2 |
| Brand Name | AVer |
| Product Model | TR323NV2 |
| Product Name | TR323NV2 21X 4K NDI PTZ Live Streaming Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | D FOV 66.4°(wide)~3.3°(Tele), H FOV 52.26°(wide)~2.66°(Tele), V FOV 41.26°(wide)~2°(Tele) |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | H.264,H.265,MJPEG |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | 3G-SDI,SDI,NDI |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 5.3 mm (0.21") |
| Maximum Focal Length | 110 mm (4.33") |
| Lens Included | Yes |
| Minimum Aperture | f/3.8 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 21x |
| Exposure | |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1/1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Mount Type | Ceiling Mount,Wall Mount |
| Height | 7.56" (192 mm) |
| Width | 7.09" (180 mm) |
| Depth | 5.71" (145 mm) |
| Weight (Approximate) | 4.41 lb (2000 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Humidity | 80% |
| Miscellaneous | |
| Features | Auto Tracking,Wide Dynamic Range,PTZ,Back Light Compensation (BLC),Automatic White Balance,Auto Gain Control,3D Noise Reduction,2D Noise Reduction,Mirror,Audio Compression,Microphone In |
| Indoor/Outdoor | Indoor |
| Package Contents | TR323NV2 21X 4K NDI PTZ Live Streaming Camera Drilling Paper Ceiling Mount Brackets Quick Guide Cable Fixing Plate 3 x M2 x 4mm Screw Power Adapter & Power Cord 2 x 6.5mm Screw Remote Control 3 x M3 x 6mm Screw DIN8 to D-Sub9 Cable RS-232 In/Out Y Cable 4 x Cable Tie |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the resolution of the AVer TR323NV2 camera?
The AVer TR323NV2 captures video at 8 megapixels, with a maximum resolution of 3840 x 2160 (4K Ultra HD). This high resolution provides detailed imagery suitable for surveillance and live streaming applications, ensuring clear visuals even when zoomed in or viewed on large displays.
Does this camera support Power over Ethernet (PoE)?
Yes, the TR323NV2 supports Power over Ethernet, allowing it to receive both power and data through a single network cable. This simplifies installation by reducing the need for separate power outlets near the camera. It also includes a 12V DC power option for flexibility in different setups.
What type of lens does the TR323NV2 have?
This camera features a varifocal lens with a 21x optical zoom. The focal length ranges from 5.3 mm (wide-angle) to 110 mm (telephoto), enabling adjustable field of view without moving the camera physically. The lens is included and has aperture settings from f/3.8 to f/1.6 for low-light performance.
Can the TR323NV2 be used for live streaming?
Yes, the TR323NV2 is equipped for live streaming with support for NDI, SDI, and 3G-SDI analog video outputs. These interfaces allow integration into professional AV and broadcast systems, making it suitable for streaming events, conferences, or productions where high-quality video is required.
What mounting options are available for this camera?
The camera is designed for ceiling mount or wall mount installations. The package includes ceiling mount brackets and necessary hardware, such as screws and a cable fixing plate, to facilitate secure mounting in various indoor environments like offices, retail spaces, or educational facilities.
What video formats does the TR323NV2 support?
It records video in H.264, H.265, and MJPEG formats. H.265 offers efficient compression for reduced bandwidth and storage usage, while H.264 ensures compatibility with most surveillance systems. MJPEG provides high-quality still images, giving flexibility for different recording and streaming needs.
What display size or resolution is listed?
It features a display specification of 8 Megapixel, giving you clear visuals for work and media use.
