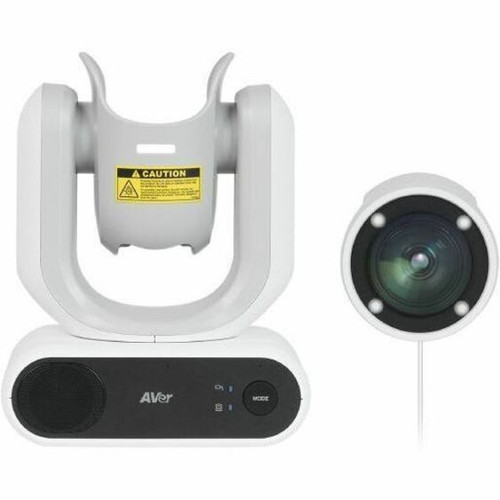

AVer PAMD330U2 MD330U Medical Grade PTZ Network Camera - 8MP 4K 30x Optical Zoom - Indoor - H. 264/H. 265/MJPEG/YUY2 - Gigabit Ethernet
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera's imaging system combines a high-resolution sensor with intelligent processing. The AI-powered platform supports auto and manual iris control, along with features like automatic white balance, back light compensation, and wide dynamic range to maintain image quality across varying lighting conditions.
The PTZ mechanism offers preset point modes for automated positioning, while the lens system includes a fast f/1.6 maximum aperture for improved low-light performance. Exposure control spans from 1/10000 second to 1 second, accommodating everything from fast motion to long-duration captures.
This section brings together practical product details such as HD Recording, Recording Formats, Camera Iris, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The MD330U stands out with its medical-grade construction and versatile feature set that supports both surveillance and specialized imaging applications. Its combination of high resolution, powerful zoom, and robust connectivity makes it suitable for environments where visual detail and reliability are paramount.
Advanced Imaging Features
Includes noise reduction, auto gain control, and built-in microphone and speaker for integrated audio capture and playback.
- Built-in Microphone
- Noise Reduction
- Built-in Speaker
- LED Indicator
Flexible Storage Options
Supports local storage via memory card in addition to network streaming, providing redundancy and offline recording capability.
Comprehensive Protocol Support
Compatible with VISCA, PELCO-D, PELCO-P, and standard IP protocols including IPv4, TCP, UDP, RTSP, and RTMP for integration with diverse surveillance systems.
Deployment / Use Cases
The MD330U is specifically designed for indoor deployment in controlled environments. Its medical-grade designation makes it particularly suitable for healthcare facilities, operating rooms, patient monitoring areas, and telemedicine applications where sterile conditions and precise imaging are required.
Beyond medical settings, this camera serves well in corporate surveillance, educational facilities, retail security, and industrial monitoring where its PTZ capabilities and high-resolution output provide comprehensive coverage. The wired connectivity ensures stable network performance for continuous recording and remote viewing applications.
Medical Imaging & Documentation
Ideal for surgical suites, examination rooms, and patient monitoring where detailed visual records support clinical decision-making and procedural documentation.
Security & Surveillance
Provides comprehensive coverage for entry points, corridors, and sensitive areas with its pan-tilt-zoom functionality and high-resolution output.
Physical Profile
The camera measures 7.99" (203 mm) in height, 6.61" (168 mm) in width, and 4.88" (124 mm) in depth, with an approximate weight of 3.64 lb (1650 g). This compact form factor supports ceiling or wall mounting in various indoor environments. The unit operates within a humidity range of 20% to 80% and is TAA compliant for government procurement requirements.
- Width
- 6.61" (168 mm)
- Depth
- 4.88" (124 mm)
- Height
- 7.99" (203 mm)
- Weight
- 3.64 lb (1650 g)
- Length
- 4.3 mm (0.17")
What's in the Box
The package includes all necessary components for immediate deployment and operation.
Highlights
- 8-megapixel 4K network camera with 30x optical zoom
- Medical-grade PTZ design for indoor deployment
- Supports H.264, H.265, MJPEG, and YUY2 video formats
- 1/2.8" Exmor CMOS image sensor with AI-powered features
- Gigabit Ethernet connectivity with comprehensive protocol support
- Built-in microphone and speaker for integrated audio
- Local storage via memory card in addition to network streaming
- Includes remote control and full mounting hardware
- 3-year limited warranty with 1-year accessory coverage
- TAA compliant for government procurement eligibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | AVer Information Inc |
| Manufacturer Part Number | PAMD330U2 |
| Brand Name | AVer |
| Product Model | MD330U |
| Product Name | Medical Grade PTZ Medical Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Camera Iris | Auto,Manual |
| AI-powered | Yes |
| Display & Graphics | |
| Image Sensor Type | Exmor CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | DFOV: 72.9° (Wide) to 2.64° (Tele) HFOV: 65.1° (Wide) to 2.34° (Tele) VFOV: 38.4° (Wide) to 1.36° (Tele) HFOV: 65.1° (Wide) to 2.34° (Tele) VFOV: 38.4° (Wide) to 1.36° (Tele) |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | H.264,H.265,MJPEG,YUY2 |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 30 fps |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Zoom |
| Minimum Focal Length | 4.3 mm (0.17") |
| Maximum Focal Length | 129 mm (5.08") |
| Lens Included | Yes |
| Minimum Aperture | f/4.7 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 30x |
| Exposure | |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1/1 Second |
| PTZ Modes | Preset Point |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | VISCA,PELCO-D,PELCO-P,IPv4,TCP,UDP,ARP,ICMP,IGMP,HTTP,DHCP,RTP/RTCP,RTSP,RTMP,VISCA over IP |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 36 W |
| Input Voltage | 100 V AC,12 V DC,240 V AC |
| Power Source Type | AC,DC |
| Physical Characteristics | |
| Height | 7.99" (203 mm) |
| Width | 6.61" (168 mm) |
| Depth | 4.88" (124 mm) |
| Weight (Approximate) | 3.64 lb (1650 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 95°F (35°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Minimum Operating Humidity | 20% |
| Maximum Operating Humidity | 80% |
| Minimum Storage Humidity | 20% |
| Maximum Storage Humidity | 95% |
| Miscellaneous | |
| Features | PTZ,Built-in Microphone,Noise Reduction,SD Card Local Storage,Auto Gain Control,Automatic White Balance,Back Light Compensation (BLC),Wide Dynamic Range,Built-in Speaker,LED Indicator |
| Indoor/Outdoor | Indoor |
| Package Contents | Medical Grade PTZ Camera Remote Control Power Adapter Power Cord 2 x Screws USB Cable Quick Start Guide |
| Country of Origin | China |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Accessories 1 Year |
User Manual
FAQ
What is the maximum video resolution of the AVer MD330U camera?
The MD330U captures video at up to 3840 x 2160 resolution, which is 4K Ultra HD. This 8-megapixel camera delivers detailed imagery suitable for both surveillance monitoring and medical documentation applications where visual clarity is essential.
Does this camera support optical zoom, and what is the zoom range?
Yes, the camera features 30x optical zoom with a focal length range from 4.3 mm (wide-angle) to 129 mm (telephoto). This provides significant flexibility for capturing both broad scenes and distant details without sacrificing image quality, complemented by an aperture range of f/1.6 to f/4.7.
What video formats does the MD330U support for recording and streaming?
The camera supports multiple video formats including H.264, H.265, MJPEG, and YUY2. This format flexibility allows compatibility with various recording systems and efficient bandwidth utilization, with H.265 offering improved compression for 4K content.
What type of connectivity does this network camera use?
The MD330U uses wired Gigabit Ethernet connectivity for network integration. It includes an RJ-45 port and supports standard IP protocols including IPv4, TCP, UDP, RTSP, and RTMP, along with control protocols like VISCA and PELCO-D/P for PTZ operation.
Is this camera suitable for outdoor installation?
No, the MD330U is designed specifically for indoor deployment. Its operating temperature range is 32°F to 95°F (0°C to 35°C) with humidity tolerance of 20% to 80%, making it suitable for climate-controlled environments like medical facilities, offices, and institutional buildings.
What storage options are available with this camera?
The camera supports local storage via memory card in addition to network streaming. This dual-storage approach provides redundancy and allows for offline recording capability when network connectivity is interrupted or when local archival is preferred.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
