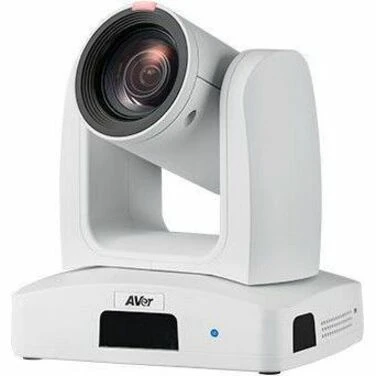

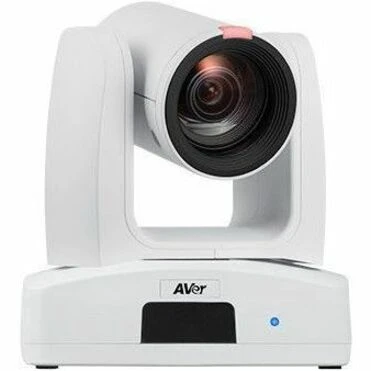

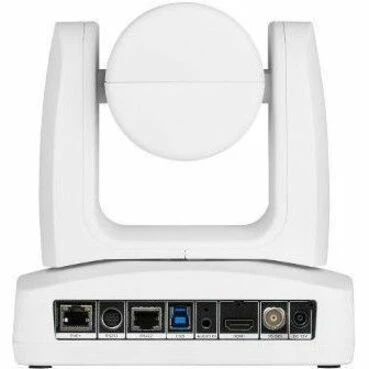

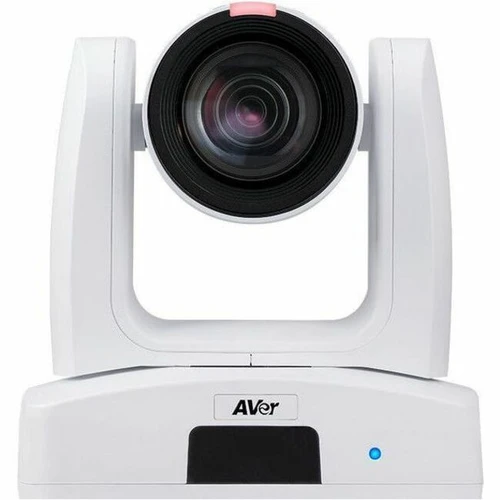

AVer PATR211V3 TR211 AI Auto Tracking PTZ Network Camera - 2MP Full HD Indoor - Varifocal Lens 3. 9-46. 8mm - H. 264/H. 265/MJPEG - PoE+ Ceiling Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The TR211 features advanced imaging technology with a 1/2.8" Exmor CMOS sensor that provides superior image quality in various lighting conditions. The camera supports multiple video compression formats including H.264, H.265, and MJPEG, offering flexibility for different storage and bandwidth requirements.
Network connectivity is handled through Gigabit Ethernet with support for Power over Ethernet Plus (PoE+), simplifying installation by delivering both power and data over a single cable. The camera includes comprehensive protocol support for IPv4, TCP, UDP, HTTP, HTTPS, RTSP, and other standard networking protocols, ensuring compatibility with most video management systems.
This section brings together practical product details such as HD Recording, Recording Formats, Camera Iris, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
AI Auto Tracking
Intelligent tracking algorithms automatically follow moving subjects without manual intervention, providing continuous monitoring of persons or objects of interest.
- Reduces operator workload
- Maintains consistent subject framing
- Enhances surveillance effectiveness
Varifocal Lens Flexibility
The 12x optical zoom varifocal lens allows precise adjustment of the field of view from wide-angle 80.6° coverage to telephoto 7.7° magnification.
- Adjustable without changing lenses
- Optimal framing for different distances
- Manual and auto iris control
Professional Video Output
Delivers high-quality 2MP Full HD video at 60 fps with support for H.265 compression for efficient storage and H.264/MJPEG for compatibility.
- Smooth motion capture
- Multiple format support
- 3G-SDI analog output available
Deployment / Use Cases
The AVer TR211 is specifically designed for indoor surveillance applications where intelligent tracking and high-quality video capture are essential. Its ceiling mount design and PoE+ support make it ideal for commercial environments requiring discreet, professional monitoring solutions.
This camera excels in retail settings for customer behavior analysis and loss prevention, in corporate offices for secure area monitoring, and in educational institutions for classroom observation and campus security. The AI auto tracking feature is particularly valuable in environments where continuous monitoring of specific areas or subjects is required without constant operator attention.
Physical Profile
The TR211 features a compact design measuring 7.09" wide × 7.56" high × 5.71" deep (180 × 192 × 145 mm), making it suitable for discreet ceiling mounting in various indoor environments. The camera includes comprehensive mounting hardware for ceiling installation, with included brackets and drilling templates for straightforward setup.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 7.56" (192 mm), 7.09" (180 mm), 5.71" (145 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 7.09" (180 mm)
- Depth
- 5.71" (145 mm)
- Height
- 7.56" (192 mm)
- Length
- 3.9 mm (0.15")
What's in the Box
The package includes all necessary components for immediate deployment of the surveillance system.
Highlights
- 2-megapixel Full HD resolution at 1920 × 1080
- AI-powered auto tracking for intelligent subject monitoring
- 12x optical zoom varifocal lens (3.9mm to 46.8mm)
- 60 fps maximum frame rate for smooth video capture
- PoE+ support for simplified single-cable installation
- Ceiling mount design with included mounting hardware
- H.264, H.265, and MJPEG video compression support
- Exmor CMOS image sensor for superior low-light performance
- 5-year limited warranty with TAA compliance
- Gigabit Ethernet with comprehensive protocol support
Specifications
| Specifications | |
|---|---|
| Manufacturer | AVer Information Inc |
| Manufacturer Part Number | PATR211V3 |
| Brand Name | AVer |
| Product Model | TR211 |
| Product Name | AI Auto Tracking PTZ Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Camera Iris | Auto,Manual |
| AI-powered | Yes |
| Display & Graphics | |
| Image Sensor Type | Exmor CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | DFOV : 80.6° (Wide) to 7.7° (Tele) HFOV : 72.8° (Wide) to 6.7° (Tele) VFOV : 44.1° (Wide) to 3.8° (Tele) |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.264,H.265,MJPEG |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Analog Video Signal Format | 3G-SDI |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.9 mm (0.15") |
| Maximum Focal Length | 46.8 mm (1.84") |
| Lens Included | Yes |
| Minimum Aperture | f/2.8 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 12x |
| Exposure | |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1/1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | IPv4,TCP,UDP,ARP,ICMP,IGMP,HTTP,HTTPS,DHCP,RTP/RTCP,RTSP,RTMP,LLDP,VISCA over IP |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 18 W |
| Input Voltage | 12 V |
| Power Source Type | PoE+ |
| Physical Characteristics | |
| Mount Type | Ceiling Mount |
| Height | 7.56" (192 mm) |
| Width | 7.09" (180 mm) |
| Depth | 5.71" (145 mm) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Minimum Operating Humidity | 20% |
| Maximum Operating Humidity | 80% |
| Minimum Storage Humidity | 20% |
| Maximum Storage Humidity | 95% |
| Miscellaneous | |
| Features | Auto Tracking,Back Light Compensation (BLC),Wide Dynamic Range,Auto Gain Control,Noise Reduction,Mirror,2D Noise Reduction,3D Noise Reduction,White Balance,PTZ |
| Indoor/Outdoor | Indoor |
| Package Contents | AI Auto Tracking PTZ Camera Remote Control RS-232 In/Out Cable Din 8 To D-Sub 9 Cable Power Adapter Power Cord 4 x Cable Ties 3 x M2 x 4 mm Screws 3 x M3 x 6 mm Screws 2 x 1/4'-20L 6.5mm Screws Cable Fixing Plate 2 x Ceiling Mount Brackets Drilling Paper Quick Start Guide |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | Accessories 1 year |
User Manual
FAQ
What is the maximum video resolution of the AVer TR211 camera?
The AVer TR211 captures video at 2-megapixel Full HD resolution, specifically 1920 × 1080 pixels. This resolution provides clear, detailed footage suitable for identifying faces, license plates, and other important details in surveillance applications. The camera maintains this resolution at up to 60 frames per second for smooth motion capture.
How does the AI auto tracking feature work?
The AI auto tracking uses intelligent algorithms to detect and follow moving subjects within the camera's field of view. Once activated, the system automatically pans, tilts, and zooms to keep the subject centered in the frame without manual operator intervention. This feature is particularly useful for monitoring specific areas where continuous tracking of persons or objects is required.
What type of lens does this camera have and what is its zoom capability?
The TR211 features a varifocal lens with a focal length range from 3.9mm to 46.8mm, providing 12x optical zoom capability. The varifocal design allows adjustment of the field of view from wide-angle 80.6° coverage to telephoto 7.7° magnification, enabling optimal framing for different surveillance distances without changing lenses.
What power options are available for this network camera?
The camera supports Power over Ethernet Plus (PoE+), which delivers both power and data over a single Ethernet cable, simplifying installation. It also includes a 12V power adapter for traditional power connections. The maximum power consumption is 18 watts, making it compatible with standard PoE+ switches and injectors.
What mounting options are included with the camera?
The TR211 is designed for ceiling mounting and includes two ceiling mount brackets, various mounting screws (M2 × 4mm, M3 × 6mm, and 1/4'-20L 6.5mm), a cable fixing plate, and drilling paper for precise installation. The compact dimensions of 7.09" × 7.56" × 5.71" allow for discreet placement in indoor environments.
What video compression formats does the camera support?
The camera supports three video compression formats: H.264 for broad compatibility, H.265 for efficient storage with approximately 50% better compression than H.264, and MJPEG for applications requiring individual frame capture. This flexibility allows integration with various video management systems and optimization for different storage and bandwidth requirements.
What storage is included?
The system includes -4°F (-20°C) of storage for applications, files, and everyday business data.
