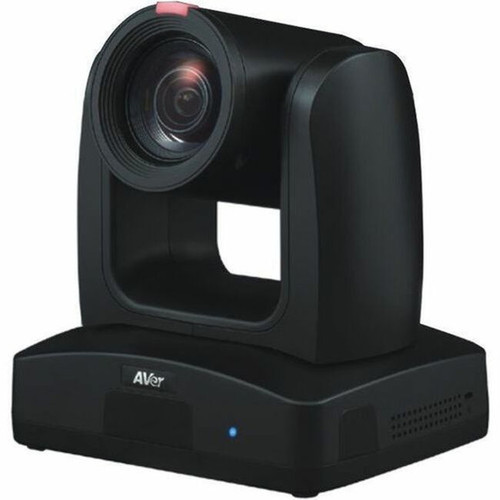

AVer PATR315V3 TR315 8MP 4K Indoor PTZ Network Camera - 12x Optical Zoom - PoE+ - Ceiling Mount - H. 265
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the TR315 is a 1/2.8-inch Exmor CMOS image sensor capable of capturing 8-megapixel video at up to 60 frames per second. The camera records in 4K resolution and supports H.264, H.265, and MJPEG video formats, providing flexibility for different network and storage requirements. An integrated 3G-SDI output allows for direct local monitoring or recording alongside IP streaming.
Network connectivity is handled by a Gigabit Ethernet port with support for PoE+ (IEEE 802.3at), simplifying installation by delivering both data and power over a single cable. The camera communicates using standard protocols including TCP/IP, HTTP/HTTPS, RTSP, and ONVIF-compatible commands, ensuring compatibility with most VMS and NVR systems.
This section brings together practical product details such as HD Recording, Recording Formats, Camera Iris, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This camera stands out with its combination of high-resolution imaging, powerful optical zoom, and intelligent features designed to enhance surveillance effectiveness. The PoE+ capability and comprehensive mounting hardware make deployment straightforward in commercial and institutional settings.
Advanced Imaging Performance
The 8MP sensor and 12x optical zoom provide exceptional detail capture, allowing operators to identify subjects clearly even at a distance. Features like Wide Dynamic Range (WDR) and Back Light Compensation (BLC) maintain image quality in challenging lighting conditions.
- 8MP Exmor CMOS Sensor
- 12x Optical Zoom
- WDR & BLC Image Correction
Intelligent Surveillance Features
AI-powered analytics enable automated tracking and detection, reducing the need for constant manual monitoring. The camera includes noise reduction, auto gain control, and programmable PTZ presets for efficient area coverage.
- AI Auto Tracking
- 2D/3D Noise Reduction
- Programmable PTZ Presets
Deployment / Use Cases
The AVer TR315 is ideal for environments requiring detailed visual documentation and remote camera control. Its 4K resolution provides the clarity needed for license plate reading, facial recognition, or inventory monitoring when integrated with appropriate video management software.
Common installations include retail stores, schools, offices, warehouses, and healthcare facilities where indoor surveillance must balance high image quality with manageable bandwidth and storage demands. The ceiling mount design and included brackets facilitate secure overhead placement.
Retail & Commercial Security
Monitor sales floors, entry points, and storage areas with clear 4K video. The PTZ functionality and auto-tracking help follow suspicious activity, while the indoor-rated design ensures reliable operation in climate-controlled environments.
Educational & Institutional Monitoring
Deploy in corridors, auditoriums, or common areas where wide coverage and zoom capability are needed. Remote management allows security staff to control the camera from a central location, and the multiple video outputs support both live viewing and recording.
Physical Profile
The camera measures 7.09 inches wide, 7.56 inches high, and 5.71 inches deep (180 x 192 x 145 mm), presenting a compact form factor suitable for discreet ceiling mounting. Its construction supports operation in temperatures from 32°F to 104°F (0°C to 40°C) with humidity tolerance from 20% to 80%, making it reliable for standard indoor climates.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 7.56" (192 mm), 7.09" (180 mm), 5.71" (145 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 7.09" (180 mm)
- Depth
- 5.71" (145 mm)
- Height
- 7.56" (192 mm)
- Length
- 3.9 mm (0.15")
What's in the Box
The package includes all necessary components for installation and operation:
Highlights
- 8-megapixel 4K resolution for detailed surveillance imagery
- 12x optical zoom varifocal lens with 3.9mm to 46.8mm focal range
- PoE+ (Power over Ethernet Plus) support for single-cable installation
- AI-powered auto tracking and intelligent video analytics
- H.265, H.264, and MJPEG video compression formats
- 60 frames per second maximum capture rate for smooth motion
- Gigabit Ethernet with comprehensive network protocol support
- Ceiling mount design with included brackets and hardware
- 5-year limited warranty on the camera body
Specifications
| Specifications | |
|---|---|
| Manufacturer | AVer Information Inc |
| Manufacturer Part Number | PATR315V3 |
| Brand Name | AVer |
| Product Model | TR315 |
| Product Name | 12X 4K PTZ Streaming Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Camera Iris | Auto,Manual |
| AI-powered | Yes |
| Display & Graphics | |
| Image Sensor Type | Exmor CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | D FOV 80.6° (wide) ~ 7.7°(Tele) HFOV 72.8° (wide) ~ 6.7°(Tele) V FOV 44.1° (wide) ~ 3.8°(Tele) |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | H.264,H.265,MJPEG |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 60 fps |
| Analog Video Signal Format | 3G-SDI |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.9 mm (0.15") |
| Maximum Focal Length | 46.8 mm (1.84") |
| Lens Included | Yes |
| Minimum Aperture | f/2.8 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 12x |
| Exposure | |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1/1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | IPv4,TCP,UDP,ARP,ICMP,IGMP,HTTP,HTTPS,DHCP,RTP/RTCP,RTSP,RTMP,LLDP,VISCA over IP |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 18 W |
| Input Voltage | 12 V |
| Power Source Type | PoE+ |
| Physical Characteristics | |
| Mount Type | Ceiling Mount |
| Height | 7.56" (192 mm) |
| Width | 7.09" (180 mm) |
| Depth | 5.71" (145 mm) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Minimum Operating Humidity | 20% |
| Maximum Operating Humidity | 80% |
| Minimum Storage Humidity | 20% |
| Maximum Storage Humidity | 95% |
| Miscellaneous | |
| Features | Auto Tracking,Back Light Compensation (BLC),Wide Dynamic Range,Auto Gain Control,Noise Reduction,Mirror,2D Noise Reduction,3D Noise Reduction,White Balance,PTZ |
| Indoor/Outdoor | Indoor |
| Package Contents | 12X 4K PTZ Streaming Camera Remote Control RS-232 In/Out Cable Din 8 To D-Sub 9 Cable Power Adapter Power Cord 4 x Cable Ties 3 x M2 x 4 mm Screws 3 x M3 x 6 mm Screws 2 x 1/4'-20L 6.5mm Screws Cable Fixing Plate 2 x Ceiling Mount Brackets Drilling Paper Quick Start Guide |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | Accessories 1 year |
User Manual
FAQ
What is the maximum video resolution of the AVer TR315 camera?
The AVer TR315 captures video at up to 3840 x 2160 resolution, which is 4K UHD. This 8-megapixel output provides exceptional detail for identifying subjects, reading text, or monitoring wide areas with clarity that surpasses standard HD cameras.
Does this camera support Power over Ethernet?
Yes, the TR315 supports PoE+ (IEEE 802.3at), which delivers both data and power over a single Ethernet cable. This simplifies installation by eliminating the need for a separate power outlet near the camera location, provided your network switch or injector supports the PoE+ standard.
What type of lens does the TR315 have?
This camera features a varifocal lens with a 12x optical zoom range, from 3.9mm wide-angle to 46.8mm telephoto. The lens has an adjustable aperture from f/1.6 to f/2.8, allowing for control over depth of field and low-light performance. The lens is included and pre-installed.
Can this camera be used for outdoor surveillance?
No, the AVer TR315 is rated for indoor use only. Its operating temperature range is 32°F to 104°F (0°C to 40°C), and it is not weather-sealed or designed to withstand moisture, direct sunlight, or extreme outdoor conditions. For outdoor monitoring, consider cameras specifically built with outdoor environmental ratings.
What video compression formats are supported?
The camera supports H.265 (HEVC), H.264, and MJPEG compression. H.265 offers efficient bandwidth and storage usage while maintaining high quality, making it ideal for 4K streaming. H.264 ensures compatibility with older systems, and MJPEG provides individual frame capture for analysis.
What mounting options are included with the camera?
The TR315 is designed for ceiling mounting and includes two ceiling mount brackets, assorted screws, a cable fixing plate, and a drilling template in the box. This hardware allows for secure overhead installation in commercial spaces, corridors, or large rooms where a wide field of view is advantageous.
What storage is included?
The system includes -4°F (-20°C) of storage for applications, files, and everyday business data.
