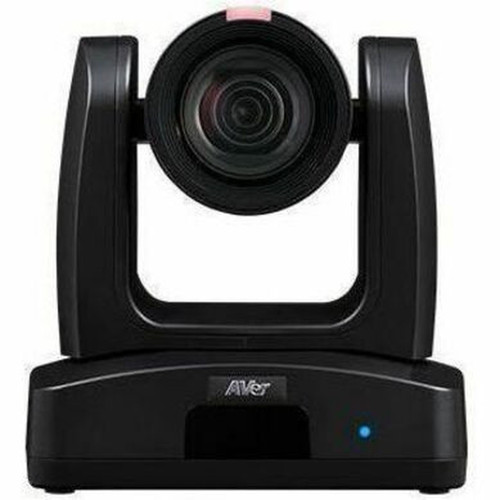

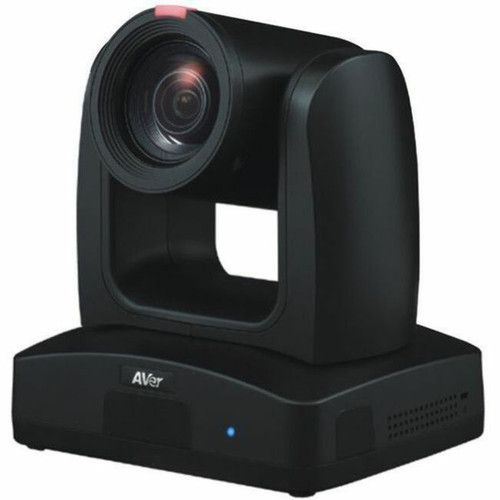

AVer PATR335V3 TR335 8MP Indoor 4K PTZ Network Camera - 30x Optical Zoom - 3840 x 2160 - H. 265 - PoE+ - Ceiling Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The TR335 incorporates advanced imaging technologies to maintain video clarity across varying lighting conditions. Its auto iris, wide dynamic range, and backlight compensation adjust exposure dynamically to prevent overexposed or underexposed areas. The camera features 2D and 3D noise reduction algorithms that minimize grain in low-light scenes, while auto gain control and white balance ensure consistent color accuracy.

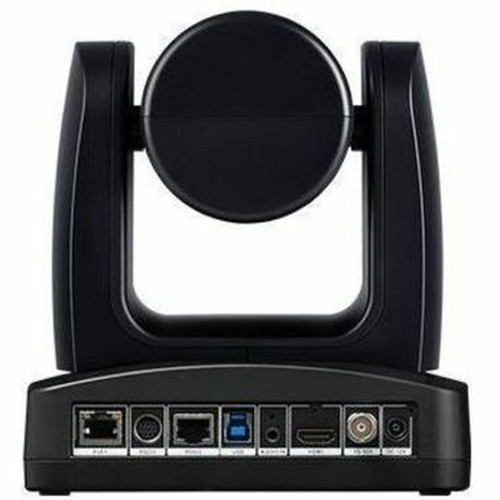

Network connectivity is handled through Gigabit Ethernet, supporting protocols like IPv4, TCP, UDP, HTTP, HTTPS, DHCP, RTP/RTCP, RTSP, and RTMP for seamless integration into existing IP surveillance systems. The camera includes USB and HDMI ports for local monitoring and configuration, plus a 3G-SDI output for analog video signal transmission. Remote management capabilities allow administrators to control pan, tilt, and zoom functions, adjust settings, and view live feeds from any networked device.
Key Product Advantages
This camera stands out in indoor surveillance with its combination of high-resolution imaging, powerful zoom, and intelligent features that reduce manual oversight. The 8-megapixel sensor captures fine details essential for identification and forensic review, while the 30x optical zoom brings distant subjects into clear view without digital interpolation artifacts.
Enhanced Low-Light Performance
The Exmor CMOS sensor and f/1.6 maximum aperture gather more light in dim environments, supported by noise reduction technologies that clean up video without blurring motion.
- f/1.6 maximum aperture
- 2D/3D noise reduction
- Auto gain control
Streamlined Deployment
PoE+ support eliminates the need for separate power wiring, and the ceiling mount design with included brackets facilitates secure overhead installation in standard indoor settings.
- Single-cable PoE+ setup
- Pre-configured mounting hardware
- Gigabit Ethernet for high-bandwidth video
Intelligent Surveillance Features
AI-powered auto tracking follows moving subjects within the frame, and features like wide dynamic range balance bright and dark areas to maintain visibility in challenging lighting.
- Auto tracking
- Wide dynamic range
- Remote PTZ management
Deployment / Use Cases
The AVer TR335 is tailored for environments where detailed, adjustable surveillance is critical. Its high resolution and zoom range make it suitable for monitoring large indoor areas such as warehouses, auditoriums, and retail floors, where operators need to zoom in on specific activities or individuals without physically repositioning the camera.
In corporate or educational settings, the camera can cover entrances, lobbies, and common areas, providing clear footage for security monitoring and incident review. The PTZ functionality allows security personnel to pan, tilt, and zoom remotely via network controls, enabling responsive coverage of multiple zones from a single unit. The indoor rating and operating temperature range of 32°F to 104°F ensure reliable performance in climate-controlled buildings.
Physical Profile
The camera measures 7.09" wide by 7.56" high by 5.71" deep (180 mm x 192 mm x 145 mm), with a compact form factor designed for ceiling mounting. The included ceiling mount brackets and drilling template streamline installation, while the cable fixing plate helps manage wiring neatly. The build supports indoor use with an operating humidity range of 20% to 80%, ensuring durability in typical office or commercial environments.
- Width
- 7.09" (180 mm)
- Depth
- 5.71" (145 mm)
- Height
- 7.56" (192 mm)
- Length
- 3.9 mm (0.15")
What's in the Box
The package includes all necessary components for immediate setup and operation.
Highlights
- 8-megapixel resolution for detailed 4K video at 3840 x 2160
- 30x optical zoom with varifocal lens from 3.9 mm to 46.8 mm
- PoE+ support for single-cable power and data over Ethernet
- H.265, H.264, and MJPEG video compression formats
- AI-powered auto tracking and PTZ remote control
- Ceiling mount design with included brackets and template
- Exmor CMOS sensor with wide dynamic range and noise reduction
- Gigabit Ethernet and multiple ports including USB and HDMI
- Indoor rated with operating temperature up to 104°F (40°C)
- 5-year limited warranty with 1-year accessory coverage
Specifications
| Specifications | |
|---|---|
| Manufacturer | AVer Information Inc |
| Manufacturer Part Number | PATR335V3 |
| Brand Name | AVer |
| Product Model | TR335 |
| Product Name | 30X 4K PTZ Streaming Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Camera Iris | Auto,Manual |
| AI-powered | Yes |
| Display & Graphics | |
| Image Sensor Type | Exmor CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | DFOV : 69.2° (Wide) to 2.8° (Tele) HFOV : 62.3° (Wide) to 2.5° (Tele)VFOV : 37.3° (Wide) to 1.4° (Tele) |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | H.264,H.265,MJPEG |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 60 fps |
| Analog Video Signal Format | 3G-SDI |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.9 mm (0.15") |
| Maximum Focal Length | 46.8 mm (1.84") |
| Lens Included | Yes |
| Minimum Aperture | f/4.8 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 12x |
| Exposure | |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1/1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | IPv4,TCP,UDP,ARP,ICMP,IGMP,HTTP,HTTPS,DHCP,RTP/RTCP,RTSP,RTMP,LLDP,VISCA over IP |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 18 W |
| Input Voltage | 12 V |
| Power Source Type | PoE+ |
| Physical Characteristics | |
| Mount Type | Ceiling Mount |
| Height | 7.56" (192 mm) |
| Width | 7.09" (180 mm) |
| Depth | 5.71" (145 mm) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Minimum Operating Humidity | 20% |
| Maximum Operating Humidity | 80% |
| Minimum Storage Humidity | 20% |
| Maximum Storage Humidity | 95% |
| Miscellaneous | |
| Features | Auto Tracking,Back Light Compensation (BLC),Wide Dynamic Range,Auto Gain Control,Noise Reduction,Mirror,2D Noise Reduction,3D Noise Reduction,White Balance,PTZ |
| Indoor/Outdoor | Indoor |
| Package Contents | 30X 4K PTZ Streaming Camera Remote Control RS-232 In/Out Cable Din 8 To D-Sub 9 Cable Power Adapter Power Cord 4 x Cable Ties 3 x M2 x 4 mm Screws 3 x M3 x 6 mm Screws 2 x 1/4'-20L 6.5mm Screws Cable Fixing Plate 2 x Ceiling Mount Brackets Drilling Paper Quick Start Guide |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | Accessories 1 year |
User Manual
FAQ
What is the maximum video resolution of the AVer TR335 camera?
The AVer TR335 captures video at up to 3840 x 2160 resolution, which is 4K Ultra HD. This high resolution provides clear, detailed imagery suitable for identifying faces, license plates, and other fine details in surveillance footage, supporting real-time monitoring at 60 frames per second for smooth motion.
Does this camera support Power over Ethernet (PoE)?
Yes, the camera supports PoE+ (IEEE 802.3at), which delivers both data and power over a single Ethernet cable. This simplifies installation by eliminating the need for a separate power outlet near the camera, reducing wiring complexity and enabling flexible placement in ceiling-mounted or other hard-to-reach locations.
What type of lens does the TR335 have, and what is its zoom capability?
The TR335 features a varifocal lens with a focal length range from 3.9 mm to 46.8 mm, offering 12x optical zoom. This allows you to adjust the field of view remotely, from a wide 69.2° diagonal angle for broad coverage to a narrow 2.8° angle for detailed close-ups, without moving the camera physically.
Is the AVer TR335 suitable for outdoor use?
No, the TR335 is rated for indoor use only. It has an operating temperature range of 32°F to 104°F (0°C to 40°C) and is not designed to withstand outdoor elements like rain, extreme cold, or direct sunlight. It is ideal for climate-controlled environments such as offices, warehouses, and retail stores.
What video compression formats does the camera support?
The camera supports H.264, H.265, and MJPEG video formats. H.265 offers efficient compression for reduced bandwidth and storage needs while maintaining high quality, H.264 provides broad compatibility with existing systems, and MJPEG delivers individual frame compression for applications requiring still image capture.
What mounting options are included with the camera?
The camera is designed for ceiling mounting and comes with two ceiling mount brackets, a drilling paper template for accurate hole placement, and necessary screws (including M2, M3, and 1/4'-20L types). This package facilitates secure overhead installation in standard indoor settings, with a cable fixing plate to manage wiring neatly.
What storage is included?
The system includes -4°F (-20°C) of storage for applications, files, and everyday business data.
