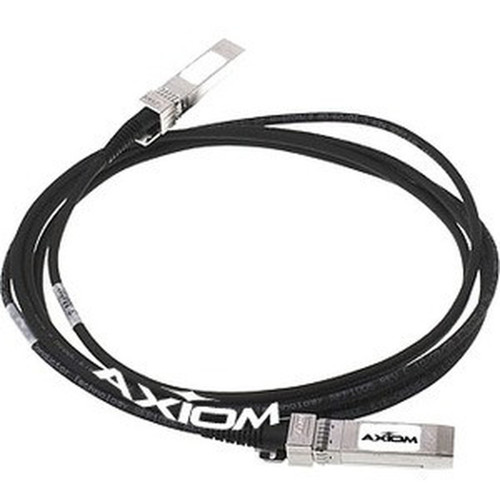

Axiom 332-1665-AX 10GBASE-CU SFP+ Passive DAC Twinax Cable - 1m (3. 3 ft) Direct Attach Network Cable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This direct attach cable operates on the 10GBASE-CU standard, utilizing twinaxial copper cabling to support 10 Gigabit Ethernet over distances up to 10 meters. The passive design means it draws power directly from the SFP+ ports, eliminating the need for external power supplies or active circuitry, which reduces complexity and potential points of failure.
The cable terminates with SFP+ connectors that feature a latching mechanism for secure connections. Each end has a single SFP+ male connector, providing a straightforward point-to-point link between compatible network devices. This configuration is optimized for top-of-rack switching, server-to-switch connections, and storage area network interconnects where low latency and high bandwidth are critical.
Key Product Advantages
This Axiom twinax cable offers several advantages for network deployments. Its passive design ensures reliable performance with minimal power consumption, while the direct attach construction provides a plug-and-play solution that eliminates the need for separate transceivers and fiber cabling.
High-Speed Connectivity
Delivers full 10 Gbit/s throughput with low latency, suitable for bandwidth-intensive applications like virtualization, database clustering, and media streaming.
- 10 Gigabit Ethernet support
- Low signal attenuation
- Consistent data transfer rates
Simplified Deployment
The integrated SFP+ connectors mean no separate transceivers are required, reducing component count, installation time, and potential compatibility issues.
- Pre-terminated ends
- No external power needed
- Direct device-to-device connection
Durability and Reliability
Constructed with quality materials and backed by a lifetime warranty, this cable is built for continuous operation in demanding network environments.
- Robust twinaxial construction
- Secure latching connectors
- Lifetime warranty coverage
Deployment / Use Cases
This 10GBASE-CU SFP+ DAC cable is specifically designed for short-reach connections within data centers, server rooms, and network closets. Its 1-meter length makes it perfect for connecting equipment within the same rack or between adjacent racks where minimal cable management is desired.
Common deployment scenarios include connecting top-of-rack switches to servers in blade enclosures, linking storage arrays to network switches in SAN configurations, and providing high-speed interconnects between virtualization hosts. The cable's Dell compatibility ensures it works seamlessly in Dell PowerConnect and Force10 networking environments, as well as other standards-based SFP+ implementations from vendors like Cisco, Juniper, and HPE.
Data Center Interconnects
Ideal for connecting servers to top-of-rack switches within the same cabinet, minimizing cable clutter while maintaining 10GbE performance.
Storage Networking
Perfect for SAN and NAS connections where high bandwidth is required between storage controllers and network switches.
Highlights
- 10GBASE-CU SFP+ Passive DAC Twinax Cable for 10 Gigabit Ethernet
- 1-meter (3.3 ft) length ideal for rack-to-rack or within-rack connections
- SFP+ male connectors on both ends for direct device attachment
- Passive design requires no external power supply
- Fully compatible with Dell networking equipment
- Supports 10 Gbit/s data transfer rates
- Twinaxial cable construction for reliable signal integrity
- Lifetime warranty for long-term peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | 332-1665-AX |
| Brand Name | Axiom |
| Product Name | 10GBASE-CU SFP+ Passive DAC Twinax Cable Dell Compatible 1m |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Twinaxial |
| Cable Length | 3.3 ft (1 m) |
| Connector Type on First End | SFP+ Network - Male |
| Connector on First End Details | 1 x SFP+ Network - Male |
| Connector Type on Second End | SFP+ Network - Male |
| Connector on Second End Details | 1 x SFP+ Network - Male |
| Device Supported | Network Device |
| Data Transfer Rate | 10 Gbit/s |
| Features | Passive |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the maximum distance this DAC cable supports?
This 10GBASE-CU SFP+ Passive DAC Twinax Cable is designed for short-reach connections up to 10 meters. The specific model shown here is 1 meter (3.3 ft) in length, making it ideal for within-rack or adjacent-rack deployments where minimal cable length is required.
Is this cable compatible with non-Dell equipment?
Yes, while specifically tested for Dell compatibility, this cable uses standard SFP+ connectors and follows the 10GBASE-CU specification, making it compatible with any network device that supports standard SFP+ ports and passive direct attach cables. This includes equipment from Cisco, Juniper, HPE, and other major networking vendors.
What does 'passive' mean for a DAC cable?
A passive DAC (Direct Attach Copper) cable has no active electronics or signal conditioning components. It relies on the SFP+ ports at each end to provide power and handle signal integrity. This makes passive DAC cables simpler, more reliable, and less expensive than active cables, though they are typically limited to shorter distances (up to 10 meters for 10GbE).
Can this cable be used for 1 Gigabit Ethernet connections?
No, this is specifically a 10 Gigabit Ethernet cable designed for 10GBASE-CU applications. While it may physically connect to 1GbE SFP ports, it is not optimized or tested for lower-speed applications. For 1 Gigabit connections, you should use cables specifically designed for 1000BASE-T or 1000BASE-SX standards.
