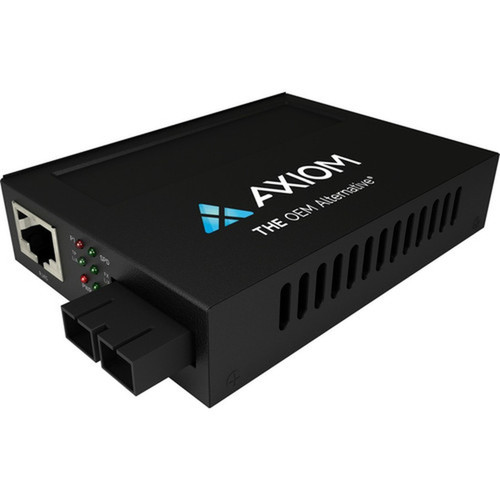

Axiom MCP32-T2-M8S05-AX Gigabit PoE+ RJ45 to 1000BASE-SX Fiber Media Converter - MMF - SC - 550m - 850nm
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter utilizes 1000Base-SX technology to achieve data transfer rates up to 1000 Mbps over optical fiber cables. It supports multimode fiber with an 850 nm wavelength, which is optimized for short to medium-distance applications. The maximum supported distance is 0.55 km (0.34 miles), allowing for network extension beyond the typical 100-meter limit of twisted pair cabling.
The converter features two ports total: one RJ45 port that supports PoE+ (PSE) for power delivery and one SC port for fiber connectivity. It is compatible with both twisted pair and optical fiber media types, ensuring flexibility in various network environments. The Gigabit Ethernet technology ensures backward compatibility with 10/100 Mbps networks while providing full Gigabit performance when needed.
Key Product Advantages
This media converter offers several key advantages for network deployments requiring extended reach and power delivery. Its PoE+ capability eliminates the need for separate power supplies at remote locations, simplifying installation and reducing infrastructure costs. The conversion from RJ45 to fiber enables reliable data transmission over longer distances without signal degradation, which is critical for industrial or outdoor applications.
Extended Network Reach
Supports distances up to 550 meters over multimode fiber, far exceeding the 100-meter limit of standard copper cabling.
- Ideal for connecting remote buildings
- Reduces signal loss in long runs
- Maintains Gigabit speeds over extended distances
PoE+ Power Delivery
Delivers up to 30 watts of power through the RJ45 port, enabling single-cable connectivity for powered devices.
- Powers IP cameras and access points
- Simplifies installation with fewer cables
- Compliant with IEEE 802.3at standard
Media Flexibility
Converts between twisted pair and multimode fiber, allowing integration of fiber backbones into existing copper networks.
- Supports cost-effective twisted pair cabling
- Enables fiber optic performance where needed
- Backward compatible with 10/100 Mbps networks
Deployment / Use Cases
The Axiom Gigabit PoE+ Fiber Media Converter is ideal for scenarios where network extension and power delivery are required simultaneously. Common deployments include connecting remote security cameras in parking lots or perimeter fencing, where both long-distance data transmission and power for the cameras are needed. It also serves well in warehouse or manufacturing environments where machinery interference necessitates fiber runs for reliable connectivity.
Educational campuses and office buildings can use this converter to extend network segments between floors or buildings while powering wireless access points in hard-to-reach locations. The SC connector compatibility makes it suitable for existing multimode fiber infrastructure, providing a cost-effective upgrade path without replacing entire cabling systems.
Security System Expansion
Extend network reach to remote IP cameras while delivering power over the same cable, reducing installation complexity and cost.
Network Backbone Integration
Bridge copper edge networks to fiber backbones, leveraging fiber's immunity to EMI and longer distance capabilities.
Highlights
- Converts RJ45 Gigabit Ethernet to 1000BASE-SX multimode fiber
- Includes one PoE+ port delivering up to 30W for powered devices
- Supports distances up to 550 meters over multimode fiber
- Uses SC connectors for reliable fiber optic connections
- Operates at 850 nm wavelength optimized for multimode applications
- Backward compatible with 10/100/1000Base-T networks
- Powered by AC source for consistent operation
- 1-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | MCP32-T2-M8S05-AX |
| Brand Name | Axiom |
| Product Name | 1Gbs POE+ RJ45 to 1000BASE-SX Fiber Media Converter - MMF, SC, 550m, 850nm |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of PoE+ (RJ-45) Ports | 1 |
| PoE Port Type | PSE |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Maximum Distance Supported | 0.55 km (0.34 Mile) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-SX,10/100/1000Base-T |
| Power Description | |
| Power Source | AC |
| Warranty | |
| Limited Warranty | 1 Year |
FAQ
What is the maximum distance this media converter supports over fiber?
This converter supports a maximum distance of 0.55 kilometers (0.34 miles) over multimode fiber optic cable. This extended range allows network segments to reach beyond the typical 100-meter limit of standard twisted pair cabling, making it suitable for connecting remote buildings or outdoor installations while maintaining Gigabit Ethernet performance.
Does this converter provide Power over Ethernet (PoE)?
Yes, it includes one PoE+ port that complies with the IEEE 802.3at standard, delivering up to 30 watts of power. This PoE+ capability allows you to power devices such as IP cameras, wireless access points, or VoIP phones directly through the Ethernet cable, eliminating the need for separate power supplies at remote locations and simplifying installation.
What type of fiber connector does this media converter use?
This converter uses an SC connector for fiber optic connections. SC connectors are widely used in multimode fiber applications due to their push-pull design, which provides reliable and secure connections. The converter supports multimode fiber with an 850 nm wavelength, which is standard for short to medium-distance Gigabit Ethernet over fiber.
Can this converter work with existing 10/100 Mbps networks?
Yes, it is fully backward compatible with 10/100 Mbps networks. The converter supports 10/100/1000Base-T on the RJ45 side, allowing seamless integration into existing network infrastructure. When connected to Gigabit equipment, it will operate at 1000 Mbps, but it will automatically negotiate down to 100 Mbps or 10 Mbps if connected to older devices.
