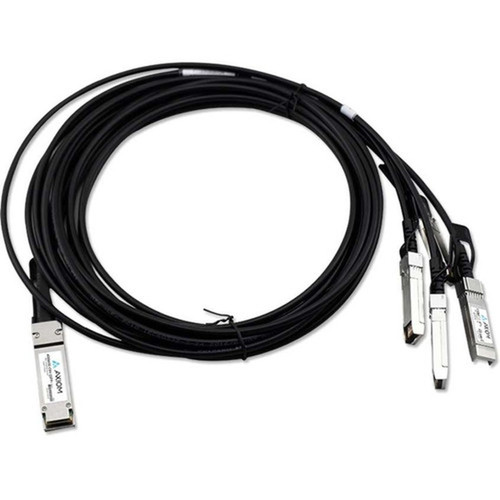

Axiom 470-ABXO-AX 40GBASE-CR4 QSFP+ to 4 10GBASE-CU SFP+ Passive DAC Cable - Dell Compatible - 2m - 6. 6 ft
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This DAC cable supports the 40GBASE-CR4 standard, which aggregates four 10 Gbit/s lanes to deliver a total bandwidth of 40 Gbit/s. The QSFP+ connector on one end interfaces with 40GbE ports, while the four SFP+ connectors on the other end connect to 10GbE ports, facilitating high-speed data transfers between network switches, routers, and servers.
The passive design eliminates the need for external power, reducing complexity and potential points of failure. This makes it ideal for environments where simplicity and reliability are priorities, such as data centers, enterprise networks, and high-performance computing clusters.
This section brings together practical product details such as Cable Type, Cable Length, Connector Type on First End, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This cable delivers high-speed connectivity with minimal latency, ensuring efficient data flow for critical network operations. Its passive construction enhances durability and reduces maintenance needs, while the Dell compatibility guarantees broad usability across existing infrastructure.
High-Speed Performance
Supports 40 Gbit/s data transfer rates, enabling rapid data movement for bandwidth-intensive applications like virtualization, storage networking, and cloud computing.
- 40 Gbit/s throughput
- Low-latency design
- Ideal for data centers
Reliable Passive Design
Uses passive technology for a simple, power-free connection that minimizes points of failure and simplifies deployment in crowded network racks.
- No external power required
- Reduced complexity
- Enhanced durability
Deployment / Use Cases
This cable is suited for connecting 40GbE QSFP+ ports to 10GbE SFP+ ports in various network scenarios. It is commonly used in data centers to link top-of-rack switches to servers or storage arrays, enabling scalable and high-performance network architectures.
In enterprise environments, it facilitates connections between core switches and distribution layers, supporting applications like database clustering, video streaming, and large file transfers. The 2-meter length provides flexibility for rack-to-rack or within-rack deployments, making it a versatile choice for IT infrastructure.
Data Center Connectivity
Ideal for linking 40GbE switches to 10GbE servers or storage devices, optimizing bandwidth and reducing bottlenecks in high-density computing environments.
Enterprise Network Upgrades
Enhances network performance by connecting legacy 10GbE equipment to modern 40GbE infrastructure, supporting seamless upgrades without full system replacements.
Highlights
- 40 Gbit/s data transfer rate for high-speed network performance
- QSFP+ to 4 SFP+ connector configuration supports 40GBASE-CR4 standard
- Passive DAC design requires no external power, simplifying deployment
- 2-meter (6.6-foot) length ideal for short-range connections in racks
- Dell compatible for seamless integration with supported network devices
- Direct Attach Copper (DAC) cable ensures low latency and reliability
- Suitable for data centers, enterprise networks, and high-performance computing
- Plug-and-play installation reduces setup time and technical overhead
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | 470-ABXO-AX |
| Brand Name | Axiom |
| Product Name | 40GBASE-CR4 QSFP+ to 4 10GBASE-CU SFP+ Passive DAC Dell Compatible 2m |
| Product Type | Data Transfer Cable |
| Technical Information | |
| Cable Type | QSFP+/SFP+ |
| Cable Length | 6.6 ft |
| Connector Type on First End | QSFP+ Network |
| Connector on First End Details | QSFP+ Network |
| Connector Type on Second End | SFP+ Network |
| Connector on Second End Details | SFP+ Network |
| Device Supported | Network Device |
| Data Transfer Rate | 40 Gbit/s |
| Features | Passive |
FAQ
What is the data transfer rate of this cable?
This cable supports a data transfer rate of 40 Gbit/s using the 40GBASE-CR4 standard. It aggregates four 10 Gbit/s lanes through the QSFP+ to SFP+ configuration, enabling high-speed connectivity for network devices like switches and servers.
Is this cable compatible with Dell equipment?
Yes, this cable is Dell compatible, designed to work seamlessly with supported Dell network devices. It ensures reliable performance and integration in environments using Dell infrastructure, such as data centers or enterprise networks.
What does 'passive DAC' mean for this cable?
Passive DAC stands for Passive Direct Attach Copper. It means the cable has no active electronic components and does not require external power. This design simplifies installation, reduces potential failure points, and offers a cost-effective solution for short-range connections up to 2 meters.
What are the connector types on this cable?
One end features a QSFP+ network connector, and the other end has four SFP+ network connectors. This configuration allows the cable to connect a 40GbE QSFP+ port to multiple 10GbE SFP+ ports, facilitating efficient data transfer in network setups.
What is the cable length, and is it suitable for rack deployments?
The cable length is 2 meters (6.6 feet). This makes it ideal for rack deployments, such as connecting devices within the same rack or between adjacent racks in data centers, providing flexibility while maintaining signal integrity for short-range connections.
What types of network devices does this cable support?
This cable supports network devices with QSFP+ and SFP+ ports, including switches, routers, and servers. It is designed for use in data transfer applications within network infrastructure, enabling high-speed links for bandwidth-intensive tasks like storage networking or virtualization.
