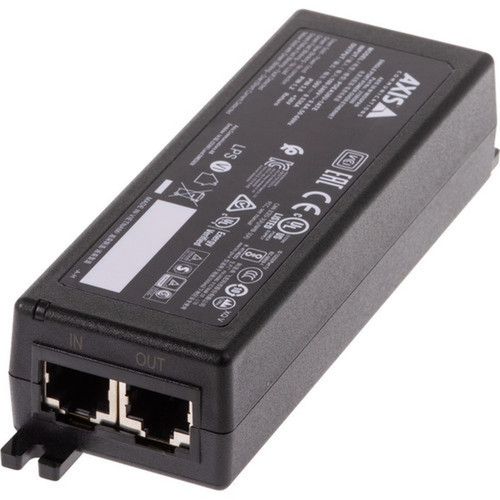

AXIS 02172-012 30W PoE Midspan Injector - 56V DC Output - 1x Gigabit Input - 1x PoE Output - Wall/Shelf/DIN Rail Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This midspan injector accepts dual-voltage AC input (120V or 230V) and provides a stable 56V DC output at up to 30 watts of power. The device incorporates a single Gigabit Ethernet input port that connects to your network switch or router, plus one PoE output port that delivers both data and power to the connected endpoint.
Built to industrial standards, the injector complies with IEEE 802.3af and IEEE 802.3at PoE specifications, ensuring interoperability with a wide range of Axis devices. Its electrical safety certifications include UL 60950-1 and UL 62368-1, while EMC compliance covers EN 55032 Class A, FCC Part 15 Subpart B Class A, and other regional standards.
Relevant factors for this section include Input Voltage, Maximum Output Voltage, Maximum Output Power, Input Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The AXIS 30W Midspan simplifies power delivery for Axis security ecosystems by eliminating the need for separate electrical wiring at each device location. Its compact, mountable design reduces clutter and supports organized cable management in constrained spaces.
Flexible Installation
Wall, shelf, and DIN rail mounting options provide adaptability for various deployment scenarios, from equipment racks to surface-mounted enclosures.
- No dedicated PoE switch required
- Easy retrofit into existing networks
- Minimal footprint for space-efficient layouts
Broad Device Compatibility
Officially validated for use with dozens of Axis fixed cameras, dome cameras, PTZ units, door controllers, intercoms, video encoders, and peripheral modules.
- Tested with Axis surveillance portfolio
- Supports PoE-powered accessories
- Ideal for mixed-device deployments
Deployment / Use Cases
This midspan injector is purpose-built for security and surveillance environments where reliable PoE power is essential. It serves as an ideal power source for Axis cameras and devices in locations where installing a full PoE switch is impractical or cost-prohibitive.
Common applications include extending power to a single Axis camera mounted in a remote corridor, powering a door controller in an access control system, or providing dedicated power to an intercom station. The unit also works well in retrofit scenarios where existing network infrastructure lacks PoE capability, allowing organizations to upgrade individual devices without overhauling their entire switching fabric.
Surveillance Camera Power
Deliver both data and power to Axis fixed, dome, or PTZ cameras over a single Ethernet cable, simplifying installation and reducing wiring complexity.
Access Control Integration
Power Axis door controllers and intercom units while maintaining network connectivity for access management systems and visitor communication.
Physical Profile
The midspan measures 1.81" (46 mm) wide by 5.52" (140.10 mm) deep by 1.18" (30 mm) high, with a lightweight construction of approximately 145 grams. Its black housing features integrated mounting points for secure attachment to walls, shelves, or standard DIN rails. The compact dimensions allow for dense installation in electrical cabinets or alongside other networking equipment without consuming excessive rack space.
- Width
- 1.81" (46 mm)
- Depth
- 5.52" (140.10 mm)
- Height
- 1.18" (30 mm)
- Weight
- 145 g
What's in the Box
Each unit ships with the complete components needed for immediate deployment.
Highlights
- 30W PoE midspan injector for Axis security devices
- 56V DC output compatible with IEEE 802.3af/at standards
- 1x Gigabit Ethernet input port + 1x PoE output port
- Accepts 120V or 230V AC input voltage
- Wall, shelf, and DIN rail mounting flexibility
- Compact black housing (1.81" x 5.52" x 1.18")
- Lightweight design at approximately 145 grams
- Includes installation guide and IEC-C13 power cable
- 3-year limited warranty for peace of mind
- Complies with UL, FCC, EN, and other safety/EMC standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02172-012 |
| Brand Name | AXIS |
| Product Name | 30 W Midspan |
| Product Type | PoE Injector |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Output Voltage | 56 V DC |
| Maximum Output Power | 30 W |
| Interfaces/Ports | |
| Input Ports | 1 x 10/100/1000 Mbps |
| Output Ports | 1 x PoE |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Wall/Shelf/DIN Rail Mountable |
| Height | 1.18" (30 mm) |
| Width | 1.81" (46 mm) |
| Depth | 5.52" (140.10 mm) |
| Weight (Approximate) | 145 g |
| Miscellaneous | |
| Package Contents | 30 W Midspan Installation Guide Cable Mains IEC-C13 |
| Certifications & Standards | IEEE 802.3af IEEE 802.3at Safety: UL 60950 - 1 UL 62368 - 1 CCC EMC: EN 55032Class A EN 6 1 000 - 6- 1 EN 6 1 000- 6- 2, FCC P art 15 Subpart B Class A ICES - 3(A)/NMB - 3(A), KC KN32Class A KC KN35 RCM AS/NZS CISPR 32Class A, VCCI Class A CISPR 24 EAC Environment: IEC 60068 - 2- 1 IEC 60068 - 2- 2 IEC 60068 - 2- 6 IEC 60068 - 2- 14 IEC 60068 - 2- 27 IEC 60068 - 2- 78 |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Vietnam |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What is the maximum power output of this PoE midspan?
The AXIS 02172-012 delivers up to 30 watts of power at 56 volts DC. This output level supports Power over Ethernet Plus (PoE+) devices that require higher power budgets, including many Axis PTZ cameras, thermal cameras, and devices with integrated heaters or blowers.
Which Axis devices are compatible with this midspan injector?
This midspan is validated for use with dozens of Axis products including fixed cameras (M1134, P1244, etc.), dome cameras (M3015, P3245-LV, etc.), PTZ cameras (Q6074, P5654-E), door controllers (A1001, A1601), intercoms (A8207-VE Mk II), video encoders (M7011, Q7411), and various peripheral modules. The extensive compatibility list covers most PoE-enabled Axis devices in surveillance and access control applications.
Can this midspan be mounted in a standard equipment rack?
Yes, the unit supports wall, shelf, and DIN rail mounting. For rack installation, you can mount it on a shelf within the rack or use DIN rail accessories to secure it to standard 35mm DIN rail commonly found in network and security equipment cabinets. Its compact dimensions allow multiple units to be installed side-by-side in dense configurations.
What input voltage does this PoE injector require?
The midspan accepts either 120V AC or 230V AC input, making it suitable for deployment in North American, European, and other international electrical systems. This dual-voltage capability eliminates the need for region-specific models and simplifies inventory management for organizations with global deployments.
Does this unit support Gigabit Ethernet speeds?
Yes, the input port is a 10/100/1000 Mbps Gigabit Ethernet interface that maintains full network throughput while delivering power. This ensures that connected devices like high-resolution Axis cameras can transmit video streams without bandwidth limitations, preserving image quality and frame rates in surveillance applications.
What certifications does this PoE midspan carry?
The device holds multiple safety and EMC certifications including UL 60950-1, UL 62368-1, FCC Part 15 Subpart B Class A, EN 55032 Class A, and various international standards. It also complies with IEEE 802.3af and 802.3at PoE specifications for interoperability. These certifications validate its suitability for commercial and industrial installations where regulatory compliance is required.
