AXIS 02349-001 M1055-L 2MP Full HD Network Camera - White Box - 59 ft IR Night Vision - Zipstream - H. 265 - PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera features Axis Zipstream technology, which optimizes bandwidth and storage usage without compromising video quality. It supports multiple video formats including H.264, H.265, and Motion JPEG, providing flexibility for different recording and streaming requirements.
The fixed 3.2 mm lens offers a wide 103° horizontal field of view, while the f/2.0 aperture ensures good low-light performance. Electronic image stabilization and wide dynamic range help maintain image clarity in challenging environments.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The M1055-L combines essential surveillance features with Axis's reliable engineering for consistent performance in professional installations. Its infrared night vision extends monitoring capability to 59 feet, while advanced analytics provide intelligent detection capabilities.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Advanced Video Analytics, Reliable Performance.
Advanced Video Analytics
Includes vehicle detection, human detection, and video content analytics for smarter surveillance with reduced false alarms.
- Vehicle Detection
- Human Detection
- Privacy Masking
- Video Content Analytics
Reliable Performance
Designed for continuous operation with day/night functionality, removable IR cut-off filter, and operation in temperatures from 32°F to 95°F.
- Day/Night Operation
- 85% Humidity Tolerance
- Electronic Image Stabilization
- White Balance Control
Deployment / Use Cases
The AXIS M1055-L is well-suited for indoor surveillance applications where reliable Full HD monitoring is required. Its compact box design and white finish make it appropriate for retail environments, office spaces, educational facilities, and small business security systems.
With PoE power and wired network connectivity, this camera integrates easily into existing network infrastructure. The memory card storage option provides local recording capability, while remote management enables centralized monitoring from security stations or mobile devices.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Retail & Commercial Security
Monitor entrances, sales floors, and storage areas with clear 1080p video and intelligent detection features.
Office & Institutional Monitoring
Provide coverage for corridors, common areas, and perimeter spaces with reliable 24/7 surveillance capability.
Physical Profile

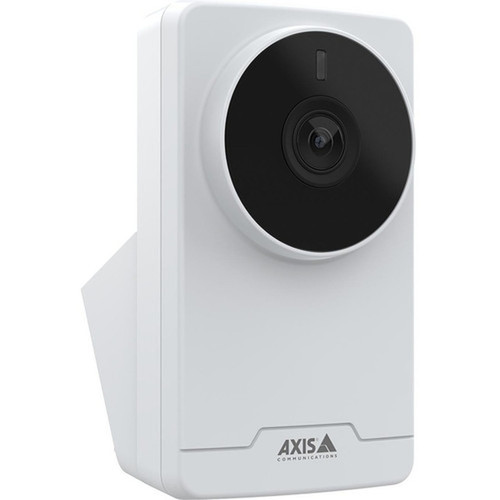

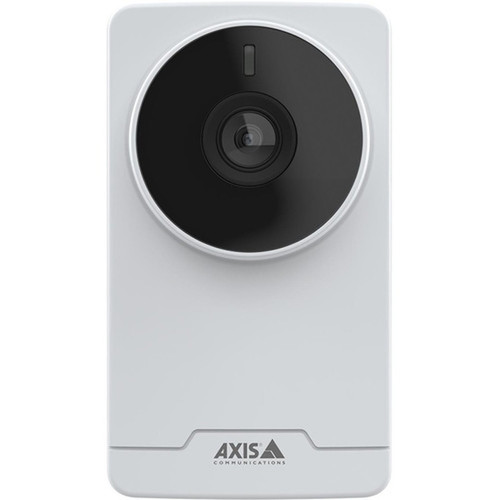

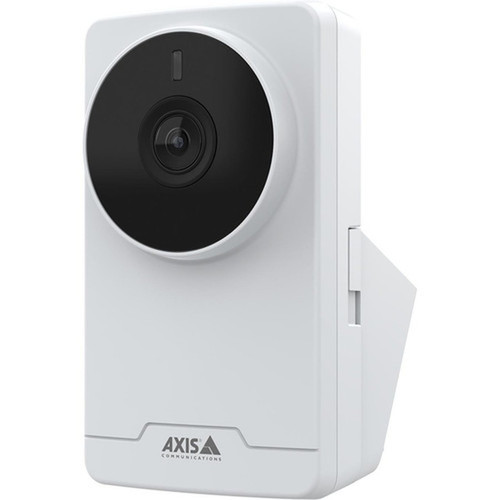

This network camera features a compact white box form factor weighing approximately 4.83 ounces (137 grams). The design supports standard mounting options for ceiling or wall installation, while the M12-mount lens provides flexibility for different viewing angles. The white color blends with most interior environments while maintaining professional appearance.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4.83 oz (137 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 4.83 oz (137 g)
- Length
- 3.2 mm (0.12")
Highlights
- 2-megapixel Full HD resolution at 30 fps for clear surveillance video
- 59-foot infrared night vision extends monitoring into low-light conditions
- Axis Zipstream technology optimizes bandwidth and storage efficiency
- PoE power simplifies installation with single-cable connectivity
- Advanced analytics including vehicle and human detection
- Wide 103° horizontal field of view for comprehensive coverage
- H.265 video compression support for efficient streaming
- Remote management capability for centralized control
- Memory card storage for local recording options
- Operating temperature range from 32°F to 95°F (0°C to 35°C)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02349-001 |
| Brand Name | AXIS |
| Product Series | M10 |
| Product Model | M1055-L |
| Product Name | M1055-L Box Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 59 ft (17.98 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Color Supported | Color |
| Field of View | Horizontal field of view 103° Vertical field of view 55° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | Zipstream,H.264H,H.264M,Motion JPEG,H.264M (MPEG-4 Part 10/AVC),H.264H (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC),H.264,H.265 |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 3.2 mm (0.12") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/2.0 |
| Exposure | |
| Shortest Shutter Speed | 1/19000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Power Source Type | PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Form Factor | Box |
| Weight (Approximate) | 4.83 oz (137 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 95°F (35°C) |
| Maximum Operating Humidity | 85% |
| Miscellaneous | |
| Features | Day/Night,Vehicle Detection,Video Content Analytics,Wide Dynamic Range,Electronic Image Stabilization,Removable IR Cut-off Filter,White Balance,Mirror,Privacy Masking,Human Detection |
User Manual
FAQ
What is the maximum resolution of the AXIS M1055-L camera?
The AXIS M1055-L delivers Full HD 1080p video at 1920 x 1080 resolution. This 2-megapixel camera captures clear, detailed images suitable for identification and monitoring purposes in business surveillance applications.
How far does the night vision reach on this network camera?
This camera features infrared night vision that extends to 59 feet (17.98 meters). The infrared illumination works with the removable IR cut-off filter to provide clear monochrome images in complete darkness for 24/7 surveillance capability.
What video compression formats does this camera support?
The M1055-L supports multiple video formats including Axis Zipstream, H.264, H.265, and Motion JPEG. H.265 (HEVC) provides efficient compression for bandwidth savings, while Zipstream optimizes storage without sacrificing critical image details.
How is the AXIS M1055-L powered?
This network camera is powered through Power over Ethernet (PoE), which delivers both data and power through a single network cable. This simplifies installation by eliminating the need for separate power cables near the camera location.
What analytics features are included with this camera?
The camera includes advanced video analytics such as vehicle detection, human detection, and video content analytics. These intelligent features help reduce false alarms and provide more meaningful security alerts by distinguishing between different types of motion and objects.
What is the field of view for this surveillance camera?
The fixed 3.2 mm lens provides a 103° horizontal field of view and 55° vertical field of view. This wide coverage area makes the camera suitable for monitoring larger spaces like retail floors, corridors, or entryways with a single unit.
