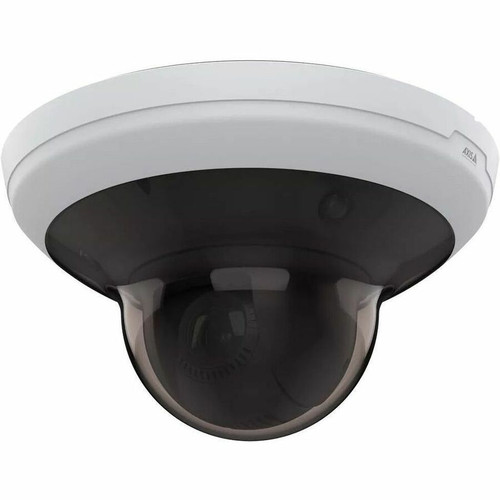

AXIS 02188-304 M5000-G 5MP Indoor Full HD Dome Network Camera - Color Night Vision - PTZ - Varifocal Lens - PoE/DC Power
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The camera uses a 1/2.8" RGB CMOS sensor with three sensors to achieve its 5MP resolution. It supports a wide range of video compression formats including H.264, H.265, Zipstream, and Motion JPEG, providing flexibility for different recording and bandwidth requirements.
Network connectivity is handled through Gigabit Ethernet with support for both wired and wireless configurations. The camera includes comprehensive protocol support for integration with various video management systems and network infrastructures.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
Color Night Vision
Maintains color video in low-light conditions, providing more usable surveillance footage compared to traditional infrared night vision.
- Enhanced detail recognition
- Better identification of objects and persons
- No switch to monochrome in darkness
PTZ with Varifocal Lens
Combines mechanical pan-tilt-zoom movement with a 10x optical zoom varifocal lens for comprehensive area coverage and detail capture.
- Remote control of viewing angle
- Optical zoom maintains image quality
- Flexible installation options
Dual Power Options
Supports both Power over Ethernet (PoE) and direct DC power input, simplifying installation in various environments.
- Reduced cabling with PoE
- Backup power flexibility
- Compatible with standard PoE switches
Deployment / Use Cases
The AXIS M5000-G is well-suited for indoor surveillance applications where detailed monitoring and flexible camera control are required. Its dome form factor provides discreet monitoring while the PTZ capabilities allow security personnel to cover large areas with a single camera.
Typical deployment scenarios include retail stores for monitoring sales floors and entrances, corporate offices for lobby and hallway surveillance, educational institutions for common area security, and healthcare facilities for patient area monitoring. The camera's color night vision makes it particularly valuable for locations that require 24/7 surveillance with usable video quality.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The camera features a dome enclosure measuring 9.72 inches in diameter and 5.43 inches in height, with a weight of approximately 4.3 pounds. Constructed from plastic and polycarbonate materials, it carries an IP51 ingress protection rating for dust protection and limited water resistance.
The dome design provides a discreet appearance while protecting the camera mechanism. The form factor is suitable for ceiling mounting in various indoor environments.
- Height
- 5.43" (138 mm)
- Weight
- 4.30 lb (1950.45 g)
- Length
- 4.7 mm (0.19")
What's in the Box
The package includes all necessary components for installation and initial setup of the camera system.
Highlights
- 5MP RGB CMOS sensor for detailed Full HD 1080p video
- Color night vision maintains video quality in low light
- PTZ (pan-tilt-zoom) with 10x optical varifocal lens
- Dome form factor with IP51 rating for indoor use
- Dual power options: PoE or 20/28V DC input
- Wide Dynamic Range (WDR) for challenging lighting
- Supports H.264, H.265, Zipstream compression
- Gigabit Ethernet with wired/wireless connectivity
- Includes audio support with built-in microphone
- 5-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02188-304 |
| Brand Name | AXIS |
| Product Series | M50 |
| Product Model | M5000-G |
| Product Name | M5000-G PTZ Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Type | Color |
| Camera Iris | Auto,P-iris |
| Wide Dynamic Range (WDR) | Yes |
| Infrared (IR) Cut-off Filter | Yes |
| Languages Support | English,German,French,Spanish,Italian,Russian,Simplified Chinese,Japanese,Korean,Portuguese,Polish,Traditional Chinese,Dutch,Czech,Swedish,Finnish,Turkish,Thai,Vietnamese |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | Horizontal field of view: 61.8°-6.7° Vertical field of view: 36.3°-3.8° |
| Effective Camera Resolution | 5 Megapixel |
| Number of Sensors | 3 |
| Video | |
| Video Formats | H.264,H.264B,H.264M,H.264H,Zipstream,H.265,Motion JPEG,H.264B (MPEG-4 Part 10/AVC),H.264M (MPEG-4 Part 10/AVC),H.264H (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC) |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 4.7 mm (0.19") |
| Maximum Focal Length | 47 mm (1.85") |
| Lens Included | Yes |
| Minimum Aperture | f/3 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 10x |
| Exposure | |
| Shortest Shutter Speed | 1/66500 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired & Wireless |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | IPv4,IPv6 USGv6,ICMPv4/ICMPv6,HTTP,HTTPS,HTTP/2,TLS,QoS,DiffServ (QoS),FTP,SFTP,CIFS/SMB,SMTP,mDNS (Bonjour),UPnP,SNMPv1/v2c/v3 (MIB2),DNS/DNSv6,DDNS,NTP,NTS,RTSP,RTP,RTCP,SRTP/RTSPS,TCP,UDP,IGMPv1/v2/v3,DHCPv4/v6,ARP,SSH,LLDP,CDP,MQTT v3.1.1 |
| Storage | |
| Storage Type | Memory Card |
| Internal Memory | 2 GB |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 13.40 W |
| Input Voltage | 20 V DC,28 V DC |
| Power Source Type | PoE,DC |
| Physical Characteristics | |
| Product Material | Plastic,Polycarbonate |
| Form Factor | Dome |
| Height | 5.43" (138 mm) |
| Diameter | 9.72" (247 mm) |
| Weight (Approximate) | 4.30 lb (1950.45 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Minimum Operating Humidity (Non-condensing) | 10% |
| Maximum Operating Humidity (Non-condensing) | 85% |
| Minimum Storage Humidity (Non-condensing) | 5% |
| Maximum Storage Humidity (Non-condensing) | 95% |
| Miscellaneous | |
| Features | PTZ,Video Management System,Wide Dynamic Range,Built-in Microphone,Audio Detection,Motion Detection,Removable IR Cut-off Filter,Day/Night,Password Protection,HTTPS Encryption,Privacy Masking |
| Indoor/Outdoor | Indoor |
| Package Contents | Installation Guide Windows decoder 1-user license drill hole template terminal block connectors connector guard bayonette screws |
| Ingress Protection Rating | IP51 |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What resolution does the AXIS M5000-G camera support?
The camera features a 5-megapixel RGB CMOS sensor that delivers Full HD video at 1920 x 1080 resolution. It captures video at up to 30 frames per second, providing smooth, detailed footage suitable for identification and monitoring purposes in surveillance applications.
How does the color night vision work on this camera?
The AXIS M5000-G maintains color video in low-light conditions through its advanced imaging technology. Unlike traditional cameras that switch to monochrome infrared mode at night, this camera continues to capture color video, providing more usable surveillance footage with better detail recognition for identifying objects and persons.
What are the PTZ capabilities of this camera?
This camera features full PTZ (pan-tilt-zoom) functionality combined with a 10x optical zoom varifocal lens. The mechanical movement allows remote control of the viewing angle, while the optical zoom maintains image quality when magnifying specific areas. This provides comprehensive coverage of large spaces from a single installation point.
What power options are available for this camera?
The camera supports dual power input methods: Power over Ethernet (PoE) and direct 20V/28V DC power. PoE simplifies installation by carrying both data and power over a single Ethernet cable, while the DC option provides flexibility for locations where PoE infrastructure isn't available or as a backup power solution.
What video compression formats does this camera support?
The camera supports multiple compression formats including H.264, H.265, Zipstream, and Motion JPEG. This flexibility allows optimization for different recording scenarios—H.265 and Zipstream provide efficient bandwidth usage, while Motion JPEG offers individual frame capture. The camera is compatible with most video management systems using these standard formats.
What is included in the warranty for this camera?
AXIS provides a 5-year limited warranty for the M5000-G camera. This warranty covers defects in materials and workmanship under normal use conditions, offering long-term reliability assurance for surveillance installations. The warranty period reflects the camera's design for continuous operation in professional security environments.
How much memory is installed?
It includes 2 GB of memory to support responsive multitasking and daily workloads.
