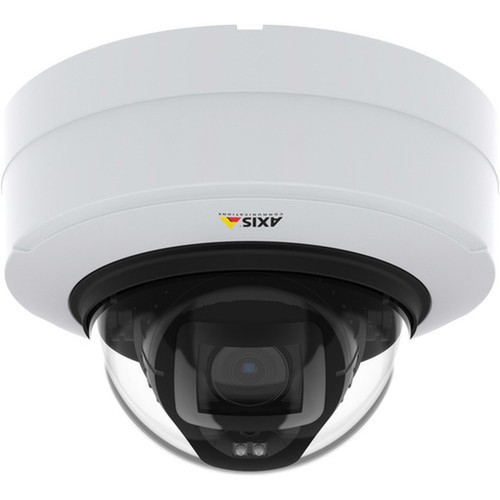

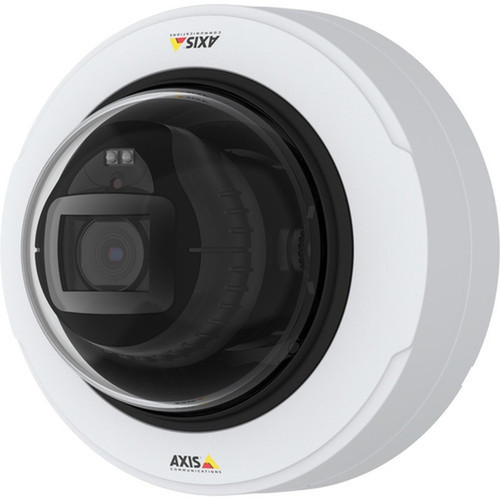

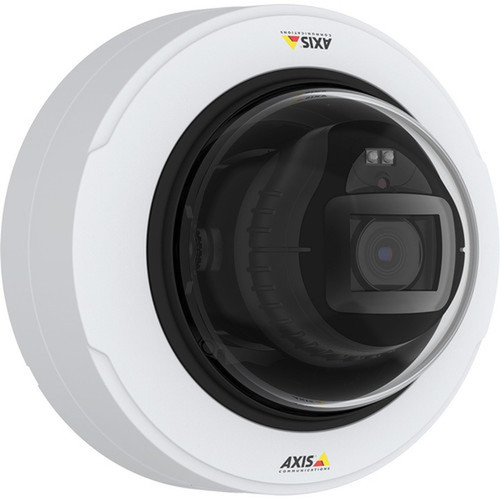

AXIS 01595-001 P3247-LV 5MP Dome Network Camera - 2592 x 1944 - 3-8mm Varifocal Lens - 131 ft Night Vision - H. 264/H. 265/MJPEG - IP52/IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera captures video through a high-sensitivity RGB CMOS sensor, producing 5-megapixel imagery at up to 30 frames per second. The imaging system includes a wide dynamic range and exposure control with shutter speeds from 1/33500 to 1/5 second, maintaining clarity in challenging lighting conditions. The varifocal lens provides a 2.7x optical zoom and an aperture of f/1.3, enhancing low-light performance and offering installation flexibility without lens replacement.
Network connectivity is wired via RJ-45, supporting remote management for configuration and monitoring. The camera operates across a broad temperature range from -40°F to 149°F (-40°C to 65°C) and up to 95% humidity, ensuring reliability in extreme climates. Its compact dimensions of 4.06" height and 5.87" diameter (103 mm x 149 mm) and weight of 1.59 lb (720 g) facilitate easy mounting in various locations.
Key Product Advantages
The AXIS P3247-LV combines high-resolution imaging with rugged durability, offering distinct advantages for surveillance deployments. Its 5-megapixel resolution provides superior detail over standard HD cameras, enhancing forensic review and real-time monitoring. The camera's environmental ratings and versatile mounting options make it adaptable to a wide range of installation scenarios, from retail stores to industrial facilities.
Enhanced Low-Light Performance
With a night vision range of 131.23 feet (40 meters) and a fast f/1.3 aperture, the camera delivers reliable surveillance in low-light conditions, reducing the need for additional lighting.
- 131.23 ft IR illumination
- f/1.3 aperture for light capture
- Wide dynamic range handling
Installation Flexibility
The varifocal lens allows adjustability from 3mm to 8mm, enabling precise framing during setup without changing hardware. Multiple mount types support junction box, wall, ceiling, and gang box installations.
- 3-8mm varifocal adjustment
- Junction box, wall, ceiling mounts
- Compact dome design
Durability and Protection
Rated IP52 for ingress protection against dust and water spray, and IK10 for impact resistance, the camera is built to withstand harsh environments and potential vandalism.
- IP52 weather resistance
- IK10 impact protection
- Extended temperature operation
Deployment / Use Cases
The AXIS P3247-LV is ideal for scenarios requiring detailed video surveillance with environmental resilience. Its high resolution and varifocal lens make it suitable for monitoring entrances, parking lots, warehouses, and retail floors where identification of people and objects is critical. The dome design and robust ratings support use in both controlled indoor settings and exposed outdoor locations.
Common applications include perimeter security for commercial buildings, asset protection in industrial sites, and general monitoring in educational or healthcare facilities. The camera's remote management capability allows integration into larger networked security systems, providing scalable surveillance solutions. Its compliance with modern video standards ensures compatibility with most network video recorders and video management software.
Commercial Entry Monitoring
Deploy at building entrances or lobbies to capture clear facial and license plate details with the 5MP sensor and adjustable field of view.
Industrial Perimeter Security
Use in outdoor areas with the IP52 and IK10 ratings to withstand weather and impacts while providing night vision coverage up to 131 feet.
Physical Profile
The camera features a dome enclosure measuring 4.06" in height and 5.87" in diameter (103 mm x 149 mm), with a weight of 1.59 lb (720 g). This compact and lightweight design simplifies installation on various surfaces including ceilings, walls, and junction boxes. The dome form factor offers a low-profile appearance that blends into environments while providing protection against tampering.
- Height
- 4.06" (103 mm)
- Weight
- 1.59 lb (720 g)
- Length
- 3 mm (0.12")
Highlights
- 5-megapixel resolution for detailed 2592 x 1944 video
- 3-8mm varifocal lens with 2.7x optical zoom for flexible framing
- Night vision range up to 131.23 feet (40 meters)
- Supports H.264, H.265, and MJPEG video compression
- IP52 rating for dust and water spray protection
- IK10 impact resistance rating for vandal-proof durability
- Operates in temperatures from -40°F to 149°F (-40°C to 65°C)
- Wired connectivity with RJ-45 and remote management support
- Multiple mounting options: junction box, wall, ceiling, gang box
- Made in Poland with high-quality construction
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 01595-001 |
| Brand Name | AXIS |
| Product Series | P32 |
| Product Model | P3247-LV |
| Product Name | P3247-LV Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision Distance | 131.23 ft (40 m) |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Color Supported | Color |
| Field of View | Horizontal field of view:104°-40° ; Vertical field of view:74°-29° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | H.264,H.265,MJPEG |
| Maximum Video Resolution | 2592 x 1944 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3 mm (0.12") |
| Maximum Focal Length | 8 mm (0.31") |
| Lens Included | Yes |
| Maximum Aperture | f/1.3 |
| Optical Zoom | 2.7x |
| Exposure | |
| Shortest Shutter Speed | 1/33500 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mount Type | Junction Box Mount,Wall Mount,Ceiling Mount,Gang Box Mount |
| Form Factor | Dome |
| Height | 4.06" (103 mm) |
| Diameter | 5.87" (149 mm) |
| Weight (Approximate) | 1.59 lb (720 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 149°F (65°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Ingress Protection |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP52 |
| Country of Origin | Poland |
FAQ
What is the resolution of the AXIS P3247-LV camera?
The AXIS P3247-LV captures video at 5 megapixels, with a maximum resolution of 2592 x 1944 pixels. This high resolution provides clearer images than standard HD cameras, allowing for better identification of details such as faces or license plates in surveillance footage.
How far does the night vision reach on this camera?
The camera offers night vision up to 131.23 feet (40 meters). This range is supported by infrared illumination, enabling reliable monitoring in low-light or no-light conditions without requiring additional external lighting.
What type of lens does the P3247-LV have?
It includes a varifocal lens with a focal length range from 3 mm to 8 mm, providing a 2.7x optical zoom. This allows you to adjust the field of view during installation, from a wide 104° horizontal angle at 3mm to a narrower 40° at 8mm, without changing the lens.
Is this camera suitable for outdoor use?
Yes, the camera is rated IP52 for ingress protection, meaning it resists dust and water spray, and IK10 for impact resistance, making it durable against vandalism. It operates in temperatures from -40°F to 149°F (-40°C to 65°C) and up to 95% humidity, suitable for most outdoor environments.
What video formats are supported?
The camera supports H.264, H.265, and MJPEG video formats. H.265 offers efficient compression for reduced bandwidth and storage needs, while H.264 ensures compatibility with older systems, and MJPEG provides simple image streaming.
How is the camera mounted and installed?
The dome design supports multiple mount types including junction box, wall, ceiling, and gang box mounts. Its compact size of 4.06" height and 5.87" diameter (103 mm x 149 mm) and weight of 1.59 lb (720 g) make it easy to install in various locations, with wired connectivity via RJ-45 for network integration.
What display size or resolution is listed?
It features a display specification of 5 Megapixel, giving you clear visuals for work and media use.
