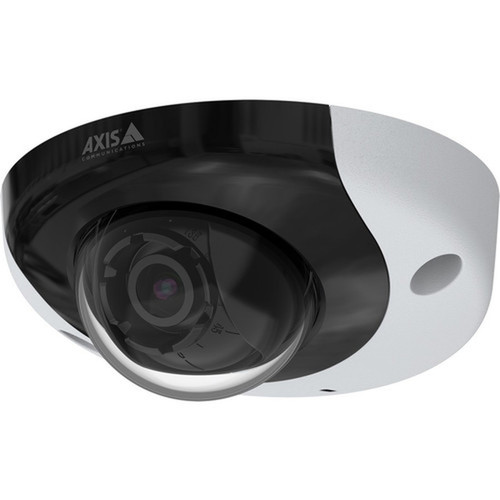

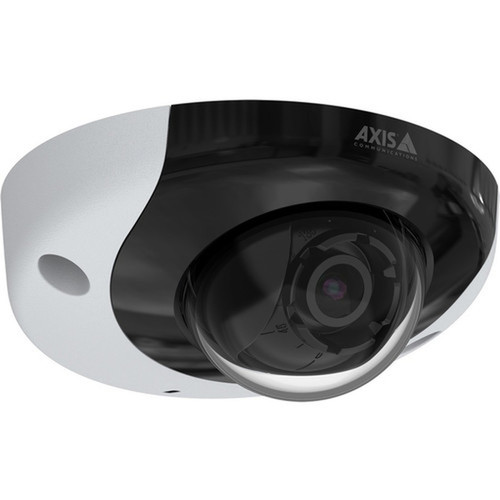

AXIS 01932-001 P3935-LR Full HD Dome Network Camera - Color - 49. 21 ft Infrared Night Vision - H. 264/H. 265 - IK10/IP66/IP67
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The P3935-LR utilizes an RGB CMOS image sensor with a fixed 2.8mm f/1.6 lens mounted in an M12 interface, providing a wide 110° horizontal and 62° vertical field of view. Advanced imaging features include wide dynamic range, electronic image stabilization, defog functionality, and automatic day/night switching with a removable IR cut-off filter. The camera supports shutter speeds from 1/33500 second to 2 seconds, accommodating various lighting conditions.
Network connectivity is handled through a wired RJ-45 interface with support for remote management and local storage via memory card. Security features include HTTPS encryption, password protection, privacy masking, and active tampering alarm. The camera operates across an extensive temperature range from -40°F to 158°F (-40°C to 70°C) and up to 100% humidity, ensuring reliability in challenging environmental conditions.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This AXIS dome camera combines high-performance imaging with exceptional durability for reliable surveillance in commercial and industrial settings. The integrated infrared illumination system delivers consistent night vision performance without requiring external lighting, while the vandal-resistant dome housing protects against physical damage and environmental elements.
Industrial Durability
IK10 impact rating and IP66/IP67 protection ensure resistance to vandalism, water, dust, and corrosion for long-term outdoor operation.
- Vandal Resistant
- Water Resistant
- Dust Resistant
- Corrosion Resistant
Advanced Surveillance Features
Comprehensive monitoring capabilities include audio detection, motion detection, shock detection, and PTZ functionality for enhanced security coverage.
- Audio Detection
- Motion Detection
- Shock Detection
- PTZ Support
Deployment / Use Cases
The P3935-LR is designed for perimeter security, entry point monitoring, and indoor surveillance applications where reliable 24/7 coverage is essential. Its durable construction and wide operating temperature range make it ideal for parking facilities, warehouses, retail environments, and industrial sites that require robust surveillance solutions.
The camera's multiple mounting options provide installation flexibility for ceiling, wall, or pendant configurations. The included installation guide, drill hole template, and lens tool simplify deployment, while the Windows decoder license enables immediate integration with compatible surveillance software. This camera supports both standalone operation with local storage and integration into larger network video recorder systems for centralized management.
Physical Profile
The dome camera measures 1.94 inches (49.40 mm) in height with a 4.33 inch (110 mm) diameter, presenting a compact profile suitable for discreet installation. Weighing approximately 14.46 ounces (410 grams), the unit maintains a low physical footprint while housing the imaging sensor, infrared illuminators, and processing electronics. The white dome housing provides neutral aesthetics that blend with various architectural environments.
- Height
- 1.94" (49.40 mm)
- Weight
- 14.46 oz (410 g)
- Length
- 2.8 mm (0.11")
What's in the Box
The package includes all necessary components for immediate deployment and integration into your surveillance infrastructure.
Highlights
- Full HD 1920x1080 resolution at 45 fps for detailed surveillance footage
- Infrared night vision up to 49.21 ft (15 m) for 24/7 monitoring capability
- IK10 impact and IP66/IP67 environmental protection ratings
- Wide 110° horizontal field of view with fixed 2.8mm f/1.6 lens
- H.264, H.265, and Motion JPEG video format support
- Wired RJ-45 connectivity with remote management capabilities
- Memory card support for local storage options
- TAA compliant for government and institutional procurement
- 5-year limited warranty for long-term reliability assurance
- Multiple mounting options: bracket, pendant, and wall mount
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 01932-001 |
| Brand Name | AXIS |
| Product Series | P39 |
| Product Model | P3935-LR |
| Product Name | P3935-LR Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 49.21 ft (15 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Color Supported | Color |
| Field of View | Horizontal field of view: 110° - Vertical field of view: 62° |
| Video | |
| Video Formats | H.264,H.264 (MPEG-4 Part 10/AVC),H.264 BP,H.264 (MP),H.264 HP,H.265,H.265 (MPEG-H Part 2/HEVC),H.265 (MP),Motion JPEG |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 45 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/33500 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mount Type | Bracket Mount,Pendant Mount,Wall Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant,Water Resistant,Corrosion Resistant,Dust Resistant,Impact Resistant |
| Height | 1.94" (49.40 mm) |
| Diameter | 4.33" (110 mm) |
| Weight (Approximate) | 14.46 oz (410 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 158°F (70°C) |
| Maximum Operating Humidity | 100% |
| Miscellaneous | |
| Features | Wide Dynamic Range,Built-in IR LED,Built-in Microphone,Audio Detection,Electronic Image Stabilization,Day/Night,Removable IR Cut-off Filter,Built-in Infrared Illuminator,White Balance,Privacy Masking,Defog,PTZ,Microphone In,Password Protection,HTTPS Encryption,SD Card Local Storage,Motion Detection,Active Tampering Alarm,Shock Detection |
| Package Contents | P3935-LR Network Camera Installation Guide Windows decoder 1-user License Drill Hole Template Lens Tool Resistorx L-Key |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP67 |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 5 Year |
FAQ
What is the maximum video resolution of the AXIS P3935-LR camera?
The AXIS P3935-LR captures Full HD video at 1920 x 1080 resolution. This provides clear, detailed imagery suitable for identifying individuals, license plates, and other important details in surveillance applications. The camera maintains this resolution at up to 45 frames per second for smooth motion capture.
How far does the night vision reach on this dome camera?
The integrated infrared illuminators provide effective night vision up to 49.21 feet (15 meters). This infrared night vision system operates without visible light, making it ideal for discreet surveillance in complete darkness. The camera automatically switches between day and night modes using a removable IR cut-off filter.
What durability ratings does this surveillance camera have?
The P3935-LR features IK10 impact protection and IP66/IP67 ingress protection ratings. IK10 represents the highest level of impact resistance against vandalism, while IP66 provides protection against powerful water jets and IP67 allows temporary immersion. These ratings ensure reliable operation in challenging indoor and outdoor environments.
What video compression formats does this network camera support?
This camera supports H.264, H.265 (HEVC), and Motion JPEG video formats. The H.264 support includes multiple profiles (BP, MP, HP) for bandwidth-efficient streaming. H.265 provides improved compression for reduced storage requirements while maintaining video quality. This format flexibility allows integration with various surveillance systems and recording platforms.
What mounting options are available for installation?
The dome camera supports bracket mount, pendant mount, and wall mount configurations. This installation flexibility allows deployment on ceilings, walls, or suspended from overhead structures. The package includes a drill hole template and installation guide to streamline the mounting process for different surveillance scenarios.
Does this camera include any warranty coverage?
AXIS provides a 5-year limited warranty for the P3935-LR network camera. This extended warranty period reflects the product's durability and reliability for continuous surveillance operation. The warranty covers manufacturing defects and ensures long-term support for your security investment.
