AXIS 02148-004 Q6078-E 8MP Outdoor 4K PTZ Dome Network Camera - 20x Optical Zoom - H. 265/H. 264 - IP66/67 - IK10 - 5-Year Warranty
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the Q6078-E is an 8-megapixel RGB CMOS image sensor capable of capturing 3840 x 2160 resolution video at up to 60 frames per second. This high frame rate ensures smooth motion rendition critical for monitoring fast-moving subjects or events. The camera supports modern compression standards including H.265 (HEVC) and H.264 (AVC) alongside Motion JPEG, providing flexibility for bandwidth management and storage optimization in various network environments.
The integrated 20x optical zoom varifocal lens offers focal lengths from 4.4 mm (wide) to 88.4 mm (telephoto), delivering both broad area coverage and detailed close-up capability without digital interpolation. This optical zoom is complemented by electronic image stabilization, defog, and wide dynamic range processing to maintain image quality across challenging lighting conditions and camera movements.
Key Product Advantages
The Q6078-E combines high-resolution imaging with industrial-grade durability and intelligent features that distinguish it in professional surveillance applications. Its comprehensive environmental protection and vandal resistance ratings make it suitable for installation in locations where cameras face extreme weather or potential physical interference.
Advanced Imaging Performance
The 8MP sensor and 60 fps capability deliver exceptionally detailed and fluid video, while features like electronic image stabilization, defog, and backlight compensation ensure consistent image quality across diverse operational scenarios.
- 8-megapixel RGB CMOS sensor
- 60 fps at 4K resolution
- Electronic image stabilization
- Wide dynamic range processing
Robust Environmental Protection
With IP66/IP67 ingress protection against dust and water immersion, plus IK10 impact resistance, this camera is built to withstand harsh outdoor environments and potential vandalism attempts.
- IP66/IP67 rated
- IK10 impact protection
- Operates from -58°F to 122°F
- 100% humidity tolerance
Intelligent Surveillance Features
Built-in analytics including motion detection, cross line detection, and privacy masking enable automated monitoring and compliance with privacy regulations without requiring external processing hardware.
- Motion detection
- Cross line detection
- Privacy masking
- Password protection & HTTPS encryption
Deployment / Use Cases

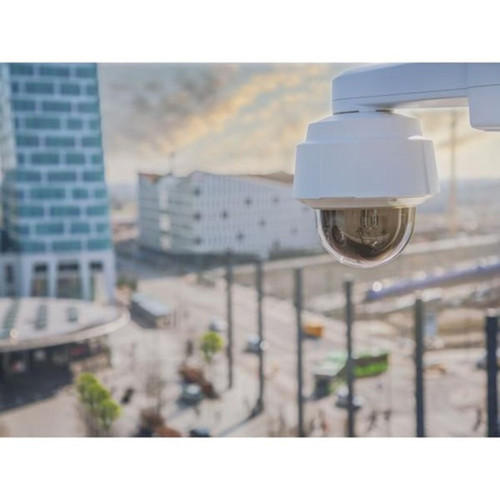

The AXIS Q6078-E is designed for perimeter security, critical infrastructure monitoring, transportation hubs, and commercial facilities where high-resolution coverage of large areas is required. Its 20x optical zoom allows operators to digitally pan, tilt, and zoom to investigate incidents without physically repositioning the camera, making it ideal for applications where detailed identification at distance is necessary.
The camera's extensive mounting options—including ceiling, wall, corner, pole, parapet, pendant, bracket, and recessed mounts—provide installation flexibility for both new construction and retrofit projects. The PoE power capability simplifies deployment by carrying both data and power over a single Ethernet cable, reducing installation complexity and cost in outdoor environments where power outlets may be limited or expensive to provision.
Perimeter and Border Security
The long zoom range and high-resolution imaging enable detailed monitoring of fence lines, entry points, and restricted areas from centralized positions, reducing the number of cameras required for comprehensive coverage.
Critical Infrastructure Protection
Industrial facilities, utilities, and transportation hubs benefit from the camera's environmental toughness and advanced analytics for monitoring equipment, detecting unauthorized access, and ensuring operational security in challenging conditions.
Physical Profile

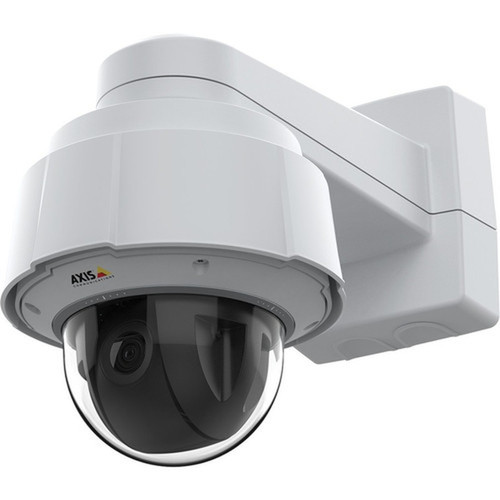

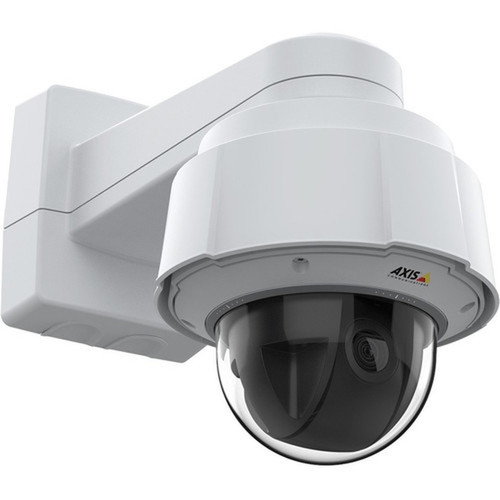

Housed in a white dome enclosure measuring 10.60" in height and 9.13" in diameter, the Q6078-E presents a discreet profile suitable for both visible and covert surveillance applications. The dome form factor helps protect the lens from weather elements and makes the camera's viewing direction less obvious to subjects. Despite its robust construction, the camera maintains a manageable weight of 8.27 pounds for installation on various mounting surfaces without requiring excessive structural support.
- Width
- 9.13" (232 mm)
- Height
- 10.60" (269.24 mm)
- Weight
- 8.27 lb (3750 g)
- Length
- 4.4 mm (0.17")
What's in the Box
The package includes all necessary components for immediate deployment of the camera in a PoE-enabled network environment.
Highlights
- 8-megapixel 4K Ultra HD resolution at 60 frames per second
- 20x optical zoom varifocal lens for wide area coverage and detailed close-ups
- IP66/IP67 and IK10 ratings for dust, water, and impact resistance
- Power over Ethernet (PoE) support simplifies installation
- H.265 (HEVC) and H.264 (AVC) compression for efficient bandwidth use
- Operates in extreme temperatures from -58°F to 122°F (-50°C to 50°C)
- Multiple mounting options including ceiling, wall, pole, and corner mounts
- 5-year limited warranty for long-term deployment confidence
- TAA compliant for U.S. government procurement
- Advanced features including electronic image stabilization, defog, and privacy masking
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02148-004 |
| Brand Name | AXIS |
| Product Series | Q60 |
| Product Model | Q6078-E |
| Product Name | Q6078-E PTZ Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Color Supported | Color |
| Field of View | 68.3°-4.2° - 42.1°-2.34° |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | H.264 (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC),Motion JPEG,H.264,H.265,H.264 BP,H.264 (MP),H.264 HP,H.265 (MP),Zipstream,H.264B,H.264H,H.264M |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 4.4 mm (0.17") |
| Maximum Focal Length | 88.4 mm (3.48") |
| Lens Included | Yes |
| Minimum Aperture | f/3.8 |
| Maximum Aperture | f/2 |
| Optical Zoom | 20x |
| Exposure | |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 240 V AC |
| Power Source Type | PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Corner Mount,Bracket Mount,Ceiling Mount,Pole Mount,Parapet Mount,Wall Mount,Pendant Mount,Recessed Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant,Dust Resistant,Rain Resistant,Snow Resistant,Impact Resistant |
| Height | 10.60" (269.24 mm) |
| Width | 9.13" (232 mm) |
| Diameter | 9.13" (232 mm) |
| Weight (Approximate) | 8.27 lb (3750 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -58°F (-50°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 100% |
| Miscellaneous | |
| Features | PTZ,Day/Night,Wide Dynamic Range,White Balance,Privacy Masking,Electronic Image Stabilization,Defog,Back Light Compensation (BLC),Password Protection,HTTPS Encryption,Cross Line Detection,Motion Detection |
| Indoor/Outdoor | Outdoor |
| Package Contents | Q6078-E PTZ Camera Axis High PoE 60 W SFP Midspan 1-Port RJ45 Push - Pull Connector (IP66) Sunshield Installation Guide Windows Decoder 1-User License |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP67 |
| Country of Origin | Mexico |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the maximum resolution and frame rate of the AXIS Q6078-E camera?
The AXIS Q6078-E captures 8-megapixel video at 3840 x 2160 resolution (4K Ultra HD) with a maximum frame rate of 60 frames per second. This high frame rate ensures smooth motion rendition for monitoring fast-moving subjects and provides exceptional detail for both real-time viewing and forensic analysis.
What type of zoom capability does this camera offer?
This camera features a 20x optical zoom varifocal lens with focal lengths ranging from 4.4 mm (wide angle) to 88.4 mm (telephoto). Optical zoom maintains full image quality throughout the zoom range, unlike digital zoom which simply crops the image. The varifocal design allows adjustment of the field of view during installation to optimize coverage for specific surveillance needs.
Is the Q6078-E suitable for outdoor installation in harsh environments?
Yes, the Q6078-E is specifically designed for demanding outdoor applications. It carries IP66 and IP67 ingress protection ratings against dust and water immersion, plus an IK10 impact resistance rating. The camera operates reliably in temperatures from -58°F to 122°F (-50°C to 50°C) and tolerates up to 100% humidity, making it suitable for installation in extreme weather conditions.
How is the camera powered and connected to the network?
The camera supports Power over Ethernet (PoE) using the included Axis High PoE 60 W SFP midspan injector, which delivers both data and power over a single Ethernet cable. This simplifies installation by eliminating the need for separate power wiring at the camera location. The camera connects via a standard RJ-45 network interface for wired connectivity.
What video compression formats does the camera support?
The Q6078-E supports H.265 (HEVC), H.264 (AVC), and Motion JPEG compression formats. H.265 provides approximately 50% better compression efficiency than H.264, reducing bandwidth and storage requirements for 4K video. The camera also supports Axis Zipstream technology, which further optimizes bandwidth by reducing data in less critical areas of the image while maintaining detail where it matters most.
What mounting options are available for this dome camera?
The camera supports eight different mounting configurations: corner mount, bracket mount, ceiling mount, pole mount, parapet mount, wall mount, pendant mount, and recessed mount. This flexibility allows installation on various surfaces and structures to achieve optimal viewing angles for different surveillance scenarios, from building perimeters to parking facilities.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
