AXIS 02023-004 V5938 Indoor 4K PTZ Network Camera - Color Turret - White - 20x Optical Zoom - 3840 x 2160 - H. 265/H. 264
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera captures video at 4K Ultra HD resolution (3840x2160) with a maximum frame rate of 60 fps, ensuring smooth, detailed surveillance footage. The 20x optical zoom and varifocal lens allow precise framing from wide-angle to tight close-ups, with a horizontal field of view ranging from 70.2° to 4.1°.
Video encoding includes H.265, H.264, and Motion JPEG formats, providing flexibility for storage and streaming. The camera supports analog video output via SDI and 3G/HD-SDI interfaces, and includes HDMI for local monitoring. Network connectivity is wired through an RJ-45 port, and storage is handled via memory card for local recording.
This section brings together practical product details such as HD Recording, Recording Formats, Image Sensor Type, Color Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The V5938 integrates multiple surveillance features into a single unit, including day/night operation with a removable IR cut-off filter, wide dynamic range for challenging lighting, and electronic image stabilization. Security enhancements like password protection, HTTPS encryption, and audio detection add layers of protection for networked video streams.
High-Resolution Imaging
The 4K resolution and RGB CMOS sensor deliver sharp, color-accurate video, essential for identifying details in surveillance scenarios.
- 3840x2160 resolution
- RGB CMOS sensor
- Color imaging
Advanced Zoom and Lens Control
With 20x optical zoom and a varifocal lens, operators can adjust the field of view remotely, covering both wide areas and specific points of interest.
- 20x optical zoom
- Varifocal lens
- Remote PTZ control
Deployment / Use Cases
This camera is suited for indoor environments such as offices, warehouses, schools, and healthcare facilities where detailed visual monitoring is required. Its turret form factor and white finish allow for discreet installation on walls or ceilings, blending into commercial interiors.
The wired connectivity and 12V DC power input ensure reliable operation in fixed installations, while remote management capabilities enable centralized control from security stations. Features like auto-tracking and defog enhance performance in dynamic or variable conditions.
Retail and Commercial Security
Monitor sales floors, entrances, and storage areas with 4K clarity and PTZ control, using motion detection to alert staff to unusual activity.
Educational and Institutional Facilities
Deploy in corridors, common areas, or auditoriums where high-resolution zoom capabilities help identify individuals and track movements across large spaces.
Physical Profile

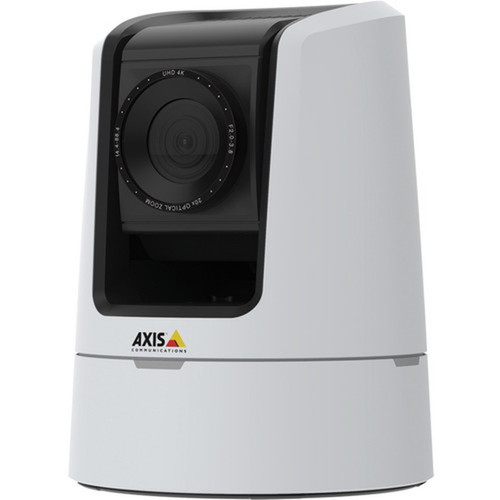

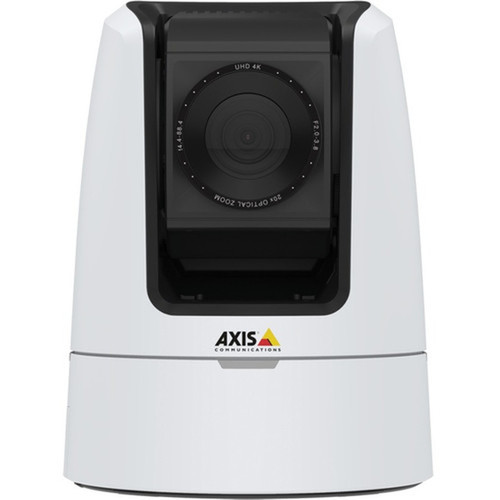

The V5938 features a turret design with a white finish, measuring 7.09 inches in height and 5.35 inches in diameter. It weighs approximately 3.31 pounds and supports both wall and ceiling mounting. The compact form factor facilitates installation in tight spaces while maintaining a professional appearance.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 7.09" (180 mm), 3.31 lb (1500 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 7.09" (180 mm)
- Weight
- 3.31 lb (1500 g)
- Length
- 4.4 mm (0.17")
What's in the Box
The package includes the V5938 PTZ Network Camera, a power supply, wall/ceiling mount hardware, a terminal connector for I/O, an installation guide, and a Windows decoder user license.
Highlights
- 4K Ultra HD resolution (3840x2160) for detailed surveillance footage
- 20x optical zoom with varifocal lens for flexible field-of-view adjustment
- H.265 and H.264 video encoding for efficient bandwidth and storage use
- PTZ control with remote management capabilities
- RGB CMOS sensor for color imaging in various lighting conditions
- Supports motion detection, audio detection, and auto-tracking features
- Turret form factor with white finish for discreet indoor installation
- Includes HDMI and SDI outputs for local monitoring and analog video
- TAA compliant and backed by a 5-year limited warranty
- Operates in temperatures from 32°F to 104°F (0°C to 40°C)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02023-004 |
| Brand Name | AXIS |
| Product Series | V59 |
| Product Model | V5938 |
| Product Name | V5938 PTZ Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Color Supported | Color |
| Field of View | Horizontal field of view: 70.2°-4.1° Vertical field of view: 39.5°-2.3° |
| Video | |
| Video Formats | H.265,H.264,Motion JPEG,H.264 (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC),H.264 BP,H.264 (MP),H.265 (MP),H.264 HP |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 60 fps |
| Analog Video Signal Format | SDI,3G/HD-SDI |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 4.4 mm (0.17") |
| Maximum Focal Length | 88 mm (3.46") |
| Lens Included | Yes |
| Minimum Aperture | f/3.8 |
| Maximum Aperture | f/2 |
| Optical Zoom | 20x |
| Exposure | |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Wall Mount,Ceiling Mount |
| Form Factor | Turret |
| Height | 7.09" (180 mm) |
| Diameter | 5.35" (136 mm) |
| Weight (Approximate) | 3.31 lb (1500 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Humidity | 85% |
| Miscellaneous | |
| Features | PTZ,Day/Night,Removable IR Cut-off Filter,Noise Reduction,Wide Dynamic Range,White Balance,Back Light Compensation (BLC),Defog,Highlight Compensation (HLC),Electronic Image Stabilization,Password Protection,HTTPS Encryption,Audio Detection,Motion Detection,Auto Tracking,SD Card Local Storage |
| Indoor/Outdoor | Indoor |
| Package Contents | V5938 PTZ Network Camera Power Supply Wall/Ceiling Mount Terminal Connector for I/O Installation Guide Windows Decoder user License |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the maximum resolution of the AXIS V5938 camera?
The AXIS V5938 captures video at 4K Ultra HD resolution, specifically 3840 x 2160 pixels. This high resolution provides clear, detailed imagery suitable for identifying faces, license plates, and other critical details in surveillance applications.
Does this camera support optical zoom?
Yes, the V5938 includes a 20x optical zoom with a varifocal lens. This allows remote adjustment of the focal length from 4.4 mm to 88 mm, enabling operators to zoom in on specific areas without losing image quality, unlike digital zoom.
What video formats does the V5938 support?
This camera supports H.265, H.264, and Motion JPEG video formats. H.265 and H.264 are efficient compression standards that reduce bandwidth and storage requirements while maintaining high video quality, making them ideal for network surveillance systems.
Can the V5938 be used for outdoor surveillance?
No, the V5938 is designed for indoor use only. It operates within a temperature range of 32°F to 104°F (0°C to 40°C) and is not rated for outdoor conditions. For outdoor applications, consider AXIS models specifically built for exterior environments.
What mounting options are available for this camera?
The V5938 supports both wall mounting and ceiling mounting, thanks to its turret form factor. The package includes the necessary hardware for installation, allowing flexible placement in commercial or institutional settings to achieve optimal viewing angles.
Does the camera include local storage support?
Yes, the V5938 supports local storage via a memory card. This allows for on-device recording without requiring continuous network connectivity to a central recorder, providing redundancy and flexibility in storage configurations.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
