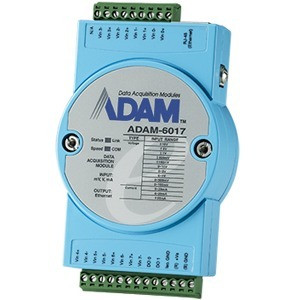

B+B SmartWorx ADAM-6017-D 8-Channel Isolated Analog Input Modbus TCP Module with 2 Digital Outputs - Fast Ethernet 10/100Base-TX - 0. 10 km Twisted
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ADAM-6017-D implements industrial-grade isolation on all eight analog input channels, ensuring accurate signal measurement in electrically noisy environments while protecting sensitive control systems from ground loops and voltage spikes. The module's Modbus TCP protocol support enables seamless integration with SCADA systems, PLCs, and industrial automation software through standard Ethernet networks.
Network connectivity is handled through a single RJ-45 port that supports auto-negotiation and auto-MDI/MDIX functionality, simplifying installation and reducing configuration complexity. The device operates on DC power and complies with RoHS environmental standards, making it suitable for deployment in facilities with strict environmental requirements.
Key Product Advantages
This module delivers precise industrial monitoring capabilities with the reliability needed for continuous operation in demanding environments. The combination of isolated analog inputs and digital outputs in a single compact device reduces system complexity while maintaining measurement accuracy across all channels.
Signal Integrity Protection
Eight-channel isolation prevents ground loops and electrical noise from compromising analog measurement accuracy, ensuring reliable data acquisition in industrial settings.
- Protects against voltage spikes
- Eliminates ground loop issues
- Maintains measurement precision
Network Integration Simplicity
Standard Modbus TCP protocol support enables straightforward integration with existing industrial automation systems without requiring proprietary software or complex configuration.
- Industry-standard protocol
- Ethernet network compatibility
- Reduced integration time
Deployment / Use Cases
The ADAM-6017-D is engineered for industrial automation applications where reliable analog signal monitoring and digital control are required across distributed networks. Its compact form factor and Ethernet connectivity make it ideal for integration into existing industrial infrastructure without extensive rewiring or system modifications.
Typical deployment scenarios include process monitoring in manufacturing facilities, environmental parameter tracking in utility plants, and equipment status monitoring in industrial complexes. The module's 0.10 km distance capability supports installations where monitoring points are distributed across larger areas, while the twisted pair media compatibility leverages existing cabling infrastructure.
Industrial Process Monitoring
Monitor temperature, pressure, flow, and other analog process variables across multiple points while controlling digital actuators through the integrated outputs.
Facility Management Systems
Integrate with building automation systems to monitor environmental conditions and control equipment through standard Ethernet networks.
Highlights
- Eight isolated analog input channels for precise industrial signal measurement
- Two digital output channels for control and actuation functions
- Modbus TCP protocol support for seamless industrial network integration
- Fast Ethernet 10/100Base-TX connectivity with auto-negotiation
- Twisted pair media support up to 0.10 km distance
- Single RJ-45 network port with auto-MDI/MDIX functionality
- DC power operation for flexible installation options
- RoHS compliant construction for environmental responsibility
- Industrial-grade isolation protects against electrical noise and ground loops
- Compact transceiver/media converter form factor for space-constrained installations
Specifications
| Specifications | |
|---|---|
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | ADAM-6017-D |
| Brand Name | B+B SmartWorx |
| Product Series | ADAM-6000 |
| Product Model | ADAM-6017 |
| Product Name | 8-ch Isolated Analog Input Modbus TCP Module with 2-ch DO |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Maximum Distance Supported | 0.10 km |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX |
| Power Description | |
| Power Source | DC |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
FAQ
What types of analog signals can the ADAM-6017-D module measure?
The ADAM-6017-D is designed for industrial analog signal acquisition with eight isolated input channels. While specific voltage or current ranges aren't detailed in product details, the isolation technology ensures accurate measurement of standard industrial signals such as 4-20 mA current loops, 0-10 VDC voltage signals, and thermocouple or RTD inputs commonly used in process monitoring applications. The isolation protects against ground loops and electrical noise that can compromise measurement accuracy in industrial environments.
How does the Modbus TCP protocol integration work with this module?
The ADAM-6017-D implements the industry-standard Modbus TCP protocol over its Fast Ethernet 10/100Base-TX interface. This allows the module to communicate directly with SCADA systems, PLCs, and industrial automation software through standard Ethernet networks without requiring additional protocol converters. The single RJ-45 port supports auto-negotiation and auto-MDI/MDIX, simplifying network integration and enabling plug-and-play connectivity in most industrial networking environments.
What is the maximum distance supported for reliable data transmission?
This module supports reliable data transmission up to 0.10 km (100 meters) when using twisted pair cabling. This distance capability makes it suitable for distributed industrial installations where monitoring points may be spread across larger areas within a facility. The Fast Ethernet 10/100Base-TX technology maintains data transfer rates up to 100 Mbps across this distance, ensuring timely delivery of analog measurement data and digital control signals.
What power requirements does this industrial module have?
The ADAM-6017-D operates on DC power, providing flexibility for integration into various industrial power systems. While specific voltage requirements aren't detailed, DC power operation typically allows for connection to standard industrial power supplies or UPS systems, ensuring reliable operation even during power fluctuations. The module's RoHS compliance also indicates environmentally responsible manufacturing practices suitable for facilities with strict environmental standards.
