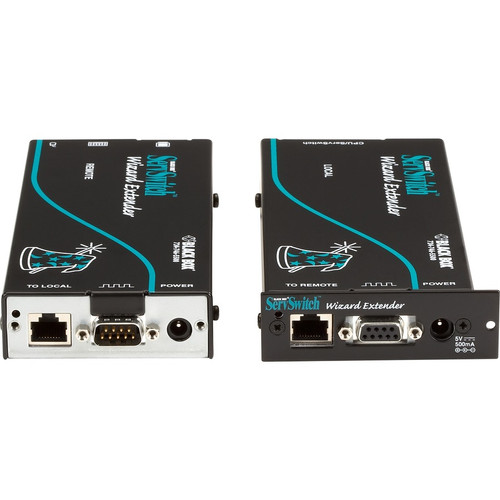

Black Box ACU5110A Wizard KVM Extender - VGA - PS/2 - RS232 - Single-Access - CATx - 984.20 ft Distance - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ACU5110A uses wired connectivity technology to transmit KVM signals over standard CATx cables, eliminating the need for dedicated fiber or coaxial runs. It features three VGA ports, two PS/2 ports, and two RJ-45 network ports, providing flexible connection options for various configurations.
Skew compensation technology corrects timing differences between video and data signals that can occur over extended distances, ensuring synchronized display and input response. The extender supports a maximum video resolution of 1600 x 1200, suitable for most server management and industrial control applications.
Relevant factors for this section include Connectivity Technology, Number of Local Users Supported, Number of Remote Users Supported, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ACU5110A provides reliable KVM extension without requiring specialized cabling or complex configuration. Its single-access design simplifies deployment while supporting multiple users simultaneously, making it suitable for both dedicated and shared management scenarios.
Extended Distance Operation
With support for distances up to 984.20 feet, this KVM extender enables remote equipment management beyond typical cable limitations, reducing the need for on-site access in distributed environments.
Legacy Interface Support
The inclusion of VGA, PS/2, and RS232 interfaces ensures compatibility with older servers, industrial controllers, and specialized equipment that may not have modern display or USB connections.
Rack Integration Ready
Designed for rack-mountable installation, the ACU5110A fits standard 19-inch rack enclosures, making it ideal for data centers, server rooms, and network closets where space optimization is critical.
Deployment / Use Cases
This KVM extender is particularly valuable in environments where equipment must be managed from a distance or where physical access to servers is restricted. Its 984.20-foot operating distance makes it suitable for large data centers, industrial facilities, and educational institutions with distributed computing resources.
The combination of VGA, PS/2, and RS232 support allows the ACU5110A to interface with a wide range of equipment, from legacy servers and industrial PCs to modern rack-mounted systems. This versatility makes it a practical solution for mixed-technology environments where equipment refresh cycles vary.
Data Center Server Management
Enable remote console access to servers located in distant racks or separate rooms, reducing the need for technicians to physically approach equipment for routine management tasks.
Industrial Control Room Integration
Connect control room workstations to equipment in factory floors or hazardous areas, allowing operators to monitor and control machinery from safe, centralized locations.
What's in the Box
The package includes both local and remote units necessary for complete KVM extension functionality. This comprehensive package ensures you have all components required for immediate deployment without additional purchases.
Highlights
- Extends KVM signals up to 984.20 feet over CATx cabling
- Supports VGA video with 1600 x 1200 maximum resolution
- Includes PS/2 and RS232 interfaces for legacy peripheral support
- Accommodates 2 local and 2 remote users simultaneously
- Features skew compensation for signal integrity over distance
- Rack-mountable form factor for data center integration
- TAA compliant for government and institutional use
- Environmentally friendly construction
- Includes both local and remote units in package
- Manufactured in the United Kingdom
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ACU5110A |
| Brand Name | Black Box |
| Product Line | ServSwitch |
| Product Name | Wizard KVM Extender - VGA, PS/2, RS232, Single-Access, CATx, Skew Compensation |
| Product Type | KVM Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Local Users Supported | 2 |
| Number of Remote Users Supported | 2 |
| Maximum Operating Distance | 984.20 ft (299984.16 mm) |
| Video | |
| Maximum Video Resolution | 1600 x 1200 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| PS/2 Port | Yes |
| VGA | Yes |
| Number of VGA Ports | 3 |
| Number of Network (RJ-45) Ports | 2 |
| Number of PS/2 Ports | 2 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Miscellaneous | |
| Package Contents | Local Unit Remote Unit |
| Environmentally Friendly | Yes |
| Country of Origin | United Kingdom |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
FAQ
What is the maximum distance this KVM extender supports?
The Black Box ACU5110A Wizard KVM Extender supports a maximum operating distance of 984.20 feet (299984.16 mm) over standard CATx cabling. This extended range allows remote management of equipment located in distant racks, separate rooms, or across large facilities without signal degradation.
What video interfaces does this KVM extender support?
This extender supports VGA video connections with three available VGA ports. It delivers a maximum video resolution of 1600 x 1200, suitable for server management consoles and industrial control applications. The VGA interface ensures compatibility with a wide range of legacy and modern display equipment.
How many users can access the extended KVM signals simultaneously?
The ACU5110A supports two local users and two remote users simultaneously. This configuration allows multiple technicians or operators to access the same equipment from different locations, facilitating collaborative troubleshooting and management in data center and industrial environments.
What peripheral interfaces are included besides video?
In addition to VGA video, this KVM extender includes two PS/2 ports for keyboard and mouse connections, plus RS232 serial support. These interfaces ensure compatibility with legacy servers, industrial controllers, and specialized equipment that may not have USB or modern peripheral connections.
Is this KVM extender suitable for rack installation?
Yes, the ACU5110A features a rack-mountable form factor designed for installation in standard 19-inch rack enclosures. This design makes it ideal for data centers, server rooms, and network closets where space optimization and organized equipment mounting are priorities.
What is skew compensation and why is it important?
Skew compensation technology corrects timing differences between video and data signals that can occur when transmitting over extended cable distances. This ensures that keyboard, mouse, and display signals remain synchronized, providing responsive control and clear video without lag or distortion during remote equipment management.
