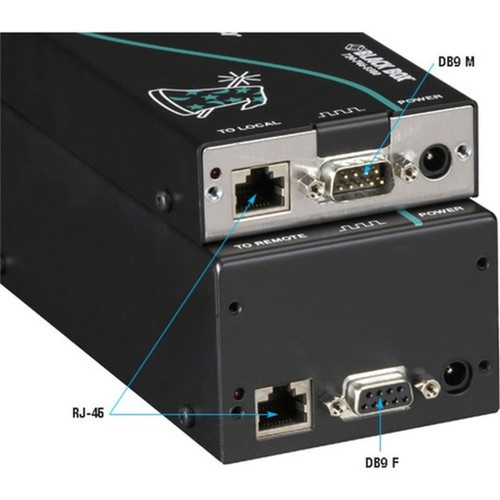

Black Box ACU5114A Wizard Dual VGA RS232 KVM Extender - CATx - 984.20 ft Range - Rack-Mountable - Dual Access
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVM extender utilizes wired connectivity over CAT5e, CAT6, or compatible cabling to transmit signals with minimal latency. It supports a maximum video resolution of 1280 x 1024 at 60Hz refresh rate, ensuring clear display output for server management and monitoring applications.
The extender handles multiple signal types simultaneously: VGA video for display output, PS/2 for keyboard and mouse control, RS232 for serial device management, and audio for basic sound transmission. This comprehensive signal support eliminates the need for separate extension solutions for different interface types.
Relevant factors for this section include Connectivity Technology, Number of Local Users Supported, Number of Remote Users Supported, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ACU5114A delivers reliable signal extension without compromising performance or requiring complex configuration. Its dual-access capability allows both local and remote users to interact with connected systems simultaneously, improving operational efficiency in multi-admin environments.
Legacy Interface Support
Maintains compatibility with PS/2 keyboards and mice alongside VGA displays, protecting investments in existing peripheral equipment while extending their usable range.
- 4 PS/2 ports total
- 2 VGA outputs
- RS232 serial support
Extended Reach
Transmits signals up to 984.20 feet over standard network cabling, enabling centralized management of distributed equipment without signal degradation.
- Uses CAT5e/CAT6 cable
- No external power required at remote unit
- Maintains signal integrity
Rack-Ready Design
The rack-mountable form factor integrates seamlessly into standard 19-inch server racks, conserving valuable data center space while providing organized cable management.
- Standard rack mounting
- Compact footprint
- Professional installation
Deployment / Use Cases
This KVM extender is ideal for data centers, server rooms, and industrial control environments where equipment must be managed from a secure, centralized location. The extended range allows administrators to position control stations in separate rooms or across large facilities while maintaining full access to connected systems.
Common applications include server farm management, industrial automation control rooms, security monitoring centers, and broadcast facility equipment control. The dual-access capability supports both on-site technicians and remote administrators working simultaneously on the same systems.
Data Center Management
Extend control from secure operations centers to server racks located in separate rooms or across large facilities, maintaining security protocols while improving accessibility.
Legacy System Integration
Connect older equipment with VGA and PS/2 interfaces to modern control stations, extending the useful life of existing hardware investments.
What's in the Box
The package includes both the local and remote units required for complete KVM extension functionality. No additional components are needed for basic operation.
Highlights
- Extends VGA, PS/2, RS232, and audio signals over CATx cable
- Maximum operating distance of 984.20 feet (299984.16 mm)
- Supports 2 local and 2 remote users simultaneously
- 1280 x 1024 maximum video resolution at 60Hz
- 4 PS/2 ports for keyboard and mouse connections
- 2 VGA ports for display output
- 2 RJ-45 network ports for CATx connectivity
- Rack-mountable form factor for data center integration
- TAA compliant for government and educational procurement
- 1-year limited warranty with manufacturer support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ACU5114A |
| Brand Name | Black Box |
| Product Line | ServSwitch |
| Product Name | Wizard KVM Extender - Dual VGA, PS/2, RS232, Dual-Access, CATx |
| Product Type | KVM Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Local Users Supported | 2 |
| Number of Remote Users Supported | 2 |
| Maximum Operating Distance | 984.20 ft (299984.16 mm) |
| Video | |
| Maximum Video Resolution | 1280 x 1024 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| PS/2 Port | Yes |
| VGA | Yes |
| Number of VGA Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Number of PS/2 Ports | 4 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Miscellaneous | |
| Package Contents | Local Unit Remote Unit |
| Environmentally Friendly | Yes |
| Country of Origin | United Kingdom |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What types of signals does this KVM extender support?
The ACU5114A extends VGA video signals, PS/2 keyboard and mouse signals, RS232 serial communication, and basic audio. This comprehensive support allows you to manage servers and equipment with legacy interfaces without requiring separate extension solutions for each signal type.
What is the maximum distance this extender can transmit signals?
This KVM extender transmits signals up to 984.20 feet (approximately 300 meters) over standard CAT5e, CAT6, or compatible network cabling. This extended range enables centralized management of equipment located in separate rooms or across large facilities while maintaining signal integrity.
How many users can access connected systems simultaneously?
The dual-access design supports 2 local users and 2 remote users simultaneously. This allows multiple administrators to work on the same systems from different locations, improving operational efficiency in environments with distributed teams or shift-based staffing.
What video resolution does this extender support?
The extender supports a maximum video resolution of 1280 x 1024 at 60Hz refresh rate. This resolution provides clear display output suitable for server management, industrial control interfaces, and monitoring applications where detailed screen information is required.
Is this KVM extender rack-mountable?
Yes, the ACU5114A features a rack-mountable form factor designed for standard 19-inch server racks. This allows for organized installation in data centers and equipment rooms, conserving valuable floor space while providing professional cable management and accessibility.
What compliance standards does this product meet?
This KVM extender is TAA (Trade Agreements Act) compliant, making it suitable for government, educational, and institutional procurement. It also carries a 1-year limited warranty from Black Box and is manufactured in the United Kingdom with environmentally friendly considerations.
