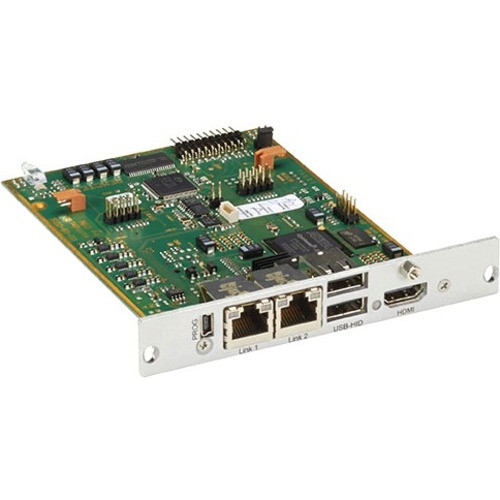

Black Box ACX1MR-HDMI-2C DKM FX Modular KVM Extender Receiver - HDMI - USB-HID - 2x CATx - 2560 x 1600 - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVM extender receiver employs wired connectivity technology to transmit HDMI video and USB-HID signals over CATx cabling, supporting distances typical for structured cabling installations. It features one HDMI port for video input, two network (RJ-45) ports for dual CATx connectivity offering redundancy, and three USB ports for keyboard, mouse, and additional HID devices, ensuring comprehensive peripheral management.
The device is compatible with a broad range of computing platforms, including PC, Mac, Sun, Unix, and Linux systems, providing versatile integration into heterogeneous IT environments. Its technical design focuses on reliable signal extension without compromising on video quality or peripheral responsiveness, making it a robust solution for remote access scenarios.
Key Product Advantages
The ACX1MR-HDMI-2C receiver delivers distinct advantages for KVM extension deployments by combining high-resolution video support with redundant connectivity and compact form factors.
High-Resolution Video Extension
Supports HDMI video at resolutions up to 2560x1600, enabling detailed remote monitoring and control for graphics-intensive applications or multi-tasking environments.
- Crisp visual clarity
- Ideal for design or surveillance tasks
Redundant CATx Connectivity
Features two CATx connectors, providing redundancy to maintain KVM access in case of cable failure or network issues, enhancing system reliability.
- Minimizes downtime
- Supports failover scenarios
Compact Rack Integration
With dimensions of 5" width, 5.75" depth, and 0.70" height, this receiver fits seamlessly into standard rack enclosures, optimizing space in data centers or control rooms.
- Space-efficient design
- Easy installation in racks
Deployment / Use Cases
This KVM extender receiver is ideal for scenarios requiring remote access to a single computer with high-quality video and peripheral control. Common deployments include data center server management, where administrators need to monitor and operate systems from a centralized console without being physically present at the rack.
It also suits broadcast or production environments, where extending HDMI signals from editing workstations to control rooms is necessary, or in security operations centers for surveillance system oversight. The TAA compliance makes it a fit for government installations, while its platform versatility supports mixed-OS labs or educational facilities.
Data Center Server Management
Enables IT staff to control servers remotely from a KVM console, reducing physical access needs and improving operational efficiency in crowded rack environments.
Broadcast and Control Rooms
Extends HDMI video from production computers to monitoring stations, allowing for real-time visual checks and adjustments in media or security settings.
Highlights
- HDMI video support up to 2560x1600 resolution for sharp remote displays
- USB-HID compatibility for keyboards and mice, ensuring responsive peripheral control
- Dual CATx connectors provide redundancy to maintain KVM access during cable issues
- Rack-mountable form factor for neat integration into server racks or enclosures
- Supports multiple platforms including PC, Mac, Sun, Unix, and Linux systems
- TAA compliant, meeting requirements for government and regulated procurement
- Environmentally friendly design aligned with sustainability initiatives
- Compact dimensions (5" W x 5.75" D x 0.70" H) optimize space in tight installations
- Wired connectivity ensures stable, low-latency signal transmission over CATx cabling
- Three USB ports allow connection of multiple HID devices for expanded control
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ACX1MR-HDMI-2C |
| Brand Name | Black Box |
| Product Model | ACX1MR-HDMI-2C |
| Product Name | DKM FX Modular KVM Extender Receiver Interface Card - HDMI, USB-HID, 2X CATx |
| Product Type | KVM Extender Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Device Type | KVM Extender |
| Video | |
| Maximum Video Resolution | 2560 x 1600 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| HDMI | Yes |
| Number of HDMI Ports | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 3 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Receiver Height | 0.70" (17.78 mm) |
| Receiver Width | 5" (127 mm) |
| Receiver Depth | 5.75" (146.05 mm) |
| Receiver Weight (Approximate) | 300 g |
| Miscellaneous | |
| Platform Supported | PC,Mac,Sun,Unix,Linux |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
User Manual
FAQ
What video resolution does this KVM extender receiver support?
The Black Box ACX1MR-HDMI-2C supports HDMI video at a maximum resolution of 2560 x 1600. This high-definition capability ensures detailed visual output for remote monitoring, making it suitable for tasks requiring fine graphics or multiple windows, such as server management, design work, or surveillance monitoring.
How many computers can this KVM extender receiver control?
This receiver is designed to control a single computer. It extends the keyboard, video, and mouse signals from one computer to a remote console, providing centralized access for administration or operation without direct physical interaction with the machine.
What types of connectors and ports are available on this device?
The receiver includes one HDMI port for video input, two network (RJ-45) ports for dual CATx connectivity, and three USB ports for HID devices like keyboards and mice. This configuration supports comprehensive peripheral management and redundant signal transmission over standard CATx cabling.
Is this KVM extender receiver rack-mountable?
Yes, it features a rack-mountable form factor. With dimensions of 5" width, 5.75" depth, and 0.70" height, it can be easily installed in standard 19-inch server racks, making it ideal for data centers, control rooms, or any environment where space optimization and organized deployment are priorities.
Does this product meet TAA compliance requirements?
Yes, the ACX1MR-HDMI-2C is TAA compliant. This certification ensures it adheres to the Trade Agreements Act, making it suitable for procurement in government and regulated sectors where compliance with specific sourcing and manufacturing standards is mandatory for contracts and deployments.
