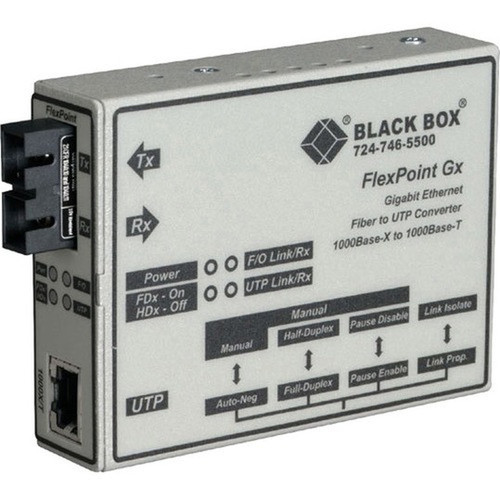

Black Box LMC1003A-R3 FlexPoint Gigabit UTP to Fiber Media Converter - 1x RJ-45 & 1x Duplex SC Ports - Multi-mode 850 nm - Rack/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates on Gigabit Ethernet standards, specifically 1000Base-T for copper and 1000Base-SX/LX for fiber, ensuring seamless integration into existing network infrastructures. It supports multimode fiber optic cabling with a maximum distance of 0.22 km (0.14 miles), making it suitable for medium-range extensions where copper limitations arise.
The converter's dual-port design includes one RJ-45 port for UTP connections and one duplex SC port for fiber, with a total of two ports to handle bidirectional data conversion. Power is supplied via an external power adapter, and the device is built with a compact footprint for efficient use in constrained environments.
Relevant factors for this section include Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The FlexPoint converter excels in environments requiring robust signal conversion with minimal latency and high reliability. Its ability to extend network distances beyond copper limitations while maintaining Gigabit speeds makes it a cost-effective solution for upgrading or expanding network infrastructure without replacing entire cabling systems.
Signal Integrity
Converts electrical signals to optical signals, reducing electromagnetic interference and signal loss over longer distances compared to pure copper runs.
- Minimizes crosstalk
- Enhances data security in sensitive areas
Deployment Flexibility
Supports both rack and wall mounting, allowing installation in server racks, network closets, or on walls near endpoints for optimized cable management.
- Compact design saves space
- Easy integration into existing setups
Deployment / Use Cases
This media converter is ideal for scenarios where network segments need to transition from copper to fiber optic cabling, such as connecting buildings within a campus, extending networks in industrial plants, or integrating fiber backbones into office environments. It supports up to 0.22 km distances, making it suitable for medium-range applications where direct copper runs are impractical.
Common use cases include linking switches or routers across different floors, integrating fiber optic segments into existing UTP networks for improved performance, and deploying in environments with high electromagnetic interference where fiber's immunity provides an advantage. The converter's TAA compliance and U.S. origin also make it suitable for government or regulated industry deployments.
Campus Networking
Connect buildings or remote offices using fiber optic cabling for longer distances and better signal quality, with the converter handling the interface between copper and fiber segments.
Industrial Automation
Deploy in manufacturing or utility settings where electromagnetic noise is high, leveraging fiber optic connections to ensure reliable data transmission for control systems or monitoring equipment.
Physical Profile
The converter measures 1" (25.40 mm) in height, 3" (76.20 mm) in width, and 4" (101.60 mm) in depth, with an approximate weight of 6.40 oz (181.44 g). Its compact and lightweight design facilitates easy mounting in standard 19-inch racks or on walls using included or optional brackets, optimizing space in network cabinets or tight installations.
- Width
- 3" (76.20 mm)
- Depth
- 4" (101.60 mm)
- Height
- 1" (25.40 mm)
- Weight
- 6.40 oz (181.44 g)
- Length
- 850 nm
Highlights
- Converts Gigabit Ethernet UTP to multimode fiber optic with 850 nm wavelength
- Supports distances up to 0.22 km (0.14 miles) for medium-range network extensions
- Features one RJ-45 port and one duplex SC port for flexible connectivity
- Rack-mountable and wall-mountable form factor for versatile installation
- 1000Base-T and 1000Base-SX/LX network technology compatibility
- TAA compliant and manufactured in the United States
- Compact dimensions (1" H x 3" W x 4" D) for space-efficient deployment
- Includes a 1-year limited warranty for reliable performance assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LMC1003A-R3 |
| Brand Name | Black Box |
| Product Line | FlexPoint |
| Product Name | FlexPoint Gigabit UTP to Fiber Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Maximum Distance Supported | 0.22 km (0.14 Mile) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T,1000Base-SX/LX |
| Power Description | |
| Power Source | Power Supply |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 3" (76.20 mm) |
| Depth | 4" (101.60 mm) |
| Weight (Approximate) | 6.40 oz (181.44 g) |
| Miscellaneous | |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What does this media converter do?
This converter bridges copper Ethernet (UTP) and fiber optic networks, converting electrical signals from an RJ-45 port to optical signals for a duplex SC port. It enables Gigabit Ethernet transmission over multimode fiber up to 0.22 km, extending network reach and reducing interference in mixed-media environments.
What types of fiber optic cable does it support?
It supports multimode fiber optic cabling with an 850 nm wavelength. The converter is compatible with standard multimode fiber cables terminated with duplex SC connectors, making it suitable for common fiber optic installations in data centers or office networks.
How far can this converter extend a network?
The maximum supported distance is 0.22 km (approximately 0.14 miles) over multimode fiber. This range allows for medium-distance extensions beyond typical copper limitations, ideal for connecting buildings or network segments within a campus or industrial site.
Can this converter be mounted in a rack?
Yes, it is designed for both rack-mountable and wall-mountable installation. The compact form factor fits standard 19-inch racks, and its lightweight build facilitates easy mounting in server cabinets or on walls for flexible deployment in various network environments.
What power source does it require?
It uses an external power supply for operation. The converter does not include PoE (Power over Ethernet) and relies on a dedicated power adapter, ensuring stable performance without drawing power from the network connection.
Is this product TAA compliant?
Yes, the converter is TAA compliant and manufactured in the United States. This compliance makes it suitable for government contracts and regulated industries that require adherence to Trade Agreements Act standards for procurement.
