Black Box KVXLCDP-100 KVM Extender - 4K 3840 x 2160 Video - 328 ft Range - 1 Computer - 1 Local User - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

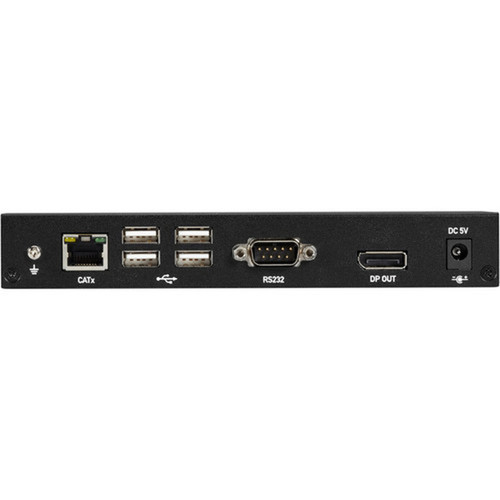

This KVM extender operates over Cat5e/6/6a/7 network cables using two RJ-45 ports, supporting the full 328-foot distance without signal degradation. The 4K video extension maintains 3840x2160 resolution at 30Hz refresh rate, with DisplayPort connectivity for modern monitors and professional displays.
USB 2.0 extension is transparent to device types, supporting human interface devices like keyboards and mice alongside mass storage devices. The system includes dedicated support for RS-232 serial peripherals and provides bidirectional audio through a 3.5mm speaker/microphone connection. Power requirements are minimal at 5V DC input for both transmitter and receiver units.
Relevant factors for this section include Connectivity Technology, Number of Computers Supported, Number of Local Users Supported, Graphic Mode. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The KVXLCDP-100 combines extended distance capability with high-resolution video support in a rack-optimized package. Unlike basic extenders, this system maintains full 4K quality while extending multiple interface types simultaneously.
Professional Video Quality
Delivers 4K UHD resolution at 3840x2160 with 30Hz refresh rate over extended distances, ensuring sharp image quality for design work, monitoring, and presentation displays.
- True 4K resolution
- DisplayPort connectivity
- EDID management
Comprehensive Interface Extension
Extends beyond basic KVM to include USB 2.0 for peripherals and storage, RS-232 for serial devices, and bidirectional audio for complete workstation functionality.
- USB device transparency
- Serial port support
- Audio in/out capability
Rack Deployment Ready

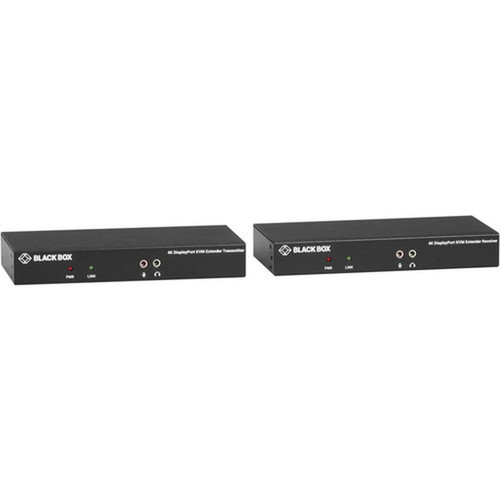

1U rack-mountable design with identical transmitter and receiver units simplifies installation in server rooms, control centers, and AV racks while conserving space.
- Standard 1U height
- Compact footprint
- Included mounting hardware
Deployment / Use Cases
This KVM extender is designed for environments where computer equipment must be located at a distance from user workstations while maintaining full control and high-quality video. The 328-foot range accommodates typical office, industrial, and educational facility layouts.
Common deployment scenarios include server room access from administrative areas, control room workstations distant from equipment racks, digital signage systems with remote computers, and training facilities where instructor stations control distant demonstration systems. The rack-mountable design integrates seamlessly into existing infrastructure, while the included desk-mounting brackets offer flexibility for non-rack installations.
Relevant factors for this section include Connectivity Technology, Number of Computers Supported, Number of Local Users Supported, Graphic Mode. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
What's in the Box
The complete package includes all components needed for immediate deployment of the KVM extension system.
Highlights
- Extends 4K UHD video up to 3840x2160 resolution at 30Hz
- 328-foot (100-meter) operating distance over network cable
- Supports single computer with one local user station
- Transparent USB 2.0 extension for HID and storage devices
- Includes RS-232 serial port extension capability
- Bidirectional audio via speaker/microphone connection
- Local video loopback for transmitter-side monitoring
- EDID pass-through ensures proper display recognition
- 1U rack-mountable form factor for professional installations
- Includes international power supplies and mounting hardware
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KVXLCDP-100 |
| Brand Name | Black Box |
| Product Series | KVX |
| Product Model | KVXLCDP-100 |
| Product Name | KVXLCDP-100 KVM Extender |
| Product Type | KVM Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Maximum Operating Distance | 328.08 ft (100000 mm) |
| Device Type | KVM Extender |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 5 |
| Power Description | |
| Input Voltage | 5 V DC |
| Physical Characteristics | |
| Rack Height | 1U |
| Form Factor | Rack-mountable |
| Transmitter Height | 0.83" (21.08 mm) |
| Transmitter Width | 3.27" (83.06 mm) |
| Transmitter Depth | 7.09" (180.09 mm) |
| Receiver Height | 0.83" (21.08 mm) |
| Receiver Width | 3.27" (83.06 mm) |
| Receiver Depth | 7.09" (180.09 mm) |
| Transmitter Weight (Approximate) | 1.81 lb (820 g) |
| Miscellaneous | |

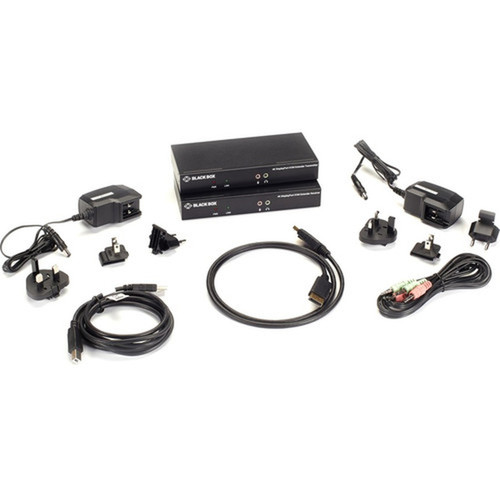

| Package Contents | 1 x Transmitter 1 x Receiver 2 x 5V, 2A Power Supplies (includes US, EU, UK plug types) 1 x DisplayPort Cable, M/M 1.2m (4 ft.) 1 x USB Type A to B Cable, M/M 1.8m (6 ft.) 1 x 3.5mm Dual Audio / Mic Cable, M/M 1.8m (6 ft.) 2 x Deskmounting brackets (with screws) |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What maximum video resolution does this KVM extender support?
The Black Box KVXLCDP-100 supports 4K UHD video at 3840x2160 resolution with a 30Hz refresh rate. This maintains high-quality display output for professional applications, design work, and detailed monitoring over the extended distance.
How far can this system extend the computer connections?
This KVM extender operates at distances up to 328.08 feet (100 meters) using standard Cat5e/6/6a/7 network cabling. The system maintains full signal integrity for video, USB, audio, and serial communications across this entire range.
What types of USB devices can be extended with this system?
The transparent USB 2.0 extension supports both human interface devices (keyboards, mice, touchpads) and mass storage devices (flash drives, external hard drives). The system maintains proper device recognition and functionality across the extended distance.
Does this KVM extender support audio connections?
Yes, the system includes bidirectional audio extension through a 3.5mm speaker/microphone connection. This allows both audio output to speakers or headphones and audio input from microphones, supporting complete workstation functionality at the remote location.
What mounting options are available for installation?
The KVXLCDP-100 is designed for 1U rack mounting in standard server racks, with both transmitter and receiver units sharing identical compact dimensions. The package also includes two desk-mounting brackets with screws for non-rack installations on work surfaces or under desks.
What power requirements does this system have?
Both the transmitter and receiver units operate on 5V DC power. The package includes two 5V, 2A power supplies with interchangeable US, EU, and UK plug types for international deployment flexibility in different electrical environments.
