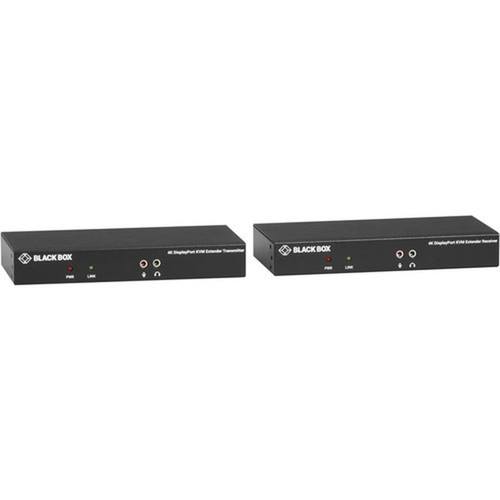

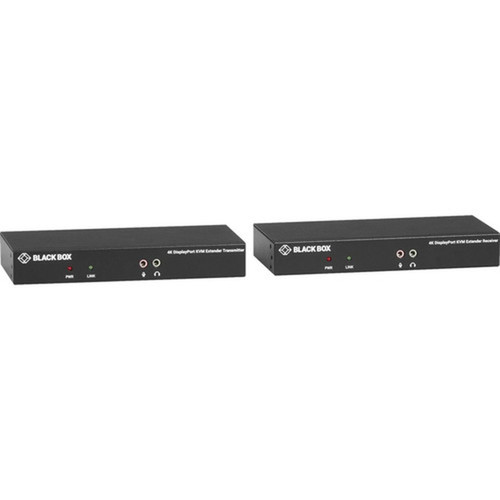

Black Box KVXLCDPF-100 KVM Extender - 1 Computer - 1 Local User - 32808.40 ft Range - 4K 3840 x 2160 - 5 USB Ports - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVM extender utilizes DisplayPort for video transmission, supporting EDID pass-through to maintain consistent display communication between the computer and monitor. The transparent USB 2.0 extension handles HID devices, mass storage, and RS-232 serial peripherals without requiring additional drivers, ensuring broad compatibility with existing equipment.
Bi-directional audio capabilities via the integrated 3.5mm speaker/mic connection allow for full multimedia extension. The local video port loopback feature on the transmitter unit enables convenient monitoring without disrupting the primary signal path to the receiver.
Relevant factors for this section include Connectivity Technology, Number of Computers Supported, Number of Local Users Supported, Graphic Mode. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The KVXLCDPF-100 combines extended reach with uncompromised video fidelity, addressing the core challenge of remote equipment management in professional installations. Its comprehensive peripheral support extends beyond basic KVM functionality to include audio and serial devices.
Long-Distance 4K Video
Maintains 4K UHD resolution across distances up to 32808.40 feet without signal degradation, ensuring detailed visual monitoring of remote systems.
- 3840 x 2160 maximum resolution
- DisplayPort interface
- EDID pass-through support
Comprehensive Peripheral Extension
Extends USB 2.0 for keyboards, mice, storage devices, and RS-232 serial equipment alongside bi-directional audio, creating a complete remote workstation.
- 5 USB ports
- HID and mass storage support
- Speaker/mic audio connection
Professional Installation Design
Rack-mountable 1U form factor with included desk-mounting brackets provides flexible deployment options for both rack and desktop environments.
- 1U rack height
- Dual mounting options
- Compact transmitter/receiver units
Deployment / Use Cases
This KVM extender serves critical roles in environments where computer equipment must be physically separated from operator workstations. The extended distance capability makes it particularly valuable for large facilities where centralized equipment management improves security and operational efficiency.
In data center applications, the extender allows technicians to monitor and control servers from a dedicated console room while keeping noise and heat away from the workspace. Broadcast and production facilities benefit from the 4K video extension for monitoring remote editing stations or equipment racks. Industrial control rooms utilize the RS-232 support to extend legacy serial devices alongside modern USB peripherals.
Data Center Remote Management
Enables centralized control of server racks from a separate console room, improving technician comfort and equipment security.
Broadcast and AV Integration
Extends high-resolution video signals for monitoring remote editing workstations or equipment in production environments.

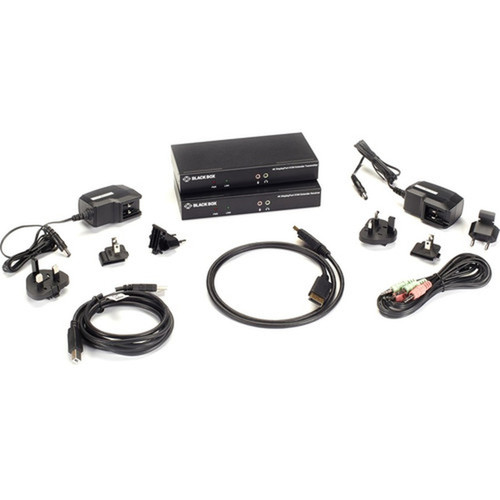

What's in the Box
The package includes all necessary components for immediate deployment of the KVM extension system.
Highlights
- Extends KVM signals up to 32808.40 feet (approximately 10 km)
- Supports 4K UHD video at 3840 × 2160 resolution via DisplayPort
- Transparent USB 2.0 extension for HID devices and mass storage
- Bi-directional audio support via speaker/mic connection
- RS-232 serial device compatibility
- Local video port loopback on transmitter for monitoring
- EDID pass-through maintains consistent display communication
- Rack-mountable 1U form factor with desk-mounting options
- Includes international power supplies (US, EU, UK plugs)
- 2-year limited warranty with TAA compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KVXLCDPF-100 |
| Brand Name | Black Box |
| Product Series | KVX |
| Product Model | KVXLCDPF-100 |
| Product Name | KVXLCDPF-100 KVM Extender |
| Product Type | KVM Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Maximum Operating Distance | 32808.40 ft (10000000 mm) |
| Device Type | KVM Extender |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| USB | Yes |
| Headphone | Yes |
| Microphone | Yes |
| DisplayPort | Yes |
| Number of USB Ports | 5 |
| Power Description | |
| Input Voltage | 5 V DC |
| Physical Characteristics | |
| Rack Height | 1U |
| Form Factor | Rack-mountable |
| Transmitter Height | 0.83" (21.08 mm) |
| Transmitter Width | 3.27" (83.06 mm) |
| Transmitter Depth | 7.09" (180.09 mm) |
| Receiver Height | 0.83" (21.08 mm) |
| Receiver Width | 3.27" (83.06 mm) |
| Receiver Depth | 7.09" (180.09 mm) |
| Transmitter Weight (Approximate) | 376.5 g |
| Miscellaneous | |
| Package Contents | 1 x Transmitter 1 x Receiver 2 x 5V, 2A Power Supplies (includes US, EU, UK plug types) 1 x DisplayPort Cable, M/M 1.2m (4 ft.) 1 x USB Type A to B Cable, M/M 1.8m (6 ft.) 1 x 3.5mm Dual Audio / Mic Cable, M/M 1.8m (6 ft.) 2 x Deskmounting brackets (with screws) |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the maximum distance this KVM extender supports?
The Black Box KVXLCDPF-100 supports a maximum operating distance of 32808.40 feet, which is approximately 10 kilometers. This extended range makes it suitable for large facilities where computer equipment needs to be located far from operator workstations while maintaining full control and high-resolution video monitoring.
What video resolution and interface does this extender support?
This extender supports 4K UHD video at a maximum resolution of 3840 × 2160 through its DisplayPort interface. It maintains this high resolution across the entire operating distance while supporting EDID pass-through to ensure proper communication between the computer and display for consistent video performance.
How many USB ports are available and what devices can connect to them?
The extender provides 5 USB ports that support transparent USB 2.0 extension. These ports are compatible with HID devices like keyboards and mice, mass storage devices such as flash drives and external hard drives, and other USB peripherals. The extension occurs without requiring additional drivers on the connected computer.
Does this KVM extender support audio and serial devices?
Yes, the KVXLCDPF-100 includes bi-directional audio support through a 3.5mm speaker/mic connection, allowing both audio output and microphone input to be extended alongside the KVM signals. It also supports RS-232 serial peripheral devices, making it compatible with legacy equipment that uses serial communication protocols.
What mounting options are available for installation?
This extender features a rack-mountable 1U form factor that fits standard server racks, and it includes desk-mounting brackets with screws for workstation installations. The compact transmitter and receiver units have identical dimensions of 0.83" × 3.27" × 7.09", providing flexible deployment in both rack and desktop environments.
What is included in the package with this KVM extender?
The package contains a complete extension system: one transmitter unit, one receiver unit, two 5V/2A power supplies with US, EU, and UK plug types, a 1.2-meter DisplayPort cable, a 1.8-meter USB Type A to B cable, a 1.8-meter 3.5mm dual audio/mic cable, and two desk-mounting brackets with screws for immediate deployment.
