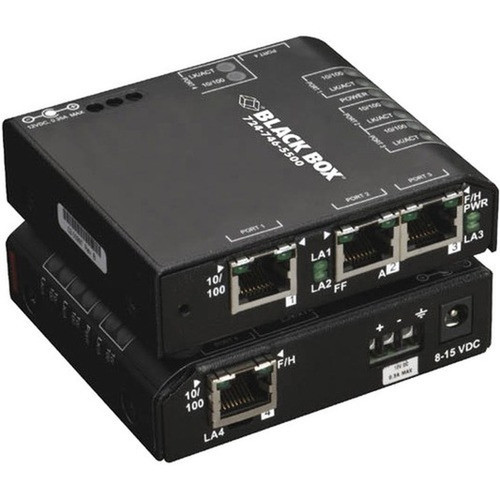

Black Box LBH101A-H-12 Hardened Compact Managed 4-Port Fast Ethernet Switch - 12 VDC - Layer 2 - Desktop/Rack/Panel Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates as a Layer 2 managed device, supporting a complete feature set that includes IGMP snooping for efficient multicast traffic handling, port mirroring for network monitoring and troubleshooting, and spanning tree protocol for loop prevention and network redundancy. The four Fast Ethernet ports deliver 10/100 Mbps connectivity, compatible with standard twisted pair cabling for easy integration into existing network infrastructures.
The hardened design incorporates environmental resilience, with an environmentally friendly construction that meets TAA compliance requirements. The switch's small physical profile and low power draw make it ideal for space-constrained or power-sensitive deployments, while its managed capabilities provide greater control over network traffic compared to unmanaged alternatives.
Relevant factors for this section include Total Number of Network Ports, Port/Expansion Slot Details, Media Type Supported, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Black Box LBH101A-H-12 combines compact size with robust networking features, offering a hardened solution for demanding environments. Its versatile mounting capabilities allow deployment in diverse scenarios, from desktop setups in offices to rack installations in server rooms or panel mounts in industrial control panels.
Rugged and Versatile Mounting
Supports desktop, rack, rail, and panel mounting options, providing installation flexibility for various environments without requiring additional adapters or kits.
- Desktop for quick setup
- Rack for organized deployments
- Rail for secure mounting
- Panel for integrated installations
Managed Layer 2 Features
Includes IGMP snooping, port mirroring, and spanning tree protocol, enabling better network management, monitoring, and stability compared to basic unmanaged switches.
- IGMP snooping optimizes multicast
- Port mirroring aids troubleshooting
- Spanning tree prevents loops
Compact and Lightweight Design
With dimensions of 3.50" x 3" x 1" and a weight under 5 ounces, this switch minimizes space and weight requirements, ideal for mobile or constrained deployments.
- Small footprint saves space
- Lightweight for easy handling
- Low profile for discreet installation
Deployment / Use Cases
This switch is engineered for extending network connections to locations where traditional switches may be impractical. Its hardened construction and flexible mounting make it suitable for environments that require durability and adaptability, such as industrial settings, remote offices, or temporary network expansions.
Common applications include conference rooms, laboratories, lobbies, and department workgroups where additional wired ports are needed quickly and reliably. The 12 VDC power option allows deployment in vehicles, outdoor enclosures, or other DC-powered systems, while the managed features support more controlled network segments in small business or branch office scenarios.
Edge and Industrial Networking
Deploy in manufacturing floors, warehouses, or outdoor kiosks where environmental factors demand a rugged switch with reliable Fast Ethernet connectivity.
- Withstands harsh conditions
- DC power for vehicle/outdoor use
- Compact for tight spaces
Small Office and Remote Extensions
Ideal for adding ports in satellite offices, home offices, or temporary workspaces where a full rack setup is unnecessary but managed features are beneficial.
- Easy desktop installation
- Managed for network control
- Cost-effective for small scales
Physical Profile
The switch features a compact design with dimensions of 3.50" (88.90 mm) in height, 3" (76.20 mm) in width, and 1" (25.40 mm) in depth, allowing it to fit in confined spaces or alongside other equipment. Its lightweight construction at 4.80 ounces (136.08 grams) facilitates easy handling and installation, whether mounted on a desk, in a rack, or on a panel. The hardened exterior provides protection against physical stresses, ensuring longevity in active environments.
- Width
- 3" (76.20 mm)
- Depth
- 1" (25.40 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 4.80 oz (136.08 g)
What's in the Box
The package includes the Hardened Convenient Switch and a 12 VDC Panel Mount Kit, providing all necessary components for immediate deployment in panel-mounted configurations. This ensures a complete out-of-the-box solution for installations requiring secure panel attachment.
Highlights
- 4 Fast Ethernet ports for reliable wired network connections
- Layer 2 managed switch with IGMP snooping, port mirroring, and spanning tree
- Hardened construction for durability in rugged environments
- Versatile mounting: desktop, rack, rail, or panel options
- 12 VDC power source for flexible deployment locations
- Compact size: 3.50" x 3" x 1" and lightweight at 4.80 oz
- Supports twisted pair cabling for cost-effective up to 100-meter runs
- TAA compliant and made in the United States
- 3-year limited warranty for long-term reliability
- Environmentally friendly design
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LBH101A-H-12 |
| Brand Name | Black Box |
| Product Series | LBH100 |
| Product Name | Hardened Convenient Switch, 12 VDC |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 4 |
| Port/Expansion Slot Details | 4 x Fast Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX |
| Network & Communication | |
| Layer Supported | 2 |
| Power Description | |
| Power Source | DC |
| Physical Characteristics | |
| Form Factor | Desktop,Rack-mountable,Rail-mountable,Panel-mountable |
| Height | 3.50" (88.90 mm) |
| Width | 3" (76.20 mm) |
| Depth | 1" (25.40 mm) |
| Weight (Approximate) | 4.80 oz (136.08 g) |
| Miscellaneous | |
| Package Contents | Hardened Convenient Switch, 12 VDC Panel Mount Kit |
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many network ports does this switch have?
This switch has four Fast Ethernet ports, providing connectivity for up to four devices via twisted pair cabling. Each port supports 10/100 Mbps speeds, making it suitable for small network extensions or adding ports in environments like conference rooms, labs, or offices.
What Layer does this managed switch support?
The Black Box LBH101A-H-12 is a Layer 2 managed switch. It includes features such as IGMP snooping for efficient multicast traffic management, port mirroring for network monitoring and diagnostics, and spanning tree protocol to prevent network loops and ensure redundancy.
Can this switch be mounted in a rack?
Yes, this switch supports multiple mounting options, including rack-mountable, desktop, rail-mountable, and panel-mountable configurations. This flexibility allows it to be installed in various environments, from server racks to industrial panels, without requiring additional mounting hardware beyond what's included.
What type of power source does this switch use?
This switch uses a 12 VDC power source, which enables deployment in locations where AC power is not available or practical. The DC power option makes it suitable for use in vehicles, outdoor enclosures, or other DC-powered systems, enhancing its versatility for rugged or remote applications.
Is this switch TAA compliant?
Yes, the Black Box LBH101A-H-12 is TAA compliant, meaning it meets the Trade Agreements Act requirements for procurement in government and related sectors. It is also manufactured in the United States, supporting compliance with sourcing regulations for certain contracts and deployments.
What is included in the package with this switch?
The package includes the Hardened Convenient Switch and a 12 VDC Panel Mount Kit. This provides all necessary components for panel-mounted installations, ensuring a complete setup for secure attachment in panel-based environments, along with the switch itself for immediate network deployment.
