Black Box LES1816A LES1800 Smart Console Server - 16 Serial Ports - 2 GB DDR4 SDRAM - 1. 60 GHz ARM - Gigabit Ethernet - 2 SFP Slots - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The LES1800 Smart Console Server is built on an ARM processor architecture clocked at 1.60 GHz, paired with 2 GB of DDR4 SDRAM. This combination provides sufficient processing power and memory to handle multiple simultaneous serial sessions and management tasks without latency.
Networking is handled by two Gigabit Ethernet RJ-45 ports, while two SFP expansion slots allow for fiber uplinks or additional connectivity options. The server supports both twisted-pair and optical fiber media, making it adaptable to various network topologies. The 16 RS-232 serial ports (RJ-45) enable direct console access to managed devices, and dual USB ports provide additional peripheral connectivity.
Key Product Advantages
The Black Box LES1800 simplifies remote infrastructure management by providing out-of-band access to serial console ports on network equipment. Its 16-port density in a 1U footprint maximizes rack space efficiency, while the dual power inputs ensure high availability.
Key advantages include:
16 Serial Ports
Manage up to 16 devices simultaneously via RS-232 console connections, reducing the need for multiple terminal servers.
SFP Expansion
Two SFP slots allow for fiber or copper uplinks, enabling long-distance connectivity and integration with existing fiber infrastructure.
Compact 1U Design
Rack-mountable 1U chassis with included mounting kit saves valuable rack space while providing enterprise-grade functionality.
TAA Compliant
Manufactured in the United States and TAA compliant, making it suitable for U.S. government and defense contracts.
Deployment / Use Cases
The LES1800 Smart Console Server is ideal for data centers, server rooms, and remote sites where secure, centralized console access is required. It enables IT administrators to perform out-of-band management of network devices even when the primary network is unavailable.
Typical deployment scenarios include:
This section brings together practical product details such as Device Type, Processor Manufacturer, Processor Speed, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Data Center Management
Connect to switches, routers, firewalls, and PDUs via serial console ports for BIOS-level access, configuration, and troubleshooting without requiring network connectivity.
Remote Site Monitoring
Deploy at branch offices or remote facilities to provide secure out-of-band access, reducing truck rolls and enabling rapid issue resolution.
Physical Profile

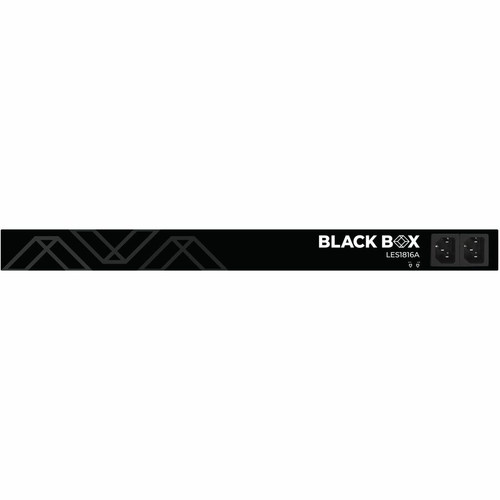

Housed in a rugged 1U metal chassis, the LES1800 measures 1.75 x 17 x 10 inches (44.45 x 431.80 x 254 mm) and weighs approximately 10 lb (4.54 kg). The rackmount kit is included for tool-less installation in standard 19-inch racks. Front-panel LEDs provide at-a-glance status for power, network activity, and serial port activity.
- Width
- 17" (431.80 mm)
- Depth
- 10" (254 mm)
- Height
- 1.75" (44.45 mm)
- Weight
- 10 lb (4535.92 g)
What's in the Box
The Black Box LES1800 Smart Console Server ships with all necessary accessories for immediate rack installation and connectivity.
Highlights
- 16 RS-232 serial ports for console management of switches, routers, firewalls, and PDUs
- 2 Gigabit Ethernet RJ-45 ports plus 2 SFP expansion slots for copper or fiber uplinks
- ARM 1.60 GHz processor with 2 GB DDR4 SDRAM for reliable performance
- 1U rack-mountable form factor with included mounting hardware
- Dual AC power inputs (100-240 V AC) for redundancy
- TAA compliant and RoHS certified
- Out-of-band management capability for remote troubleshooting
- 1 Year Double Diamond™ Warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LES1816A |
| Brand Name | Black Box |
| Product Series | LES1800 |
| Product Name | LES1800 Smart Console Server |
| Product Type | Device Server |
| Technical Information | |
| Device Type | Console Server |
| Processor & Chipset | |
| Processor Manufacturer | ARM |
| Processor Speed | 1.60 GHz |
| Memory | |
| Standard Memory | 2 GB |
| Memory Technology | DDR4 SDRAM |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| Serial Port | Yes |
| Management Port | Yes |
| Total Number of Network Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 2 |
| Number of Serial Ports | 16 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Input Voltage Range | 100 V AC - 240 V AC |
| Power Consumption | 15 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.75" (44.45 mm) |
| Width | 17" (431.80 mm) |
| Depth | 10" (254 mm) |
| Weight (Approximate) | 10 lb (4535.92 g) |
| Miscellaneous | |
| Package Contents | LES1800 Smart Console Server 1 x Rackmount Kit: 2 x Brackets, 4 x 10/32 Screws 6 x 6/32 Screws, 4 x Cage Nuts 2 x Power Cords 1 x Patch Cable RJ-45 1 x DB9F to RJ-45 Adapter Information Download Card |
| Compatibility | Compatible Devices: Switches Routers Firewalls PDUs |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | 1 Year Double Diamond™ Warranty (Standard) |
User Manual
FAQ
What devices are compatible with the Black Box LES1800 Smart Console Server?
The LES1800 is compatible with a wide range of network equipment including switches, routers, firewalls, and PDUs that have RS-232 console ports. It provides out-of-band management access to these devices via its 16 serial ports.
Does the LES1800 support fiber optic connections?
Yes, the LES1800 features two SFP expansion slots that accept SFP transceivers for fiber optic connections. Combined with the two Gigabit Ethernet RJ-45 ports, it supports both twisted-pair and optical fiber media.
What is the power input range and consumption?
The LES1800 accepts AC input voltage from 100 V AC to 240 V AC, allowing deployment worldwide. Its typical power consumption is only 15 W, making it energy efficient for continuous operation.
Can the LES1800 be mounted in a standard server rack?
Yes, the LES1800 is designed for 1U rack-mount installation in standard 19-inch racks. It includes a rackmount kit with brackets, screws, and cage nuts for secure mounting.
Is the Black Box LES1800 TAA compliant?
Yes, the LES1800 Smart Console Server is TAA compliant and manufactured in the United States, meeting the requirements for U.S. government and defense procurement.
What warranty is provided with the LES1800?
The LES1800 comes with a 1 Year Limited Warranty, specifically Black Box's 1 Year Double Diamond™ Warranty, which covers defects in materials and workmanship.
