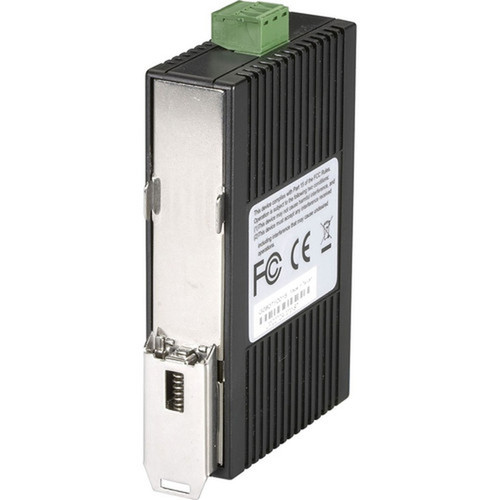

Black Box LMC270A-MM-ST Transceiver/Media Converter - 1 x RJ-45 & 1 x ST Port - 10/100/1000Base-TX to 1000Base-FX Multi-mode - 20 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The LMC270A-MM-ST operates as a transparent media converter, handling Ethernet, Fast Ethernet, and Gigabit Ethernet protocols without configuration. It supports 10/100Base-TX on the copper side and 1000Base-FX on the fiber side, ensuring seamless conversion between these standards. The multi-mode fiber compatibility with ST connectors provides a reliable optical interface for short to medium-distance runs.
With a maximum distance of 20 kilometers over fiber, this converter effectively extends network segments beyond the 100-meter limit of copper cabling. The compact dimensions of 4.30" x 1" x 2.80" (109.22 mm x 25.40 mm x 71.12 mm) and lightweight design at 226.8 grams allow for dense installations without excessive space consumption.
Key Product Advantages
This media converter delivers practical benefits for network expansion and fiber integration, combining performance with deployment flexibility.
Extended Network Reach
Converts copper Ethernet to fiber optic, supporting distances up to 20 km to overcome the limitations of twisted pair cabling.
- Eliminates copper distance constraints
- Maintains signal integrity over long runs
Simplified Installation
Rail-mountable design with included mounting kit enables quick integration into standard racks or enclosures.
- No tools required for mounting
- Compact footprint saves space
Cost-Effective Fiber Migration
Leverages existing multi-mode fiber infrastructure with ST connectors, avoiding the need for complete network overhauls.
- Uses common fiber types
- Preserves investment in cabling
Deployment / Use Cases
The LMC270A-MM-ST is suited for environments where extending network segments or integrating fiber optic backbones is necessary. Its conversion capabilities make it a versatile component in mixed-media networks.
Typical applications include connecting copper-based edge devices to fiber optic backbones in office buildings, linking network switches across floors or buildings in campus settings, and integrating industrial equipment into fiber networks for improved noise immunity and distance. The rail-mount option is particularly useful in data centers or telecom closets where organized, high-density installations are required.
Office Network Extension
Connect workstations or switches in remote offices to a central fiber backbone, ensuring reliable Gigabit connectivity over extended distances.
Industrial Connectivity
Integrate machinery or sensors using copper interfaces into fiber optic networks for enhanced durability and electromagnetic interference protection.
Physical Profile
The converter features a slim, rail-mountable enclosure that fits standard DIN rails or similar mounting systems. Its compact dimensions and lightweight construction facilitate installation in tight spaces, such as network racks or control panels. The design prioritizes functionality and durability, with a form factor that supports both standalone and grouped deployments in professional environments.
- Width
- 1" (25.40 mm)
- Depth
- 2.80" (71.12 mm)
- Height
- 4.30" (109.22 mm)
- Weight
- 226.8 g
What's in the Box
The package includes all necessary components for immediate deployment.
Package contents include LMC270A-MM-ST Transceiver/Media Converter Mounting Kit, LMC270A-MM-ST Transceiver/Media Converter. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Converts 10/100/1000Base-TX copper Ethernet to 1000Base-FX fiber optic
- Supports multi-mode fiber with ST connectors for distances up to 20 km
- Features one RJ-45 port and one duplex ST port for flexible connectivity
- Rail-mountable design with included mounting kit for easy installation
- Compact dimensions of 4.30" x 1" x 2.80" (109.22 mm x 25.40 mm x 71.12 mm)
- Lightweight at 226.8 grams for space-efficient deployments
- TAA compliant and environmentally friendly
- Backed by a 1-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LMC270A-MM-ST |
| Brand Name | Black Box |
| Product Model | LMC270A-MM-ST |
| Product Name | LMC270A-MM-ST Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Number of ST Ports | 1 |
| ST Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Maximum Distance Supported | 20 km |
| Network & Communication | |
| Ethernet Technology | Ethernet,Fast Ethernet,Gigabit Ethernet |
| Network Technology | 10/100Base-TX,1000Base-FX |
| Physical Characteristics | |
| Form Factor | Rail-mountable |
| Height | 4.30" (109.22 mm) |
| Width | 1" (25.40 mm) |
| Depth | 2.80" (71.12 mm) |
| Weight (Approximate) | 226.8 g |
| Miscellaneous | |
| Package Contents | LMC270A-MM-ST Transceiver/Media Converter Mounting Kit |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What does this media converter do?
The Black Box LMC270A-MM-ST converts 10/100/1000Base-TX Ethernet signals from copper twisted pair cabling to 1000Base-FX signals over multi-mode fiber optic cable. This allows you to extend network segments beyond the 100-meter limit of copper, supporting distances up to 20 kilometers while maintaining Gigabit Ethernet performance.
What types of connectors does it have?
This converter has one RJ-45 port for copper Ethernet connections and one duplex ST port for fiber optic connections. The ST port uses standard ST connectors for multi-mode fiber, providing a reliable optical interface commonly used in network installations.
What is the maximum distance supported?
The converter supports a maximum distance of 20 kilometers over multi-mode fiber optic cable. This extends far beyond the typical 100-meter limit of copper cabling, making it suitable for connecting network segments across buildings or large campuses.
How is this unit installed?
The LMC270A-MM-ST is designed for rail mounting, with an included mounting kit that allows installation on standard DIN rails or similar mounting systems. Its compact size and lightweight design make it easy to integrate into network racks, enclosures, or control panels without requiring extensive tools or space.
What types of fiber does it support?
This converter supports multi-mode fiber optic cable with ST connectors. It is compatible with common multi-mode fiber types used for short to medium-distance runs, providing a cost-effective solution for integrating fiber into existing networks without needing single-mode infrastructure.
What is included in the package?
The package includes the LMC270A-MM-ST transceiver/media converter unit and a mounting kit. The mounting kit contains all necessary hardware for rail installation, ensuring you have everything needed for immediate deployment in your network environment.
