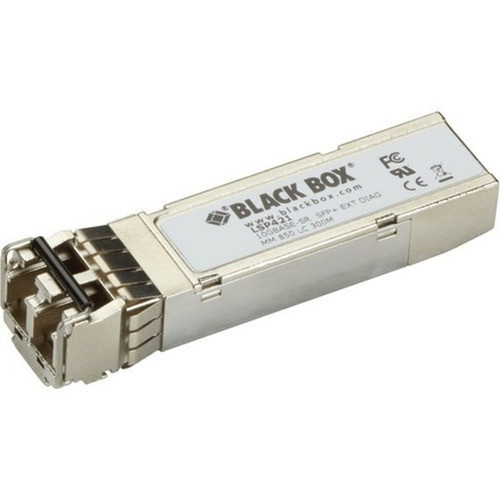

Black Box LSP421 SFP+ Module - 10GBase-X - LC - 850nm - Multi-mode
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Dynamic Fiber Conversion System, 10-GbE SFP+ to SFPt, 2-Slot Chassis (LMC11012A)
- Dynamic Fiber Conversion System, 10-GbE SFP+ to SFP+, 2-Slot Modular Plug-in (LMC11012C)
- Dynamic Fiber Conversion System, 10-GbE SFP+ to XFP, 2-Slot Chassis (LMC11022A)
- Dynamic Fiber Conversion System, 10-GbE SFP+ to XFP, 2-Slot Modular Plug-in (LMC11022C)
Application/Usage: Data Networking,Optical Network
Total Number of Ports: 1
Connector Type: LC
Interfaces/Ports Details: 1 x LC 10GBase-X Network
Media Type Supported: Optical Fiber
Fiber Optic Cable Wavelength: 850 nm
Fiber Mode Supported: Multi-mode
Ethernet Technology: 10 Gigabit Ethernet
Network Technology: 10GBase-LR
Maximum Distance Supported: 0.30 km (0.19 Mile)
Maximum Data Transfer Rate: 10 Gbit/s
Form Factor: Hot-swappable
Height: 2.20" (55.88 mm)
Width: 0.60" (15.24 mm)
Depth: 0.50" (12.70 mm)
Weight (Approximate): 0.58 oz (16.33 g)
Compatibility:
Black Box Corporation
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 1 Year
- With 10GBase-LR technology, enjoy up to 10Gbps data transfer rate over optical fiber cable
- Enjoy flexibility and scalability with data transfer rate of up to 10 Gbps with 10 Gigabit Ethernet technology
- Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
[custom-specifications]
| Specifications | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LSP421 |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Series | LSP400 |
| Product Model | LSP421 |
| Product Name | LSP421 SFP+ Module |
| Product Type | SFP+ |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 10GBase-X Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Optic Cable Wavelength | 850 nm |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-LR |
| Maximum Distance Supported | 0.30 km (0.19 Mile) |
| Maximum Data Transfer Rate | 10 Gbit/s |
| Physical Characteristics | |
| Form Factor | Hot-swappable |
| Height | 2.20" (55.88 mm) |
| Width | 0.60" (15.24 mm) |
| Depth | 0.50" (12.70 mm) |
| Weight (Approximate) | 0.58 oz (16.33 g) |
| Miscellaneous | |
| Compatibility | Black Box Corporation
|
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
