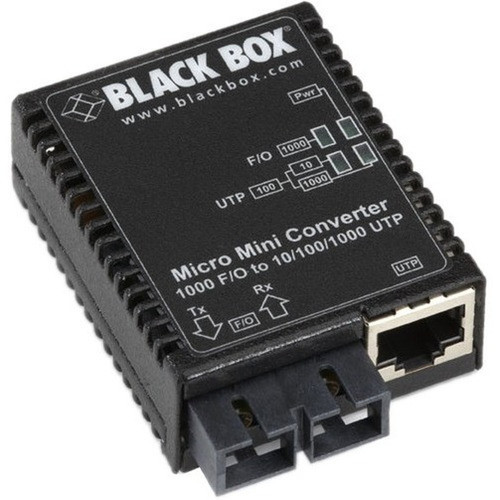

Black Box LMC4002A Micro Mini Media Converter - 1 x RJ-45 to 1 x SC Duplex - Gigabit Ethernet - Multi-mode 850 nm - 0. 5 km - USB-Powered - Wall
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates with Gigabit Ethernet technology, supporting network standards including 10/100/1000Base-TX for copper and 1000Base-X for fiber. It features one RJ-45 port for twisted-pair connections and one SC duplex port for multi-mode fiber, ensuring compatibility with common enterprise and data center cabling infrastructures.
The device is optimized for multi-mode fiber with an 850 nm wavelength, which is standard for short to medium-distance applications. It handles a maximum distance of 0.5 km, providing flexibility for extending network segments beyond typical copper limitations. The compact design measures 1.75" wide by 2.25" deep by 0.84" high, weighing approximately 2.5 ounces for easy deployment.
Key Product Advantages
The LMC4002A delivers reliable fiber conversion in a minimal footprint, reducing clutter and simplifying network upgrades. Its plug-and-play design requires no configuration, making it accessible for IT staff of all skill levels.
Space-Saving Design
The Micro Mini form factor occupies minimal rack or wall space, perfect for dense installations where every inch counts.
- Wall-mountable for clean cable routing
- Compact dimensions: 1.75" W x 2.25" D x 0.84" H
Simplified Power
USB-powered via included AC adapter reduces power supply complexity and enhances deployment flexibility in varied environments.
Compliance Ready
TAA compliant and manufactured in the United States, meeting requirements for government and institutional procurement.
Deployment / Use Cases
This media converter is ideal for extending Gigabit Ethernet networks over fiber where copper distances are insufficient. Common applications include connecting buildings within a campus, linking floors in multi-story offices, or integrating fiber backbones into existing copper-based LANs.
In industrial settings, it can bridge equipment in harsh environments where fiber's immunity to EMI is critical. For small offices or retail spaces, the wall-mountable design allows discreet installation behind desks or in wiring closets, maintaining a professional appearance while expanding network reach.
Building-to-Building Links
Extend network segments between separate structures up to 0.5 km apart using cost-effective multi-mode fiber.
Data Center Edge Connectivity
Integrate fiber uplinks into server rooms or network cabinets where space is limited and organization is key.
Physical Profile
The converter features a durable, compact enclosure designed for wall mounting with included hardware. Its small size (1.75" x 2.25" x 0.84") and light weight make it easy to install in tight spaces without sacrificing performance. The finish is professional and suitable for both visible and hidden installations.
- Width
- 1.75" (44.45 mm)
- Depth
- 2.25" (57.15 mm)
- Height
- 0.84" (21.34 mm)
- Weight
- 2.50 oz (70.87 g)
- Length
- 850 nm
What's in the Box
The package includes all necessary components for immediate deployment.
Highlights
- Converts Gigabit Ethernet between RJ-45 twisted pair and SC duplex multi-mode fiber.
- Supports distances up to 0.5 km (0.31 miles) with 850 nm wavelength fiber.
- Compact Micro Mini design with wall-mountable form factor for space-efficient installations.
- USB-powered via included AC adapter for simplified power management.
- Plug-and-play operation with no configuration required for quick deployment.
- TAA compliant and manufactured in the United States for government procurement.
- Environmentally friendly design with a 2-year limited warranty.
- Weighs only 2.5 ounces for easy handling and mounting.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LMC4002A |
| Brand Name | Black Box |
| Product Line | Micro Mini |
| Product Model | LMC4002A |
| Product Name | Micro Mini LMC4002A Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | Yes |
| Management Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Maximum Distance Supported | 0.50 km (0.31 Mile) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-TX,1000Base-X |
| Power Description | |
| Power Source | AC Adapter |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Height | 0.84" (21.34 mm) |
| Width | 1.75" (44.45 mm) |
| Depth | 2.25" (57.15 mm) |
| Weight (Approximate) | 2.50 oz (70.87 g) |
| Miscellaneous | |
| Package Contents | Micro Mini LMC4002A Transceiver/Media Converter Power Adapter |
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What types of connections does this media converter support?
The LMC4002A supports one RJ-45 port for standard twisted-pair Ethernet (copper) and one SC duplex port for multi-mode optical fiber. It converts between these media types, enabling seamless integration of fiber segments into copper networks.
What is the maximum distance supported over fiber?
This converter supports a maximum distance of 0.5 kilometers (0.31 miles) when using multi-mode fiber with an 850 nm wavelength. This extends network reach beyond typical copper limitations for applications like campus links or building interconnects.
How is the device powered?
The converter is powered via a USB-connected AC adapter included in the package. This USB-powered design simplifies installation by eliminating bulky external power supplies and offers flexibility in placement near standard outlets.
Can this converter be wall-mounted?
Yes, the LMC4002A features a wall-mountable form factor. Its compact dimensions (1.75" wide x 2.25" deep x 0.84" high) and light weight make it easy to mount in network closets, telecom rooms, or behind equipment for organized cable management.
What fiber mode and wavelength are compatible?
This converter is compatible with multi-mode fiber using an 850 nm wavelength. It does not support single-mode fiber. Ensure your fiber cabling matches these specifications for optimal performance over the supported 0.5 km distance.
Is this product compliant with government procurement standards?
Yes, the LMC4002A is TAA (Trade Agreements Act) compliant and manufactured in the United States. This makes it suitable for government, educational, and institutional purchases where compliance with sourcing regulations is required.
