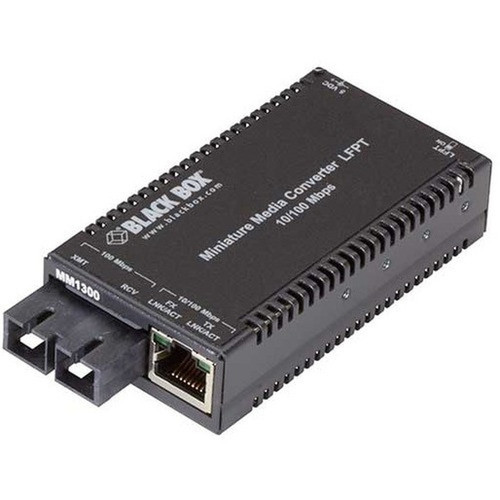

Black Box LHC014A-R4 MultiPower Miniature Transceiver/Media Converter - 1x RJ-45 to 2x SC Duplex - Multi-mode Fiber - 2 km - USB Powered
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This transceiver/media converter operates at the physical layer to bridge between twisted pair copper and optical fiber media. It supports 100Base-T and 100Base-X network technologies, delivering Fast Ethernet performance at up to 100 Mbps data transfer rates. The device handles signal conversion between electrical signals on the RJ-45 port and optical signals on the SC duplex ports.
The converter maintains signal integrity across supported media types, with a maximum transmission distance of 2 kilometers over multi-mode fiber optic cable. This extended reach capability makes it suitable for connecting network segments across buildings or throughout large facilities where copper cabling would be impractical or exceed distance limitations.
Key Product Advantages
The MultiPower Miniature converter combines extended distance capability with deployment flexibility in a compact package. Its miniature design doesn't sacrifice functionality, providing full media conversion between copper and fiber while supporting multiple installation methods.
Extended Network Reach
Extend network connections up to 2 kilometers using multi-mode fiber optic cabling, overcoming the distance limitations of traditional copper Ethernet.
- 2 km maximum distance
- Multi-mode fiber support
- 1300 nm wavelength operation
Flexible Deployment Options
Install the converter in rack-mounted, standalone, or DIN rail configurations to match your infrastructure requirements and available space.
- Rack-mountable design
- Standalone placement
- DIN rail compatible
Simplified Power Management
Operate with an external 100-240 VAC, 50-60 Hz power adapter that supports global voltage standards for international deployment.
- Universal voltage input
- External power adapter
- Global compatibility
Deployment / Use Cases
This media converter serves as a practical solution for network infrastructure expansion and media conversion requirements. It enables organizations to leverage existing fiber optic cabling while maintaining connectivity to copper-based network equipment.
Common deployment scenarios include connecting network switches in separate buildings across a campus, extending network connections in industrial environments where electrical interference is a concern, and bridging between different media types in data center environments. The compact size makes it particularly suitable for space-constrained installations such as network closets, control panels, or equipment racks where traditional larger converters would be impractical.
Building-to-Building Connectivity
Connect network equipment between separate structures using existing fiber optic infrastructure while maintaining copper connectivity at each endpoint.
Industrial Network Extension
Extend network connections in manufacturing or industrial environments where fiber optic cabling provides immunity to electrical interference.
Physical Profile
The miniature form factor measures 1" (25.40 mm) in height, 2" (50.80 mm) in width, and 4.70" (119.38 mm) in depth, with an approximate weight of 1.20 lb (544.31 g). This compact design enables installation in space-constrained environments while maintaining full media conversion functionality. The converter features a durable construction suitable for various deployment scenarios, from office environments to industrial settings.
- Width
- 2" (50.80 mm)
- Depth
- 4.70" (119.38 mm)
- Height
- 1" (25.40 mm)
- Weight
- 1.20 lb (544.31 g)
- Length
- 1300 nm
What's in the Box
The package includes all necessary components for immediate deployment of the media converter in your network environment.
Highlights
- Converts between RJ-45 copper Ethernet and SC duplex fiber optic connections
- Supports multi-mode fiber with 50/125 µm and 62.5/125 µm specifications
- Extends network connections up to 2 kilometers (1.24 miles)
- Provides Fast Ethernet performance at up to 100 Mbps data transfer rates
- Compact miniature design measures just 1" x 2" x 4.70"
- Multiple mounting options: rack-mountable, standalone, or DIN rail
- Powered by external 100-240 VAC, 50-60 Hz adapter
- TAA compliant for government and educational procurement
- 6-year limited warranty for long-term reliability
- Environmentally compliant with WEEE and RoHS standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LHC014A-R4 |
| Brand Name | Black Box |
| Product Line | Multipower Miniature |
| Product Name | MultiPower Miniature Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 3 |
| Network (RJ-45) | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 2 |
| SC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1300 nm |
| Maximum Distance Supported | 2 km (1.24 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm,62.5/125 µm |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-T,100Base-X |
| Power Description | |
| Power Source | Power Adapter |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Standalone,DIN Rail Mountable |
| Height | 1" (25.40 mm) |
| Width | 2" (50.80 mm) |
| Depth | 4.70" (119.38 mm) |
| Weight (Approximate) | 1.20 lb (544.31 g) |
| Miscellaneous | |
| Package Contents | MultiPower Miniature Transceiver/Media Converter External 100-240-VAC, 50-60-Hz Adapter |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 6 Year |
FAQ
What types of connections does this media converter support?

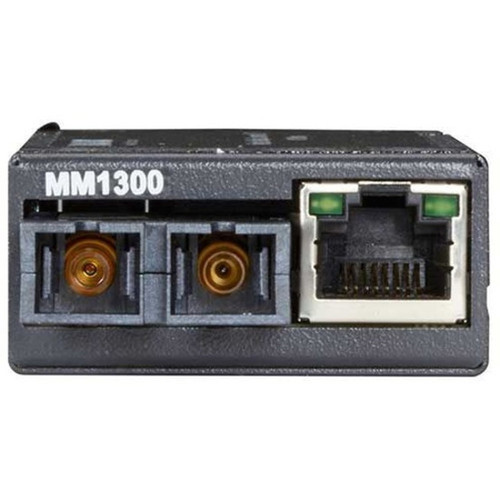

This converter supports one RJ-45 port for copper Ethernet connections and two SC duplex ports for fiber optic connections. It converts signals between twisted pair copper cabling and multi-mode fiber optic cabling, enabling network extension across different media types.
What is the maximum distance supported over fiber optic cable?
The converter supports transmission distances up to 2 kilometers (1.24 miles) when using multi-mode fiber optic cable. This extended reach capability allows network connections between buildings or across large facilities where copper Ethernet cabling would exceed its distance limitations.
What fiber specifications are compatible with this converter?
This converter is compatible with multi-mode fiber optic cable featuring 50/125 µm and 62.5/125 µm core/cladding specifications. It operates at a 1300 nm wavelength, which is standard for multi-mode fiber applications in enterprise and industrial networking environments.
How is this media converter powered?
The converter is powered by an external 100-240 VAC, 50-60 Hz power adapter included in the package. This universal voltage input supports deployment in various regions and environments, with the external adapter providing flexible placement options for the converter unit itself.
What mounting options are available for installation?
This converter offers three mounting options: rack-mountable for standard equipment racks, standalone for placement on flat surfaces, and DIN rail mountable for industrial control panel installations. The compact 1" x 2" x 4.70" dimensions allow installation in space-constrained environments.
What network performance does this converter provide?
The converter supports Fast Ethernet technology with 100Base-T and 100Base-X network standards, delivering data transfer rates up to 100 Mbps. It maintains this performance across both copper and fiber connections, ensuring consistent network throughput for connected devices.
