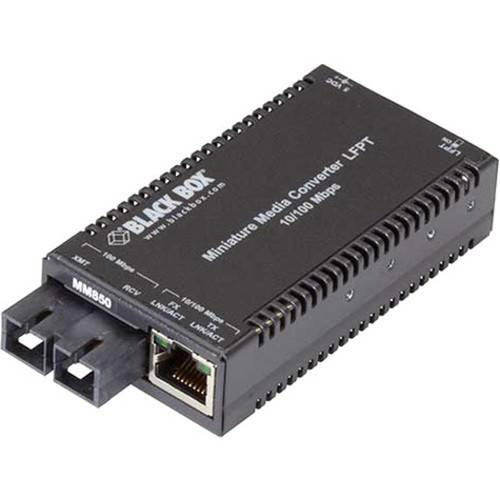

Black Box LHC041A-R4 MultiPower Miniature Transceiver Media Converter - Fast Ethernet - SC Duplex Port - Multi-mode Fiber - 0. 5 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Technically, this media converter operates at Fast Ethernet speeds, supporting both 10/100Base-T and 100Base-SX network technologies. It handles multi-mode fiber with a wavelength of 850 nm and is compatible with 50/125 µm and 62.5/125 µm fiber optic cable core/cladding specifications. The SC duplex port ensures secure fiber connections, while the RJ-45 port accommodates standard Ethernet cables.
The converter's design includes robust signal integrity features to minimize data loss during conversion, making it suitable for environments where electrical interference or distance challenges exist. It supports full-duplex operation for efficient bidirectional data flow, maintaining network performance across the copper-to-fiber transition.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This media converter offers several advantages for network expansion and fiber integration. Its ability to extend Ethernet connections up to 0.5 km over fiber optic cable eliminates distance limitations of copper cabling, providing greater flexibility in network layout. The compact size and dual form factor support both desktop and rack-mountable installations, adapting to various deployment scenarios without requiring extensive space.
Extended Reach
Converts signals to multi-mode fiber, supporting distances up to 0.5 km for reliable long-range connectivity beyond copper limits.
- 0.5 km maximum distance
- Multi-mode fiber support
- Reduces signal degradation
Flexible Deployment
Desktop or rack-mountable design allows installation in server rooms, closets, or industrial settings, with a small footprint for efficient use of space.
- Dual form factor
- Compact dimensions
- Easy integration
Deployment / Use Cases
This media converter is ideal for scenarios where network segments need to span longer distances or traverse environments with high electromagnetic interference. Common use cases include connecting buildings within a campus, extending network reach in manufacturing plants, or integrating fiber backbones into existing copper-based infrastructure.
In enterprise settings, it can link switches or routers across different floors or wings using fiber optic cable, ensuring stable connectivity for data-intensive applications. For industrial applications, the converter's robust design supports operation in areas where copper cables might suffer from interference, maintaining network reliability in challenging conditions.
Building-to-Building Links
Connect network equipment between separate structures using fiber optic cable for secure, high-speed data transfer over distances up to 0.5 km.
Industrial Network Expansion
Extend Ethernet networks in factories or warehouses where electrical noise or long runs require fiber optic media for consistent performance.
Physical Profile
The converter measures 1" (25.40 mm) in height, 2" (50.80 mm) in width, and 4.70" (119.38 mm) in depth, with a weight of approximately 1.20 lb (544.31 g). Its small footprint makes it suitable for tight spaces, while the rack-mountable option allows for organized installation in standard racks. The desktop form factor provides flexibility for temporary or standalone setups, and the sturdy construction ensures durability in various environments.
- Width
- 2" (50.80 mm)
- Depth
- 4.70" (119.38 mm)
- Height
- 1" (25.40 mm)
- Weight
- 1.20 lb (544.31 g)
- Length
- 850 nm
What's in the Box
The package includes the MultiPower Miniature Transceiver/Media Converter and an AC power supply, providing all necessary components for immediate deployment.
Highlights
- Converts Fast Ethernet between twisted pair and multi-mode fiber optic cable.
- Supports distances up to 0.5 km (0.31 mile) over fiber.

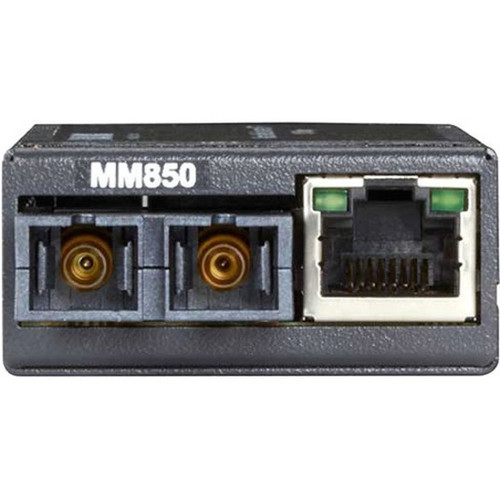

- Features one RJ-45 port and one SC duplex port for flexible connections.
- Compact design with desktop or rack-mountable form factor.
- Operates at 10/100Base-T and 100Base-SX network speeds.
- Uses 850 nm wavelength for multi-mode fiber compatibility.
- Includes AC power supply for easy setup.
- Backed by a 6-year Double Diamond™ warranty for added protection.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LHC041A-R4 |
| Brand Name | Black Box |
| Product Line | Multipower Miniature |
| Product Name | MultiPower Miniature Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Maximum Distance Supported | 0.50 km (0.31 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm,62.5/125 µm |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-T,100Base-SX |
| Power Description | |
| Power Source | Power Supply |
| Physical Characteristics | |
| Form Factor | Desktop,Rack-mountable |
| Height | 1" (25.40 mm) |
| Width | 2" (50.80 mm) |
| Depth | 4.70" (119.38 mm) |
| Weight (Approximate) | 1.20 lb (544.31 g) |
| Miscellaneous | |
| Package Contents | MultiPower Miniature Transceiver/Media Converter AC Power Supply |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 6 Year |
| Additional Warranty Information | Double Diamond™ Warranty (Standard) Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services. The Double Diamond Warranty is our warranty that protects your Black Box® brand products from accidental damage, including drops, water, and power surges. The FST ETH MED CONV 10/100Mbps COP to 100Mbps MM FBR 850nm 0.5km SC comes with a standard 6 Year Double Diamond™ Warranty (Standard) warranty already included. During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE! |
User Manual
FAQ
What does this media converter do?
This converter bridges copper and fiber optic networks by converting Fast Ethernet signals between twisted pair cabling (via an RJ-45 port) and multi-mode fiber optic cable (via an SC duplex port). It enables data transmission over longer distances up to 0.5 km where standard copper cables are limited, supporting network expansion and improved signal integrity in environments with interference.
What types of fiber optic cable are compatible?
The converter is compatible with multi-mode fiber optic cables that have core/cladding specifications of 50/125 µm or 62.5/125 µm. It operates at a wavelength of 850 nm, which is standard for multi-mode fiber applications, ensuring reliable performance for short to medium-distance network links within its 0.5 km range.
How is this converter powered?
It is powered by an included AC power supply, which plugs into a standard electrical outlet. This external power method provides stable operation and simplifies installation, as no additional power adapters are required. The converter does not support Power over Ethernet (PoE) or other alternative power sources.
Can this converter be mounted in a rack?
Yes, it supports both desktop and rack-mountable form factors. For rack mounting, it can be installed in standard equipment racks to organize cables and save space in server rooms or network closets. The compact dimensions make it suitable for high-density installations where multiple units may be deployed.
What is the maximum data transfer rate?
The converter supports Fast Ethernet, which provides data transfer rates up to 100 Mbps. It is compatible with 10/100Base-T for twisted pair connections and 100Base-SX for fiber optic connections, ensuring consistent speed across both media types without bottlenecks in typical enterprise or industrial network scenarios.
What warranty coverage is included?
It comes with a 6-year Double Diamond™ warranty from Black Box Network Services. This warranty covers repairs or replacements for accidental damage, including drops, water exposure, and power surges, at no charge within one week of receipt during the warranty period. It provides added protection beyond standard limited warranties for peace of mind in critical deployments.
