Bosch Surveillance Control Panel For Tilt Zoom And Pan Camera With Serial Network Connectivity NetworkSerial RJ-45 KBD-DIGITAL
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features

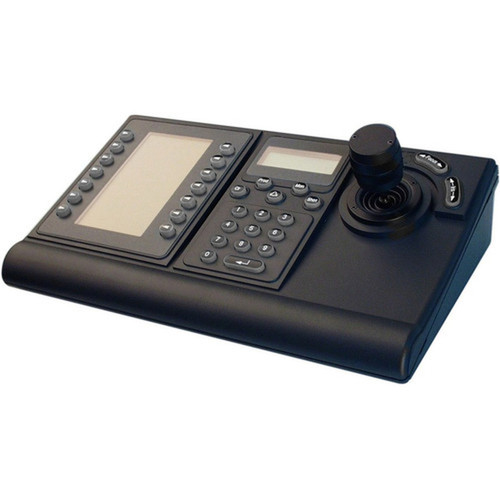

- KBD-DIGITAL Surveillance Control Panel
- 3m Cable
Marketing Information:
The IntuiKey Series keyboards are full function, multipurpose keyboards used for system control and programming. The IntuiKey includes an integral variable speed pan/tilt/zoom (PTZ) joystick and a splash resistant design. An optional rack mount kit allows the IntuiKey to be mounted in a standard EIA 48 cm (19 in.) rack.
Functions
The IntuiKey Digital Keyboard is available in two models, KBD-Universal and KBD-Digital. The Universal version can be connected to an Allegiant switcher and either Divar Digital Video Recorders or System4 Multiplexers at the same time. This capability eliminates the need for multiple keyboards. The KBDDigital version supports Divar Digital Video Recorders and System4 Multiplexers. Both types can be used with the Bosch VMS and with the VIDOS video management systems
The IntuiKey accepts both the standard Allegiant RS-485 Keyboard protocol and the Allegiant RS-232 protocol. The Allegiant RS-232 Keyboard protocol is well suited when communicating to a remote KBDUniversal over an IP network.
The IntuiKey can also operate in a Terminal mode using a special RS-232 protocol. This mode allows third-party integrators and internal developers to use the IntuiKey as a customizable user interface.1 The main Allegiant switcher, the Divar Digital Video Recorder, or the System4 Multiplexer provides power when used in a local configuration. At remote distances, an optional auxiliary power supply (sold separately) provides power.
The keyboard is connected to a system using a supplied 3 m (10 ft) cable. Simply attach the keyboard and the system is operational. No additional programming is required.
Control Type: Tilt,Zoom,Pan
Features: On Screen Display
Serial: Yes
Network (RJ-45): Yes
Product Color: Charcoal
Height: 2.95" (75 mm)
Width: 12.87" (327 mm)
Depth: 7.48" (190 mm)
Weight (Approximate): 1.10 kg
Package Contents:
Country of Origin: China
[custom-specifications]
| Specifications | |
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | KBDDIGITAL |
| Manufacturer Website Address | http://www.bosch.com |
| Brand Name | Bosch |
| Product Model | KBD-DIGITAL |
| Product Name | KBD-DIGITAL Surveillance Control Panel |
| Product Type | Surveillance Control Panel |
| Technical Information | |
| Control Type | Tilt,Zoom,Pan |
| Features | On Screen Display |
| Interfaces/Ports | |
| Serial | Yes |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Product Color | Charcoal |
| Height | 2.95" (75 mm) |
| Width | 12.87" (327 mm) |
| Depth | 7.48" (190 mm) |
| Weight (Approximate) | 1.10 kg |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
