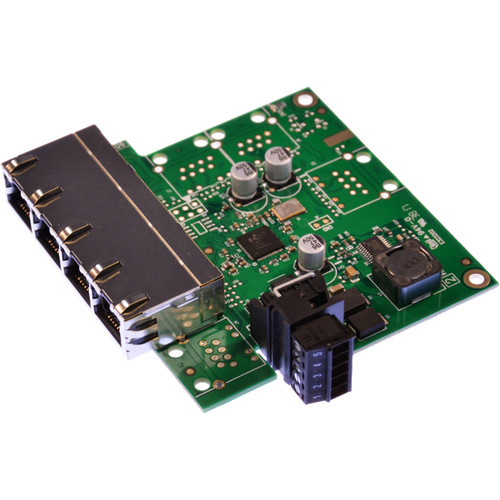

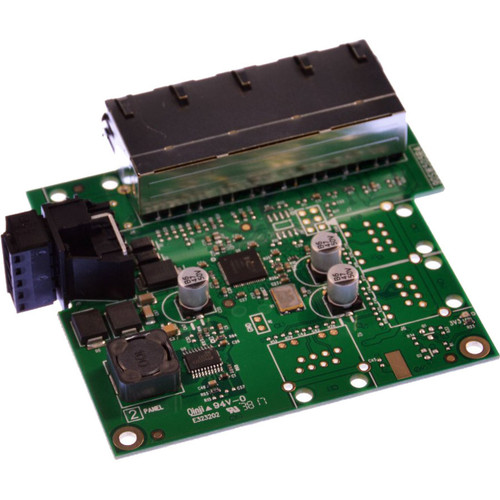

Brainboxes SW-104 Industrial Embeddable 4-Port Fast Ethernet Switch - Layer 2 Unmanaged - USB/Power Supply - Lifetime Warranty
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built around a straightforward Layer 2 switching architecture, the SW-104 operates as an unmanaged device, forwarding traffic based on MAC addresses without requiring administrative intervention. This plug-and-play approach reduces setup time and eliminates ongoing management costs, making it a cost-effective choice for small networks.
The switch leverages Fast Ethernet (10/100Base-T) technology, providing data transfer rates up to 100 Mbps per port. It supports standard twisted-pair cabling with a reach of up to 100 meters, ensuring compatibility with existing copper infrastructure. Power flexibility is achieved through dual input options: a standard power supply or USB power, enhancing deployment versatility in various industrial and commercial settings.
This section brings together practical product details such as Total Number of Network Ports, Uplink Port, Modular, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The SW-104 combines industrial ruggedness with effortless deployment, offering a zero-configuration networking solution that reduces both initial and long-term operational expenses. Its embeddable form factor allows direct integration into equipment enclosures or tight spaces where standard switches cannot fit.
Compact and Embeddable
With dimensions of 3.74" x 3.35" x 0.79" and a weight of just 2.15 ounces, this switch can be mounted directly into panels, machines, or enclosures, saving valuable space in industrial and commercial installations.
- Minimal footprint for embedded applications
- Lightweight design for easy integration
Dual Power Options
The switch accepts power from either a standard external power supply or a USB port, providing flexibility in power sourcing and simplifying deployment in locations where AC outlets are limited or unavailable.
- USB power for portable or low-power setups
- Standard power supply for stable operation
Deployment / Use Cases
This switch is engineered for scenarios where simplicity, space efficiency, and reliability are paramount. Its unmanaged nature and industrial design make it suitable for environments where IT expertise is limited or where networking equipment must endure harsh conditions.
Common applications include industrial automation control panels, where it connects PLCs, HMIs, and sensors; retail point-of-sale systems, linking registers, printers, and payment terminals; and digital signage networks, distributing content to multiple displays from a single source. The embeddable form factor also suits kiosks, medical devices, and transportation systems where internal networking is required without external switch visibility.
Industrial Automation
Integrate directly into machinery or control cabinets to network sensors, actuators, and controllers without occupying external rack space or requiring managed switch expertise.
Retail and Hospitality
Deploy behind counters or in enclosed spaces to connect POS terminals, receipt printers, and customer displays, ensuring reliable wired connectivity in high-traffic environments.
Physical Profile
The SW-104 features a compact, low-profile enclosure measuring 3.74 inches wide, 3.35 inches deep, and 0.79 inches high, with a weight of approximately 2.15 ounces. This small size allows for direct mounting within equipment chassis, under desks, or in other confined areas. The industrial-grade construction ensures durability in environments with vibration, dust, or temperature fluctuations, while the absence of fans or moving parts contributes to silent operation and reduced maintenance needs.
- Width
- 3.74" (95 mm)
- Depth
- 3.35" (85 mm)
- Height
- 0.79" (20 mm)
- Weight
- 2.15 oz (61 g)
What's in the Box
The package includes the Industrial Embeddable 4 Port Ethernet Switch and a Quick Start Guide, providing everything needed for immediate deployment. No additional cables or power adapters are included unless specified separately.
Highlights
- 4 Fast Ethernet ports for connecting PCs, printers, laptops, and peripherals
- Unmanaged Layer 2 switch with plug-and-play operation, no configuration required
- Compact and embeddable design for space-constrained industrial or commercial installations
- Dual power options: USB or external power supply for flexible deployment
- Supports twisted-pair cabling with data transfer up to 100 meters
- Industrial-grade construction for reliable performance in harsh environments
- Lifetime limited warranty for long-term peace of mind
- Environmentally compliant with WEEE and RoHS directives
- TAA compliant for use in government and regulated procurement
- Manufactured in the United Kingdom with high-quality standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | SW-104 |
| Brand Name | Brainboxes |
| Product Model | SW-104 |
| Product Name | Industrial Embeddable 4 Port Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 4 |
| Uplink Port | No |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 4 x Fast Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Power Source | USB,Power Supply |
| Physical Characteristics | |
| Height | 0.79" (20 mm) |
| Width | 3.74" (95 mm) |
| Depth | 3.35" (85 mm) |
| Weight (Approximate) | 2.15 oz (61 g) |
| Miscellaneous | |
| Package Contents | Industrial Embeddable 4 Port Ethernet Switch Quick Start Guide |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Country of Origin | United Kingdom |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
How many network ports does the Brainboxes SW-104 switch have?
The Brainboxes SW-104 switch features 4 Fast Ethernet ports. These ports support 10/100Base-T networking, providing data transfer speeds up to 100 Mbps per port for connecting devices like computers, printers, and peripherals in a local area network.
Is this switch managed or unmanaged?
This is an unmanaged switch. It operates at Layer 2 without requiring configuration, management interfaces, or administrative oversight. This plug-and-play design simplifies deployment and reduces costs, making it ideal for basic networking needs where advanced features like VLANs or QoS are not required.
What power options are available for the SW-104 switch?
The SW-104 switch offers dual power options: it can be powered by a standard external power supply or via a USB port. This flexibility allows deployment in locations where AC outlets are limited, such as in portable setups or embedded within equipment using USB power sources.
What type of cables does this switch support?
The switch supports twisted-pair Ethernet cables, specifically 10/100Base-T compatible cabling. It can handle data transfer over distances up to 100 meters per port, using standard RJ45 connectors commonly found in office and industrial networking environments.
What are the dimensions and weight of the SW-104 switch?
The switch measures 3.74 inches in width, 3.35 inches in depth, and 0.79 inches in height (95 x 85 x 20 mm), with an approximate weight of 2.15 ounces (61 grams). This compact and lightweight design facilitates easy embedding into panels, enclosures, or tight spaces without adding significant bulk.
Does the SW-104 switch include a warranty?
Yes, the Brainboxes SW-104 switch comes with a lifetime limited warranty. This warranty covers defects in materials and workmanship for the product's lifetime, providing long-term reliability assurance for industrial and commercial deployments where continuous operation is critical.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is No, giving buyers a clearer picture of expected coverage after purchase.
What mounting, rack, or form-factor detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
